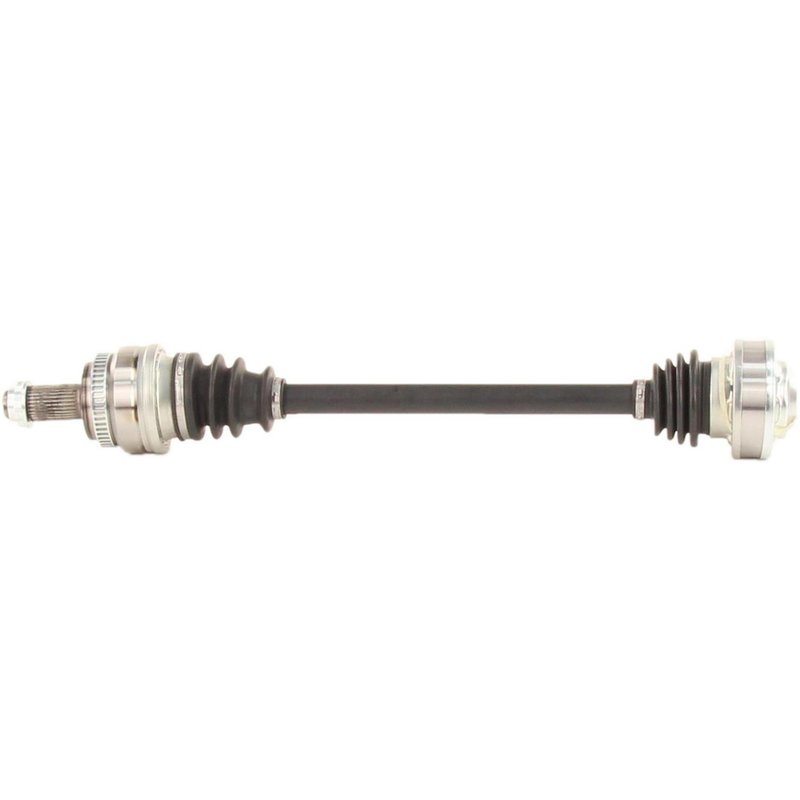

TrakMotive BM-8168 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-8168 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Window |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.63 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.61 |
| Axle Nut Length (mm) | 40.99 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M27*1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | 0.31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.17 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10*1.5 |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| New Or Remanufactured | New |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.93 |
| Overall Compressed Length (mm) | 684 |
| Product line | CV Axle Shaft |
| Fits | BMW · 4 vehicles |
New unit. Built as a fresh replacement CV axle shaft.
Bolt-on inboard joint. Simplifies installation with a direct bolt-on connection.
Neoprene boot material. Helps protect the axle from wear and contamination.
Cross-references TrakMotive BM-8168 and 33213420710 for the same application. See all 2.
BMW X3 Rear Right CV Axle Shaft
TrakMotive BM-8168 is a new CV axle shaft for the rear right position on select 2007-2010 BMW X3 models. It is built for direct replacement service on the BMW X3 drivetrain and axle application listed below.
Key Features
- Fits 2007-2010 BMW X3, rear right
- New CV axle shaft for driveline and axle service
- 48-tooth ABS ring with window-style tone ring
- ABS tone ring included
- Neoprene boot material
- 30 outboard splines
- 6-bolt inboard bolt-on joint design
- Overall compressed length: 26.93 in. (684 mm)
- Axle nut included with M27 x 1.5 thread, 35.5 mm hex size
Product Details
TrakMotive BM-8168 is part of the CV Axle Shaft line, built for axle replacement on the rear right side of the BMW X3. The assembly uses a conventional outboard joint, a bolt-on inboard connection, and a neoprene boot to support drivetrain service in the specified application. This part cross-references BMW 33213420710 for the same application.
Common Repair Uses
- Replacing a worn or noisy rear right CV axle on a BMW X3
- Addressing vibration during acceleration or turning
- Repairing torn axle boots that can lead to grease loss
- Restoring drivetrain engagement after spline or joint wear
- Servicing ABS-related axle applications with the included tone ring
Installation Notes
Verify rear right fitment before installation and confirm spline count, axle nut thread size, and ABS ring configuration against the original part. The inboard side uses a 6-bolt bolt-on connection with M10 x 1.5 thread and 8 mm Allen head bolts. Always follow BMW service procedures for axle removal, torque specification, and axle nut staking.
Quality Assurance
TrakMotive states that this CV axle shaft is manufactured by an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | BMW | X3 | Rear Right | CV Axle Shaft |
| 2009 | BMW | X3 | Rear Right | CV Axle Shaft |
| 2008 | BMW | X3 | Rear Right | CV Axle Shaft |
| 2007 | BMW | X3 | Rear Right | CV Axle Shaft |
