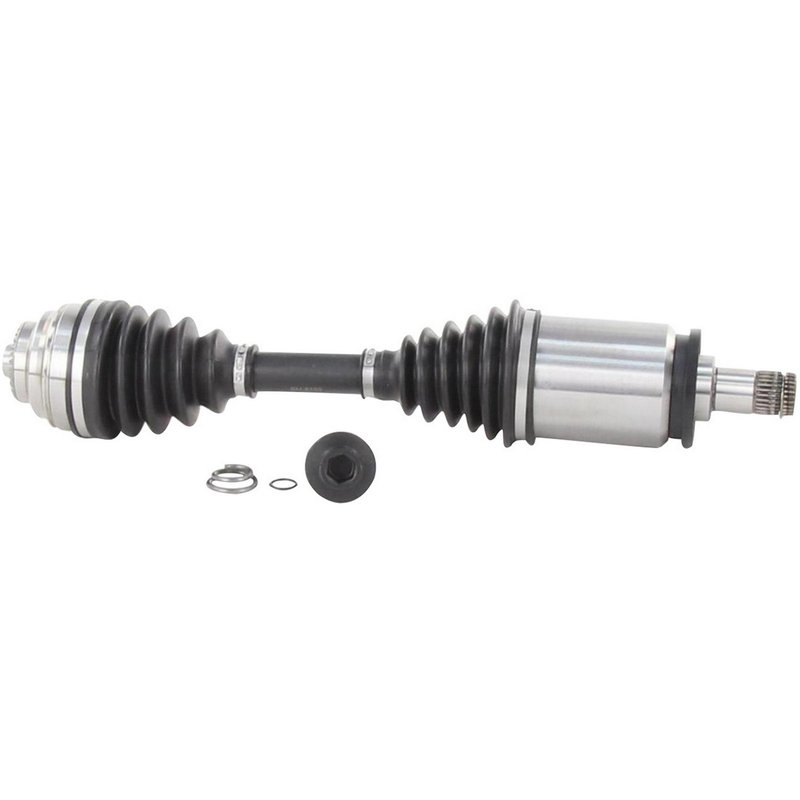

TrakMotive BM-8169 CV Axle Shaft - Front Left
| Brand | TrakMotive BM-8169 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 83 |
| Axle Bolt Thread Size | M16*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 19.69 |
| Overall Compressed Length (mm) | 500 |
| Product line | AAR CV Axle Shaft |
| Fits | BMW · 4 vehicles |
OE-style replacement. New CV axle shaft built for application-specific driveline service.
Neoprene boot. Flexible boot material helps maintain a sealed joint assembly.
Certified manufacturing. Produced by a company certified to ISO 9001:1007 and TS 16949:2009.
Cross-references TrakMotive BM-8169 and 31607605511 for the same application. See all 2.
BMW X1 CV Axle Shaft
This TrakMotive AAR CV axle shaft is a new driveline replacement for select BMW X1 applications. It is built with a neoprene boot, spline-style connections, and application-specific dimensions for a direct service replacement.
Key Features
- New CV axle shaft for driveline service
- Neoprene boot material for flexible sealing performance
- Male inboard joint with spline connection style
- Flat spline outboard joint with spline connection style
- 17 mm axle bolt hex size and M16 x 1.5 thread
- 500 mm overall compressed length
- TrakMotive AAR CV Axle Shaft line
Detailed Description
Part number BM-8169 is a TrakMotive CV axle shaft from the AAR CV Axle Shaft line. It uses 27 inboard splines and 31 outboard splines, with a one-bolt axle interface and no ABS tone ring included. The axle is specified for BMW X1 fitment and matches the listed front left application for 2012-2015 models. This part cross-references BMW 31607605511 for the same application.
For BMW X1 owners replacing a worn driveline component, BM-8169 provides the measured length and connection details needed for a proper service match. The AAR CV Axle Shaft line focuses on application-specific replacement geometry, making it a practical choice when the original axle shows wear, noise, or vibration.
What It Is Used For
- Clicking or popping during turns from worn CV joints
- Vibration caused by a damaged axle shaft
- Boot failure that leads to grease loss and joint wear
- Driveline noise from spline or joint wear
Installation Notes and Tips
Fits 2012-2015 BMW X1, front left. Verify axle bolt thread size, spline count, and compressed length before installation. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Confirm the vehicle’s original configuration against the listed fitment and notes before service. Part number BM-8169 should be matched to the application details during ordering and installation.
Quality Assurance
TrakMotive lists this axle under a Limited Lifetime Warranty and states that its manufacturing is certified to ISO 9001:1007 and TS 16949:2009 standards. Part number BM-8169 is built as a new replacement component for consistent service fitment.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | BMW | X1 | AWD | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | BMW | X1 | AWD | Front Left | Updated Design; AAR CV Axle Shaft |
| 2013 | BMW | X1 | AWD | Front Left | Updated Design; AAR CV Axle Shaft |
| 2012 | BMW | X1 | AWD | Front Left | Updated Design; AAR CV Axle Shaft |
