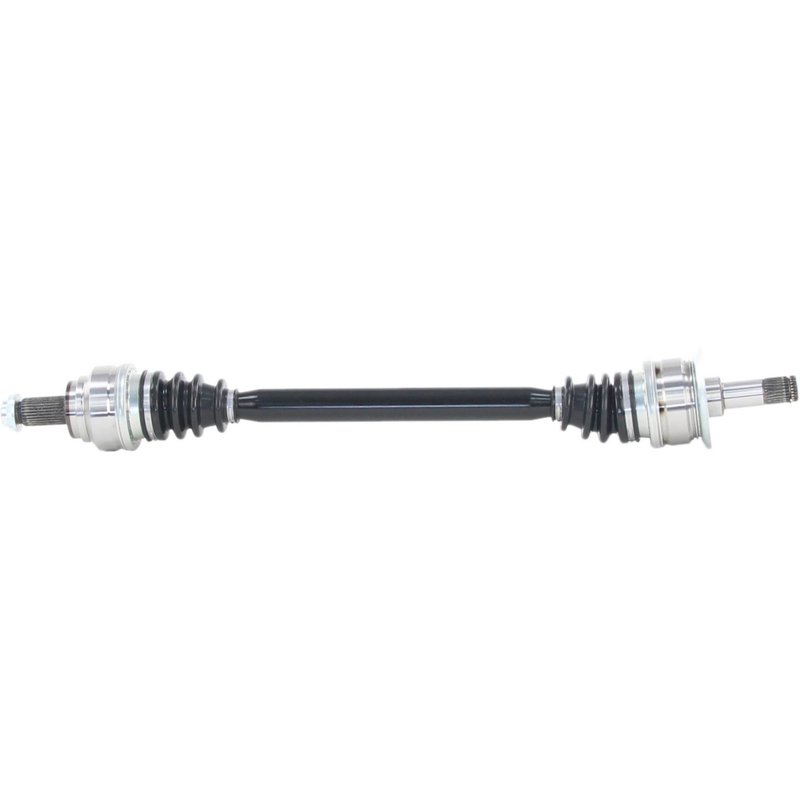

TrakMotive BM-8183 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-8183 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.17 |
| Overall Compressed Length (mm) | 817 |
| Overall Extended Length (in) | 35.31 |
| Overall Extended Length (mm) | 897 |
| Product line | CV Axle Shaft |
| Fits | BMW · 6 vehicles |
Premium grade. Built with neoprene boots for durable joint protection.
Spline connection. 27 and 30 spline ends provide a secure driveline interface.
Axle nut included. Comes ready with a hex, stake-locking nut.
Cross-references TrakMotive BM-8183, 33207581024 and 33208603098 for the same application. See all 3.
BMW 535i Rear Right CV Axle Shaft
TrakMotive BM-8183 is a premium CV axle shaft for the rear right position on select BMW 535i applications. It is built for 2011-2016 BMW 535i fitments and supports OEM-style driveline operation for drivers replacing a worn rear axle on the BMW 535i.
Key Features
- Part number: BM-8183
- Brand line: TrakMotive CV Axle Shaft
- Fits 2014-2016 BMW 535i, rear right
- Fits 2011-2013 BMW 535i, rear right
- Premium grade replacement axle shaft
- Overall compressed length: 817 mm (32.17 in)
- Overall extended length: 897 mm (35.31 in)
- 27-spline inboard connection and 30-spline outboard connection
- Neoprene boots on the inboard and outboard joints
- Includes axle nut with M27x1.5 thread, 36 mm hex, stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive BM-8183 is a rear right CV axle shaft engineered for BMW 535i models with the correct rear axle configuration. The axle uses a male inboard joint with spline connection, a conventional outboard joint, and premium-grade construction to restore smooth power transfer through the driveline. This part number, BM-8183, also cross-references BMW OE numbers 33207581024 and 33208603098 for the same application.
The TrakMotive CV Axle Shaft line focuses on direct-fit driveline replacement parts built to match OE-style dimensions and connection points. For BMW 535i rear axle service, that means a replacement axle with the correct compressed and extended lengths, spline counts, and axle nut specifications needed for a proper installation on the rear right side.
What It Helps Address
- Clicking or popping noises from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from damaged axle boots
- Excessive driveline play at the rear right axle
- Loss of smooth power delivery in BMW 535i rear axle service
Installation Notes
Verify rear right fitment by model year before installation. This axle includes the axle nut, which uses a 36 mm socket size, M27x1.5 thread, and stake-style locking design. Confirm the vehicle’s ABS configuration and axle dimensions against the original part before assembly. Use the listed spline counts, length measurements, and joint styles to match the OE axle specification on the BMW 535i.
Quality Assurance
TrakMotive identifies this axle shaft as a premium replacement and states that its products come from an ISO 9001:2008 and TS 16949:2009 certified company. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016 | BMW | 535i | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | BMW | 535i | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | BMW | 535i | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | 535i | RWD | Automatic | 3.0L | L6 | Rear Right | 38mm Diameter; CV Axle Shaft |
| 2012 | BMW | 535i | RWD | Automatic | 3.0L | L6 | Rear Right | 38mm Diameter; CV Axle Shaft |
| 2011 | BMW | 535i | RWD | Automatic | 3.0L | L6 | Rear Right | 38mm Diameter; CV Axle Shaft |
