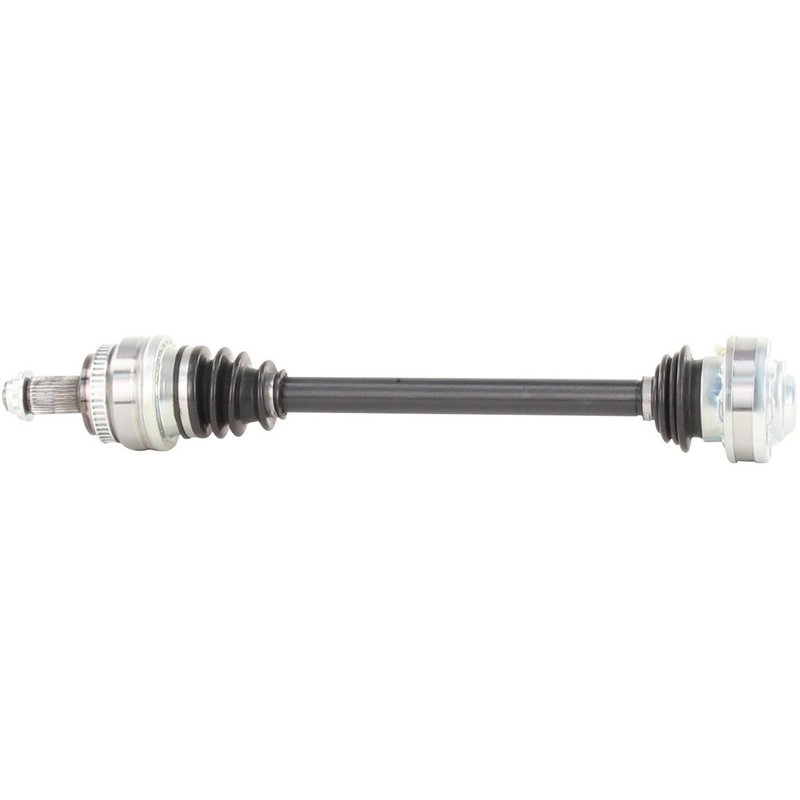

TrakMotive BM-8194 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft BM-8194 for BMW X3

The TrakMotive CV Axle Shaft BM-8194 is engineered specifically for BMW X3 models, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with BMW X3 models
• Part number BM-8194 for exact identification
• Includes ABS tone ring with 48 window-type teeth
• Neoprene boot material for enhanced durability
• Bolt-on inboard joint with 6 bolt holes
• Conventional outboard joint with spline connection
• Overall compressed length of 24.8 inches (630 mm)
• Includes axle nut with cotter pin locking mechanism

Detailed Features of the CV Axle Shaft BM-8194

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line is designed to meet the specific requirements of BMW X3 driveline systems. The axle shaft features a bolt-on inboard joint with six bolt holes and 29 splines, ensuring a secure and precise connection. The outboard joint uses a conventional design with 32 splines and a spline shaft connection style, providing smooth power transfer to the wheels.

The included ABS tone ring has 48 window-type teeth, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut is a hex head type with a cotter pin locking mechanism, measuring 35.5 mm across flats and 40.99 mm in length, ensuring secure fastening.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on BMW X3
• Resolves issues related to axle vibration or clicking noises during turns
• Restores proper ABS sensor function with included tone ring
• Addresses grease leakage from torn or degraded boots
• Ensures secure wheel attachment with included axle nut and cotter pin

Installation Notes and Tips

Installation of the TrakMotive BM-8194 CV Axle Shaft requires proper alignment of the bolt-on inboard joint and spline engagement on the outboard side. Use the included axle nut with cotter pin locking to secure the assembly. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Torque specifications should follow BMW manufacturer guidelines for the X3 model.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft BM-8194 is a new, remanufactured-free component designed to meet OEM standards for fit and function. The neoprene boot and robust joint construction contribute to long service life. Warranty details are provided by the manufacturer and should be confirmed at the time of purchase.
