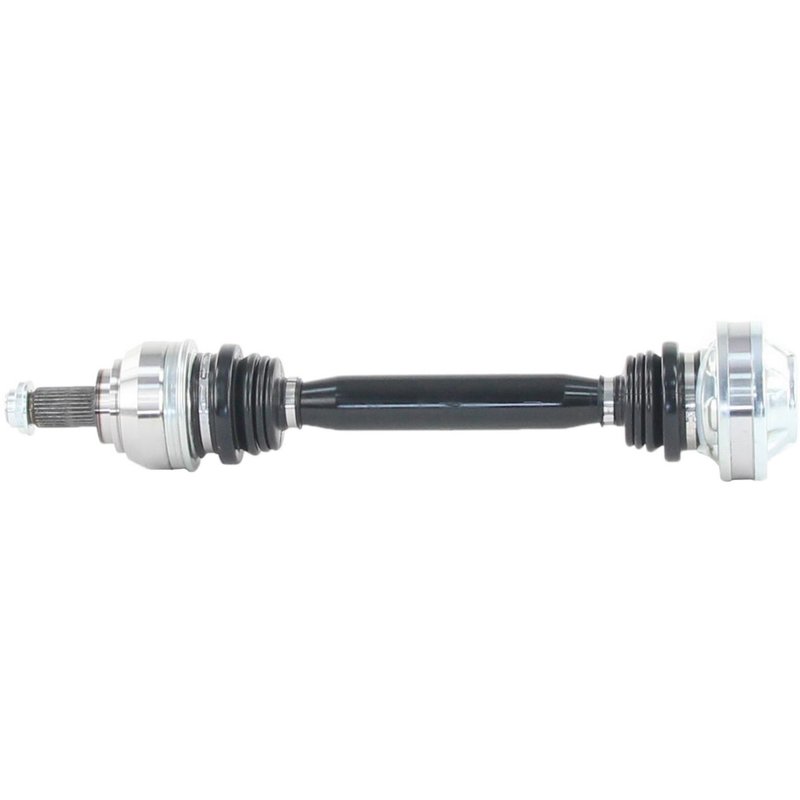

TrakMotive BM-8202 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft BM-8202

The TrakMotive CV Axle Shaft BM-8202 is engineered for reliable driveline performance in BMW 1 Series M and M3 models. Designed to meet premium grade standards, this axle shaft ensures consistent power transfer and durability under demanding driving conditions.

• Compatible with BMW 1 Series M and M3 vehicles
• Premium grade CV axle shaft for enhanced durability
• Overall compressed length: 23.66 inches (601 mm)
• Overall extended length: 26.61 inches (676 mm)
• Outboard joint with 30 splines and neoprene boot
• Inboard bolt-on joint with neoprene boot and 6 bolt holes
• Includes axle nut with M27x1.5 thread size and stake locking type
• Hex axle nut head type, 36 mm (1.4 inch) hex size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components designed for precise fitment and long service life. This line emphasizes premium materials such as neoprene boots for joint protection and bolt-on inboard joints for secure installation. The BM-8202 model exemplifies these qualities, providing a robust driveline solution for select BMW models.

Technical Specifications and Features

The BM-8202 CV axle shaft features a conventional outboard joint with a neoprene boot, ensuring effective protection against contaminants and wear. The outboard shaft connection uses a 30-spline design for secure engagement. The inboard joint is bolt-on type with six bolt holes, also protected by a neoprene boot, enhancing joint longevity. The included axle nut is a hex head type with a 36 mm socket size, 16 mm height, and a stake locking mechanism to maintain secure fastening. The axle nut thread size is M27x1.5, and the nut length measures 41 mm. This CV axle shaft has no ABS tone ring or ABS ring tooth count, indicating compatibility with vehicles without ABS sensor requirements on this component.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on BMW 1 Series M and M3
• Addresses issues with torn or leaking CV joint boots
• Resolves axle shaft vibration or clicking noises during turns
• Corrects axle nut fastening problems with stake locking design
• Restores driveline integrity for smooth power transfer

Installation Notes and Tips

When installing the TrakMotive BM-8202 CV axle shaft, ensure the bolt-on inboard joint is securely fastened using the six bolt holes provided. Use a 36 mm socket to tighten the included hex axle nut to the manufacturer’s torque specifications, taking care to engage the stake locking feature properly. Verify the spline engagement on the outboard shaft for a secure fit. This part is designed for direct replacement on compatible BMW 1 Series M and M3 models without modification.

Quality Assurance and Warranty

The TrakMotive BM-8202 CV Axle Shaft is manufactured to premium grade standards, ensuring durability and reliable performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to meet OEM fit and function requirements.
