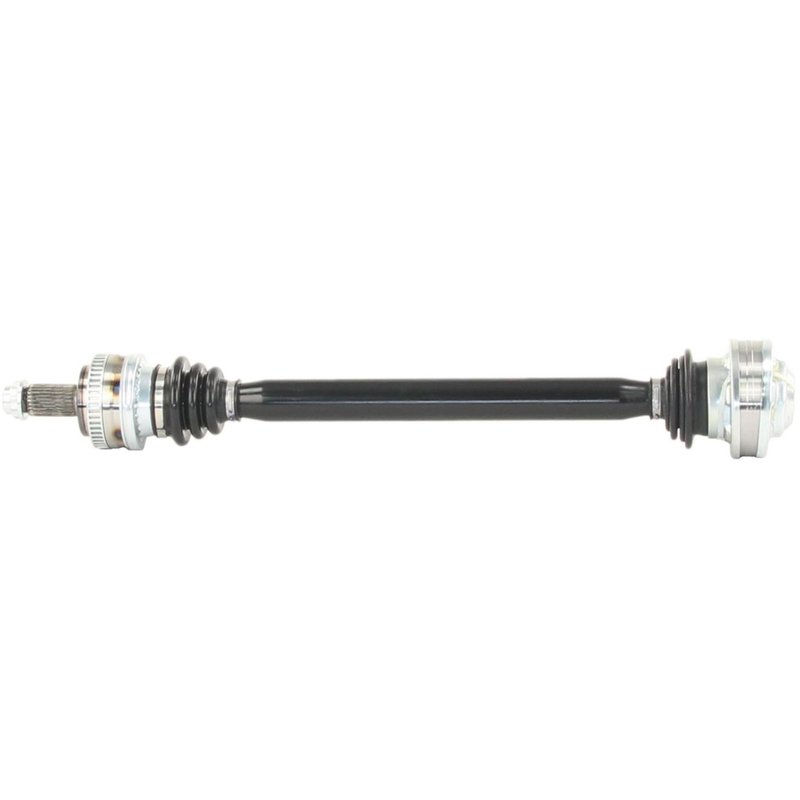

TrakMotive BM-8211 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-8211 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Window |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 17 |
| Axle Nut Hex Size (in) | 1.16 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 30 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.57 |
| Overall Compressed Length (mm) | 675 |
| Overall Extended Length (in) | 28.94 |
| Overall Extended Length (mm) | 735 |
| Product line | CV Axle Shaft |
| Fits | BMW · 3 vehicles |
Bolt-on design. Simplifies installation with a direct-fit axle shaft assembly.
ABS tone ring included. Helps maintain proper wheel speed signal operation.
Neoprene boots. Resist wear while protecting the CV joints.
Cross-references TrakMotive BM-8211 for the same application. See all 1.
Rear Right CV Axle Shaft for BMW Z4
TrakMotive BM-8211 is a premium CV axle shaft for the rear right position on 2006-2008 BMW Z4 models. It is built as an OEM-style axle to help maintain original ride quality while restoring driveline performance.
Key Features
- Fits 2006-2008 BMW Z4, rear right
- OEM-style CV axle shaft for original ride quality
- Premium-grade construction
- 27 outboard splines
- 48-tooth ABS ring with window-style tone ring included
- Neoprene boot material on both inboard and outboard joints
- Includes axle nut with M24x1.5 thread, 30 mm hex size, and stake locking type
- Overall compressed length: 675 mm; overall extended length: 735 mm
Product Details
TrakMotive BM-8211 is a CV axle shaft engineered for the rear right side of the BMW Z4. The axle uses a bolt-on inboard joint design with six inboard joint bolt holes and a conventional outboard joint with spline connection. The included ABS tone ring features a 48-tooth window-style design, supporting vehicles equipped with ABS-related axle sensing requirements. TrakMotive identifies this axle as an OEM-style replacement for the 2006-2008 BMW Z4, helping preserve the factory driving feel associated with the original driveline setup.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Applications
- Clicking or popping from the rear axle area during acceleration or turning
- Vibration or shudder from worn CV joints
- Grease leakage from damaged axle boots
- ABS-related axle replacement needs on the rear right side
- Restoring driveline smoothness on a BMW Z4
Installation Notes
Verify rear right fitment before installation on 2006-2008 BMW Z4 models. Confirm axle length, spline count, ABS ring configuration, and axle nut specifications against the original part. Use the included axle nut with the correct 30 mm socket size and M24x1.5 thread specification. Inspect mating surfaces, hub condition, and surrounding suspension components during replacement to ensure proper assembly.
Quality Assurance
TrakMotive lists this CV axle shaft as a premium-grade part from an ISO 9001:2008 and TS 16949:2009 certified company. BM-8211 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | BMW | Z4 | RWD | Manual | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2007 | BMW | Z4 | RWD | Manual | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2006 | BMW | Z4 | RWD | Manual | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
