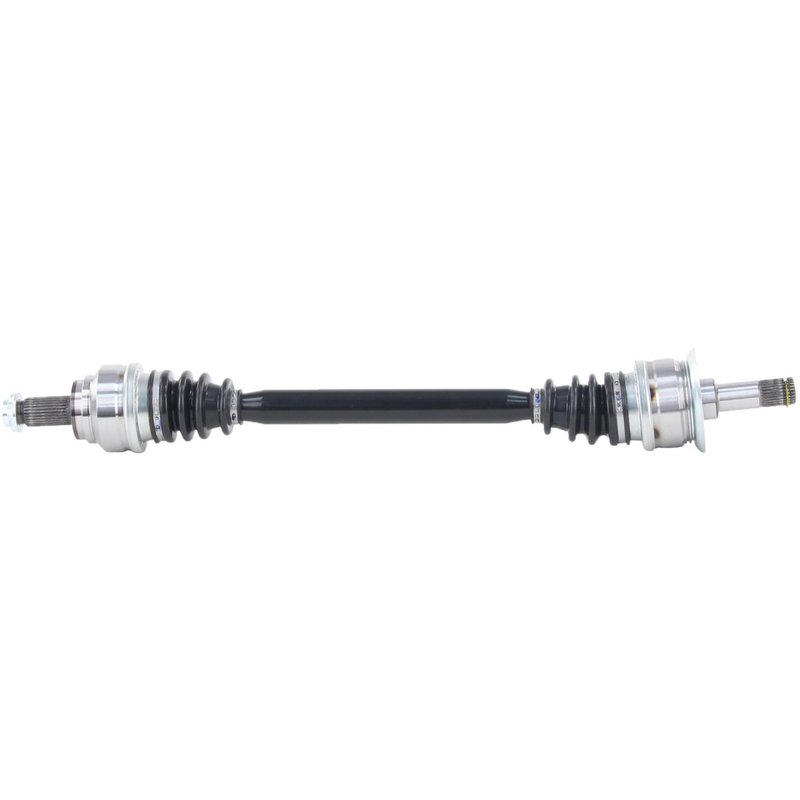

TrakMotive BM-8214 CV Axle Shaft - Rear Left
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive BM-8214 CV Axle Shaft - Rear Left

Brand TrakMotive BM-8214
Position Rear Left
ABS Ring Tooth Count 0
ABS Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (mm) 16
Axle Nut Hex Size (in) 1.4
Axle Nut Hex Size (mm) 36
Axle Nut Included Yes
Axle Nut Length (mm) 41
Axle Nut Locking Type Stake
Axle Nut Socket Size 36
Axle Nut Thread Size M27x1.5
Grade Type Premium
Inboard Joint Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 27
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 30
Outboard Joint Boot Material Neoprene
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 30.67
Overall Compressed Length (mm) 779
Overall Extended Length (in) 34.06
Overall Extended Length (mm) 865
Product line CV Axle Shaft
Fits BMW · 30 vehicles

OE-style replacement. Direct-fit CV axle shaft for straightforward installation.

Neoprene boot material. Helps resist wear while keeping the joints protected.

Premium grade. Built by an ISO 9001 and TS 16949 certified company.

Cross-references TrakMotive BM-8214, 33207577507 and NCV27041 for the same application. See all 3.

$311.16Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $311.16
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

BMW Rear Left CV Axle Shaft BM-8214

TrakMotive BM-8214 is a premium CV axle shaft for rear left applications on select BMW 535i GT, 535i GT xDrive, 640i, 640i xDrive, and 740i models. It is built as an OEM-style axle to help retain original ride quality and driveline feel.

Key Features

  • Premium-grade CV axle shaft for rear left driveline service
  • OEM-style design for original ride quality
  • Inboard joint type: male with spline connection
  • Outboard joint type: conventional with spline connection
  • Neoprene boot material on both inboard and outboard joints
  • Includes axle nut with M27x1.5 thread, 36 mm socket size, and stake locking type
  • ABS tone ring not included; ABS ring tooth count: 0
  • Overall compressed length: 779 mm; overall extended length: 865 mm

Detailed Description

TrakMotive BM-8214 is a CV axle shaft engineered for rear left BMW applications where an OEM-style replacement is needed to maintain factory driveline operation. This axle uses a 27-spline inboard connection and a 30-spline outboard connection, with neoprene boot materials selected for joint protection. The included axle nut and premium construction support a direct replacement approach for service work on BMW 535i GT, 535i GT xDrive, 640i, 640i xDrive, and 740i models. This part cross-references 33207577507 and NCV27041 for the same application.

Vehicle Fitment

  • Fits 2012-2018 BMW 640i, rear left.
  • Fits 2010-2017 BMW 535i GT, rear left.
  • Fits 2011-2017 BMW 535i GT xDrive, rear left.
  • Fits 2015-2017 BMW 640i xDrive, rear left.
  • Fits 2013-2015 BMW 740i, rear left, without Sport Automatic Transmission.
  • Fits 2011-2012 BMW 740i, rear left.

Common Repair Uses

  • Restoring smooth power transfer after CV joint wear
  • Replacing a damaged or noisy rear left axle shaft
  • Addressing vibration, clicking, or driveline shudder during acceleration
  • Correcting torn boots or grease loss at the CV joints
  • Replacing an axle that no longer maintains proper BMW driveline operation

Installation Notes and Tips

Verify rear left fitment by year, model, and transmission notes before installation. Confirm axle nut thread size, socket size, and locking style during service. Inspect mating splines, seals, and hub components before assembly, and follow BMW torque specifications and service procedures for final installation.

Quality Assurance

TrakMotive identifies this axle as a premium part and states that its products are backed by a limited lifetime warranty. The company also notes ISO 9001:2008 and TS 16949:2009 certification.

Related reading

This part fits 30 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeTransmissionLitersCylindersPositionNotes
2018BMW640i—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2017BMW535i GT—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2017BMW535i GT xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2017BMW640i—RWDAutomatic3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2017BMW640i xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2016BMW535i GT—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2016BMW535i GT xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2016BMW640i—RWDAutomatic3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2016BMW640i xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2015BMW535i GT—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2015BMW535i GT xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2015BMW640i—RWDAutomatic3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2015BMW640i xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2015BMW740iBaseRWD—3.0LL6Rear LeftWithout Sport Automatic Transmission; CV Axle Shaft
2014BMW535i GT—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2014BMW535i GT xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2014BMW640i—RWDAutomatic3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2014BMW740iBaseRWD—3.0LL6Rear LeftWithout Sport Automatic Transmission; CV Axle Shaft
2013BMW535i GT—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2013BMW535i GT xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2013BMW640i—RWDAutomatic3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2013BMW740iBaseRWD—3.0LL6Rear LeftWithout Sport Automatic Transmission; CV Axle Shaft
2012BMW535i GT—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2012BMW535i GT xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2012BMW640i—RWDAutomatic3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2012BMW740i—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2011BMW535i GT—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2011BMW535i GT xDrive—————Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2011BMW740i—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2010BMW535i GT—RWD—3.0LL6Rear LeftOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — BM-821433207577507NCV27041
