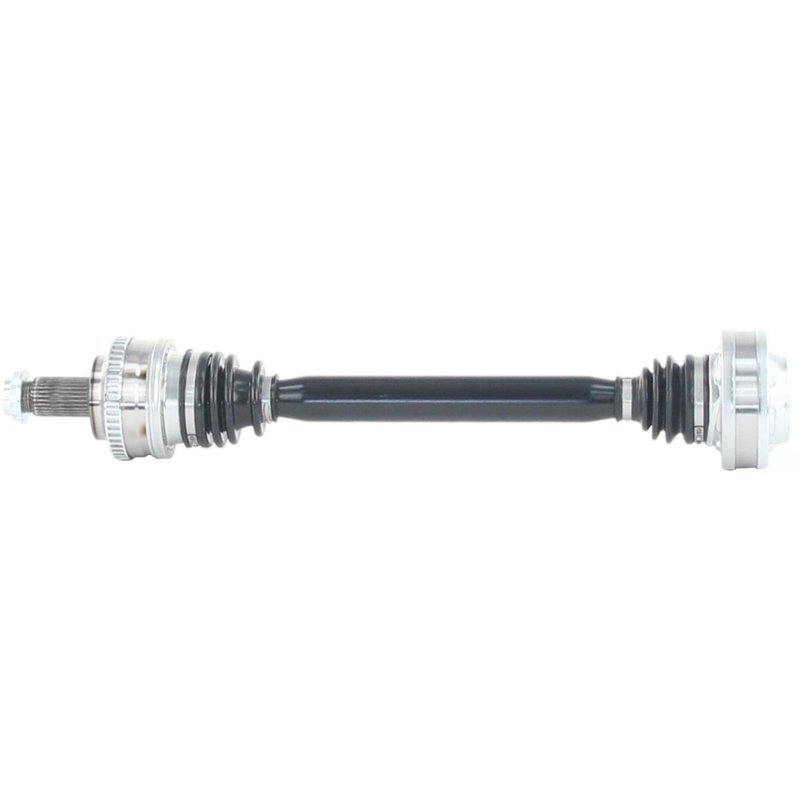

TrakMotive BM-8220 CV Axle Shaft - Rear Left

BMW M3 Rear Left CV Axle Shaft

TrakMotive BM-8220 is a premium CV axle shaft for the rear left position on 2001-2006 BMW M3 models. It is built as an OEM-style axle to help retain original ride quality while matching the fitment and driveline requirements of the application.

For BMW M3 rear left axle replacement, BM-8220 combines a bolt-on inboard joint, spline-style outboard connection, and application-specific ABS components for a direct-service driveline repair. TrakMotive BM-8220 is a practical choice when you need a replacement CV axle shaft for 2001-2006 BMW M3 rear left service.

Key Features

• Fits 2001-2006 BMW M3, rear left
• Premium-grade CV axle shaft from TrakMotive
• OEM-style axle to retain original ride quality
• ABS tone ring included with 48-tooth window-style ring
• Neoprene boot material on both inboard and outboard joints
• Inboard joint uses a 6-bolt bolt-on design
• Outboard shaft connection uses a 30-spline design
• Includes axle nut with M27x1.5 thread, 36 mm socket size, and stake locking type
• Overall compressed length: 617 mm; overall extended length: 688 mm

Detailed Description

TrakMotive BM-8220 is a rear left CV axle shaft engineered for 2001-2006 BMW M3 applications. The axle uses a conventional outboard joint, a bolt-on inboard joint, and a spline connection style that matches the driveline layout of the vehicle. The included ABS tone ring and 48-tooth window-style ring support the vehicle’s ABS-equipped setup, while the neoprene boot material helps protect the joints in normal service.

This part cross-references TrakMotive BM-8220 for the same application. If you are searching for a BMW M3 rear left CV axle shaft, BM-8220 provides the fitment-specific dimensions and connection details needed for this repair.

Common Problems This Part Can Address

• Clicking or popping from a worn rear CV joint
• Vibration during acceleration from a damaged axle shaft
• Grease leakage caused by a torn CV boot
• ABS warning concerns related to a failed tone ring or axle sensor interface
• Driveline noise from excessive axle play or joint wear

Installation Notes and Tips

Verify rear left fitment before installation and confirm axle nut thread size, socket size, and locking style against the vehicle’s original hardware. Inspect the hub, differential flange, and surrounding seals for wear before installing the new axle shaft. Because this application uses a bolt-on inboard joint, fastener condition and torque accuracy are important for proper service.

Quality Assurance

TrakMotive identifies this CV axle shaft as a premium-grade replacement and states that its products are backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
