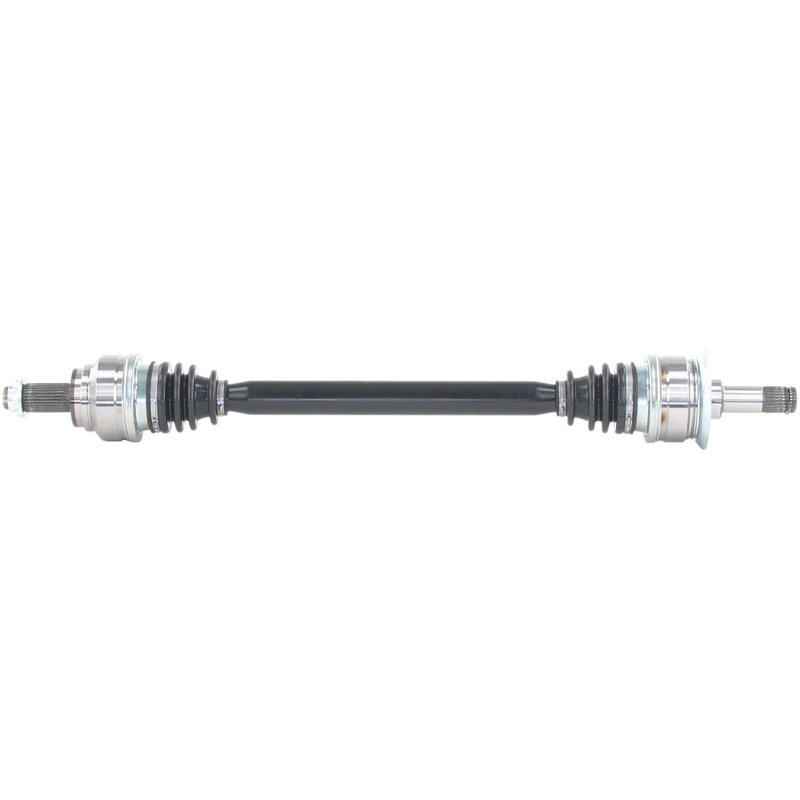

TrakMotive BM-8228 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-8228 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.76 |
| Overall Compressed Length (mm) | 832 |
| Overall Extended Length (in) | 36.14 |
| Overall Extended Length (mm) | 918 |
| Product line | CV Axle Shaft |
| Fits | BMW · 19 vehicles |
OE-style replacement. CV axle shaft with a premium-grade build for straightforward service.
Neoprene boot material. Helps protect the joints with durable, flexible sealing.
Axle nut included. Stake-locking nut is provided for a more complete install.
Cross-references TrakMotive BM-8228, 33207577508 and NCV27040 for the same application. See all 3.
BMW Rear Right CV Axle Shaft BM-8228
TrakMotive BM-8228 is a premium CV axle shaft for rear right BMW applications that need OEM-style driveline fit and consistent road feel. It is built for BMW 640i, 535i GT, and 740i models across the listed years, with spline-style shaft connections and neoprene boots at both joints.
Key Features
- Fits rear right BMW driveline applications listed below
- Premium-grade CV axle shaft for OE-style replacement needs
- Inboard joint type: male with 27 inboard splines
- Outboard joint type: conventional with 30 outboard splines
- Neoprene boot material at both inboard and outboard joints
- Includes axle nut with M27x1.5 thread, 36 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
- Overall compressed length: 832 mm; overall extended length: 918 mm
Product Details
TrakMotive CV Axle Shaft BM-8228 is engineered for rear right BMW fitments where the original axle geometry and ride quality need to be maintained. The axle uses spline connections at both ends, a male inboard joint, and a conventional outboard joint, with neoprene boots selected for joint protection. This part number BM-8228 also includes the axle nut specified for the application. TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line, backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part Can Address
- Clicking or popping from a worn rear axle joint
- Vibration during acceleration from axle wear or imbalance
- Boot damage that has allowed grease loss and contamination
- Excessive driveline play at the rear right axle position
- Noise or roughness from a failing CV axle shaft assembly
Installation Notes and Tips
Fits 2012-2018 BMW 640i, rear right. Fits 2010-2016 BMW 535i GT, rear right. Fits 2015 BMW 740i, rear right, without Sport Automatic Transmission. Fits 2011-2014 BMW 740i, rear right. Verify spline count, axle nut thread size, and rear right position before installation. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive BM-8228 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company. The part is covered by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2018 | BMW | 640i | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2017 | BMW | 640i | — | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | BMW | 535i GT | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | BMW | 640i | — | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | BMW | 535i GT | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | BMW | 640i | — | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | BMW | 740i | Base | RWD | — | 3.0L | L6 | Rear Right | Without Sport Automatic Transmission; CV Axle Shaft |
| 2014 | BMW | 535i GT | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | BMW | 640i | — | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | BMW | 740i | Base | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | 535i GT | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | 640i | — | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | 740i | Base | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | BMW | 535i GT | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | BMW | 640i | — | RWD | Automatic | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | BMW | 740i | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2011 | BMW | 535i GT | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2011 | BMW | 740i | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2010 | BMW | 535i GT | — | RWD | — | 3.0L | L6 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
