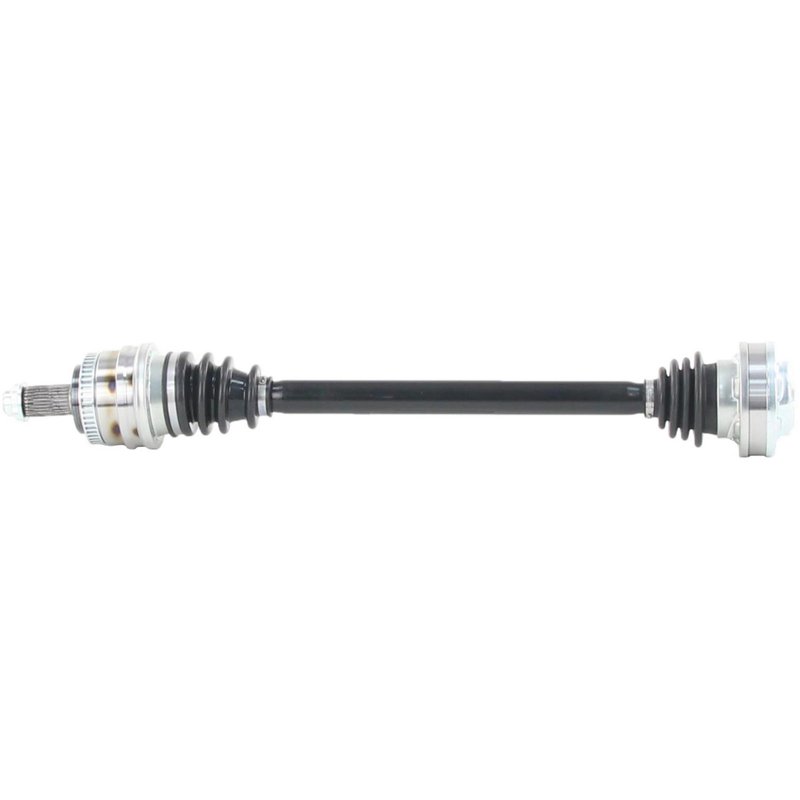

TrakMotive BM-8230 CV Axle Shaft - Rear Right

BMW Rear Right CV Axle Shaft

TrakMotive BM-8230 is a premium CV axle shaft for rear right applications on select BMW models. It is built as an OEM-style replacement to help maintain original ride quality, with fitment for the BMW 323i, 328i, 325i, 325Ci, and Z4 in the listed years.

The BM-8230 CV axle shaft includes a 48-tooth ABS ring with a window-style tone ring, a supplied axle nut, and neoprene boot materials at both joints. TrakMotive positions this axle shaft as a driveline replacement for BMW rear right service where precise spline engagement and OE-style geometry matter.

Key Features

• Rear right CV axle shaft for select BMW applications
• OEM-style replacement for original ride quality
• ABS ring tooth count: 48
• Window-style ABS tone ring included
• Supplied axle nut with M24x1.5 thread size
• Outboard shaft connection style: spline
• Outboard joint type: conventional
• Inboard joint type: bolt-on
• Neoprene boot material at inboard and outboard joints
• Premium grade construction

Detailed Description

TrakMotive BM-8230 is a CV axle shaft engineered for rear right driveline service on BMW 323i, 328i, 325i, 325Ci, and Z4 models listed below. The axle uses a bolt-on inboard joint design, a spline-style outboard connection, and a conventional outboard joint layout to match the specified application. It measures 669 mm compressed length and 732 mm extended length, with a 27-spline outboard shaft connection and a 6-bolt inboard joint pattern. This part cross-references BMW 33211229592KT for the same application.

TrakMotive’s CV Axle Shaft line focuses on OE-style driveline replacement parts for direct-fit service. BM-8230 follows that approach with application-specific dimensions, ABS tone ring integration, and a supplied axle nut sized for the listed BMW fitments. The part number BM-8230 is a direct reference for shoppers searching for a BMW rear right CV axle shaft replacement.

Vehicle Fitment

• Fits 2001-2006 BMW 325Ci, rear right. OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft.
• Fits 2001-2005 BMW 325i, rear right. OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft.
• Fits 2003-2005 BMW Z4, rear right. OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft.
• Fits 1999-2000 BMW 323i, rear right. OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft.
• Fits 1999-2000 BMW 328i, rear right. OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft.

Common Repair Uses

• Restores driveline operation after CV joint wear
• Addresses clicking or popping noises from the rear axle area
• Replaces a damaged or leaking axle shaft boot assembly
• Helps correct vibration caused by worn axle components
• Supports ABS-equipped rear axle service on listed BMW models

Installation Notes

Verify rear right fitment by year, model, and ABS configuration before installation. Confirm axle nut thread size, spline count, and overall length against the original part to ensure proper alignment and engagement. Because this axle uses a bolt-on inboard joint and a spline outboard connection, inspect mating surfaces, hub condition, and fastener threads during service.

Quality Assurance

TrakMotive identifies this axle shaft as a premium-grade part and states that its manufacturing is backed by ISO 9001:2008 and TS 16949:2009 certified company processes. The BM-8230 also carries a limited lifetime warranty.
