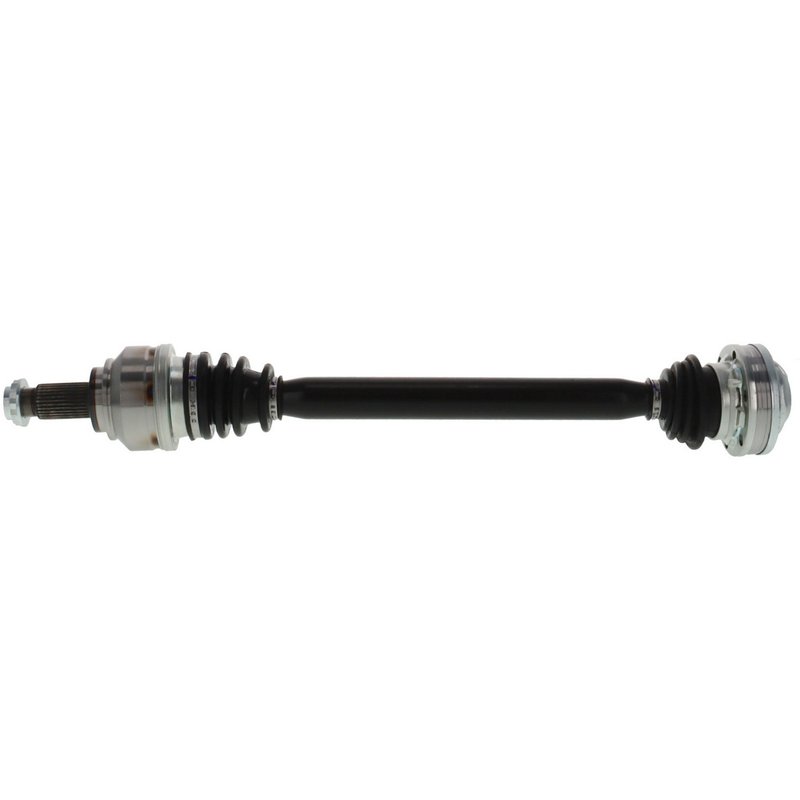

TrakMotive BM-8232 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-8232 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.06 |
| Overall Compressed Length (mm) | 662 |
| Overall Extended Length (in) | 28.74 |
| Overall Extended Length (mm) | 730 |
| Product line | CV Axle Shaft |
| Fits | BMW · 20 vehicles |
Bolt-on design. Simplifies installation with a secure inboard shaft connection.
Neoprene boots. Help protect the joints from dirt and moisture.
Premium grade. Built as a CV axle shaft from TrakMotive.
Cross-references TrakMotive BM-8232, 33 20 7 568 731 and 33207568730KT for the same application. See all 6.
BMW Rear Right CV Axle Shaft
TrakMotive BM-8232 is a rear right CV axle shaft for select BMW 135i, 335i, 335i xDrive, and 335xi applications. It is built as an OEM-style replacement to help maintain original ride quality while restoring driveline performance on the rear right side.
This CV axle shaft uses a conventional outboard joint, a bolt-on inboard joint, and neoprene boot materials at both ends. It includes a stake-lock axle nut with M27x1.5 thread, 36 mm socket size, and hex head design for the specified BMW applications.
Key Features
- TrakMotive CV Axle Shaft, part number BM-8232
- Rear right position for select BMW 135i, 335i, 335i xDrive, and 335xi models
- OEM-style axle design for original ride quality
- Conventional outboard joint with spline shaft connection
- Bolt-on inboard joint with 6 inboard joint bolt holes
- Neoprene boot material at the inboard and outboard joints
- Includes axle nut with M27x1.5 thread and 36 mm socket size
- Premium grade construction
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
BM-8232 is a rear right BMW CV axle shaft engineered for driveline service on 2007-2013 BMW 135i, 335i, 335i xDrive, and 335xi applications listed below. The axle is designed with 30 outboard splines, a bolt-on inboard connection, and compressed and extended lengths of 662 mm and 730 mm to match the specified fitment. TrakMotive manufactures this axle as a premium replacement component for BMW rear axle service where OE-style fit and ride characteristics are required. This part cross-references BMW OE and aftermarket numbers such as 33 20 7 568 731 and NCV27026 for the same application.
What It Helps Fix
- Clicking or popping from a worn rear CV joint
- Vibration during acceleration from axle wear
- Grease leakage from damaged axle boots
- Excessive driveline play at the rear right axle
- Loss of smooth power transfer to the rear wheels
Installation Notes
Confirm rear right fitment by year, model, and drivetrain before installation. This axle is listed for 2008-2013 BMW 135i rear right, 2007-2010 BMW 335i rear right, 2011-2013 BMW 335i xDrive rear right with twin turbo, 2011 BMW 335i rear right with twin turbo, 2009-2010 BMW 335i xDrive rear right, and 2007-2008 BMW 335xi rear right. Verify axle nut thread size, socket size, and spline count against the original part before assembly.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company states ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and product consistency for BMW driveline replacement work.
| Year | Make | Model | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | BMW | 135i | — | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | 335i | Coupe | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | 335i xDrive | — | — | Rear Right | With Twin Turbo; CV Axle Shaft |
| 2012 | BMW | 135i | — | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | BMW | 335i | Coupe | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | BMW | 335i xDrive | — | — | Rear Right | With Twin Turbo; CV Axle Shaft |
| 2011 | BMW | 135i | — | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2011 | BMW | 335i | — | Manual | Rear Right | With Twin Turbo; CV Axle Shaft |
| 2011 | BMW | 335i xDrive | — | — | Rear Right | With Twin Turbo; CV Axle Shaft |
| 2010 | BMW | 135i | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2010 | BMW | 335i | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2010 | BMW | 335i xDrive | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2009 | BMW | 135i | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2009 | BMW | 335i | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2009 | BMW | 335i xDrive | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2008 | BMW | 135i | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2008 | BMW | 335i | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2008 | BMW | 335xi | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2007 | BMW | 335i | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2007 | BMW | 335xi | — | Manual | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
