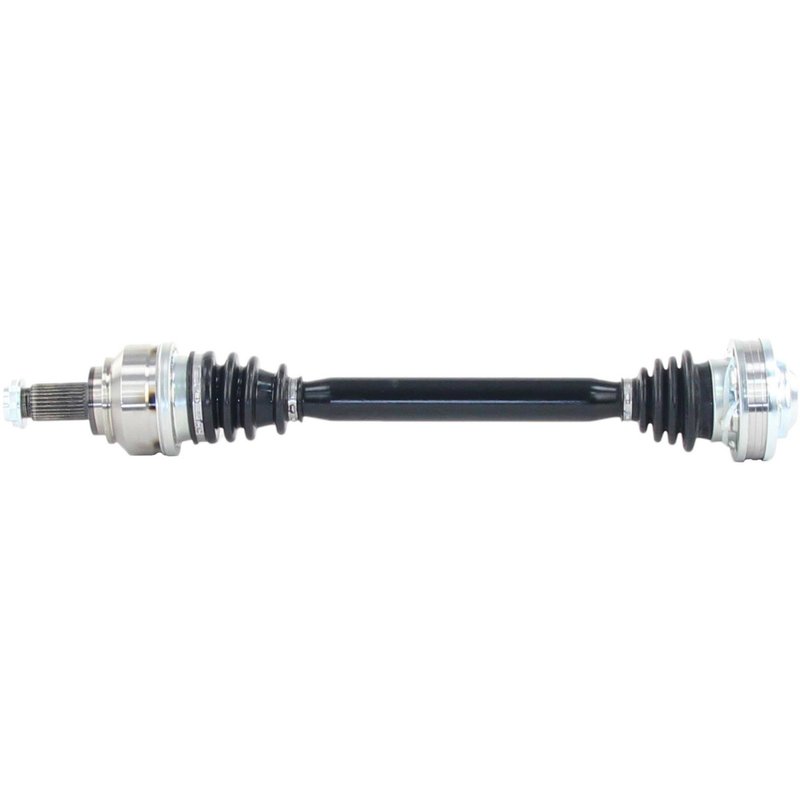

TrakMotive BM-8233 CV Axle Shaft - Rear Left
| Brand | TrakMotive BM-8233 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.98 |
| Overall Compressed Length (mm) | 609 |
| Overall Extended Length (in) | 26.65 |
| Overall Extended Length (mm) | 677 |
| Product line | CV Axle Shaft |
| Fits | BMW · 17 vehicles |
Bolt-on design. Simplifies installation with a secure, direct-fit connection.
Neoprene boots. Help protect the joints from dirt and moisture.
Premium grade. Built as a CV axle shaft from a certified manufacturer.
Cross-references TrakMotive BM-8233, 33207568731 and 33207568737KT for the same application. See all 3.
BMW Rear Left CV Axle Shaft BM-8233
TrakMotive BM-8233 is a premium CV axle shaft for rear left applications on select BMW 135i and 335i models. It is built as an OEM-style replacement to help maintain original ride quality while matching the vehicle’s driveline geometry and spline configuration.
Key Features
- Rear left CV axle shaft for select BMW applications
- OEM-style design for original ride quality
- Inboard joint type: bolt-on with 6 inboard joint bolt holes
- Outboard joint type: conventional with 30 outboard splines
- Neoprene boot material on both inboard and outboard joints
- Axle nut included; M27x1.5 thread, 36 mm socket size, stake locking type
- Overall compressed length: 609 mm (23.98 in); overall extended length: 677 mm (26.65 in)
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft is part of the brand’s CV Axle Shaft line and is engineered for driveline service on BMW rear left positions where an OEM-style axle is required. BM-8233 uses a bolt-on inboard connection, spline-style outboard connection, and neoprene boots to support consistent articulation in the rear driveline. It is listed for 2007-2013 BMW 335i, 2011-2013 BMW 335i xDrive, 2008-2013 BMW 135i, and 2013 BMW 335is rear left applications, including twin turbo and single turbo notes where specified. This part cross-references BMW OE numbers 33207568731 and 33207568737KT for the same application.
What It Helps Address
- Clicking or popping from a worn rear CV axle
- Vibration during acceleration from driveline wear
- Boot damage that can lead to grease loss and joint wear
- Excessive play in the rear axle assembly
- Noise from a failing axle on BMW 135i and 335i rear left applications
Installation Notes
Verify rear left fitment by year, model, and engine configuration before installation. Confirm axle length, spline count, and axle nut specifications against the original part: 36 mm socket size, M27x1.5 thread, and stake-style locking. Inspect mating surfaces, seals, and hub components during replacement to help ensure proper seating and smooth operation.
Quality Assurance
TrakMotive identifies BM-8233 as a premium-grade CV axle shaft from an ISO 9001:2008 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | BMW | 135i | — | — | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | 335i | — | — | Rear Left | With Twin Turbo; CV Axle Shaft |
| 2013 | BMW | 335i xDrive | — | — | Rear Left | With Twin Turbo; CV Axle Shaft |
| 2013 | BMW | 335is | Convertible | Manual | Rear Left | With Single Turbo; CV Axle Shaft |
| 2012 | BMW | 135i | — | — | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | BMW | 335i | — | — | Rear Left | With Twin Turbo; CV Axle Shaft |
| 2012 | BMW | 335i xDrive | — | — | Rear Left | With Twin Turbo; CV Axle Shaft |
| 2011 | BMW | 135i | — | — | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2011 | BMW | 335i | — | — | Rear Left | With Twin Turbo; CV Axle Shaft |
| 2011 | BMW | 335i xDrive | — | — | Rear Left | With Twin Turbo; CV Axle Shaft |
| 2010 | BMW | 135i | — | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2010 | BMW | 335i | — | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2009 | BMW | 135i | — | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2009 | BMW | 335i | — | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2008 | BMW | 135i | — | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2008 | BMW | 335i | — | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2007 | BMW | 335i | — | Manual | Rear Left | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
