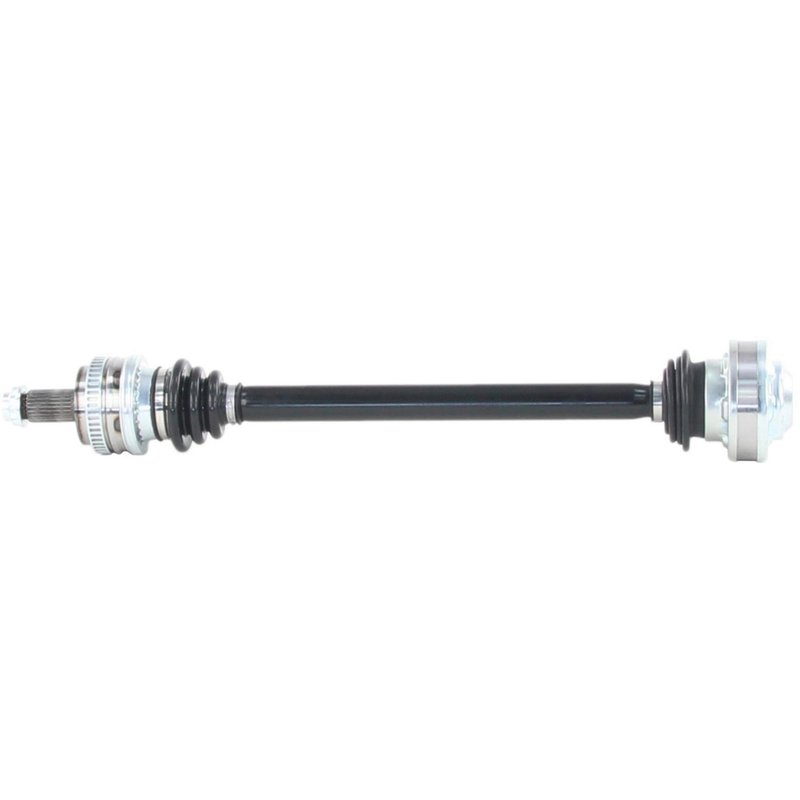

TrakMotive BM-8238 CV Axle Shaft - Rear Right

BMW 325i Rear Right CV Axle Shaft

TrakMotive BM-8238 is a premium CV axle shaft for the rear right position on the 2006 BMW 325i, with fitment noted through 12/05. It is built for direct replacement service on the BMW 325i rear right application and includes the axle nut and ABS tone ring details needed for the correct setup.

Key Features

• Fits 2006 BMW 325i, rear right
• TrakMotive CV Axle Shaft, part number BM-8238
• Premium grade replacement axle for driveline service
• Outboard joint uses a conventional design with 27 outboard splines
• Inboard joint uses a bolt-on connection with 6 inboard joint bolt holes
• ABS ring tooth count: 48 with window-style ABS ring
• ABS tone ring included
• Neoprene boot material on both inboard and outboard joints
• Axle nut included: M24x1.5 thread, 30 mm socket size, stake locking type

Detailed Description

TrakMotive BM-8238 is a rear right CV axle shaft engineered for the 2006 BMW 325i and specified for vehicles through 12/05. This axle shaft features a spline-style outboard shaft connection, a bolt-on inboard joint, and a conventional outboard joint layout to match the original driveline configuration. The included ABS tone ring and 48-tooth window-style ABS ring support the vehicle’s wheel speed sensing setup, while neoprene boots help protect the joints from road contamination.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to OE-style dimensions and application-specific fitment. BM-8238 is a direct-fit solution for BMW 325i rear right axle service, and this part cross-references OE number 33207559934 for the same application.

What This Part Helps Address

• Clicking or popping noises from a worn CV joint
• Vibration during acceleration or driveline load
• Axle shaft play caused by worn splines or joint wear
• ABS warning concerns related to a damaged tone ring setup
• Grease leakage from deteriorated axle boots

Installation Notes and Tips

Confirm rear right fitment on the 2006 BMW 325i and verify the vehicle build date note through 12/05 before installation. Replace the axle nut during service when required by the application, and torque fasteners to BMW specifications. Inspect the hub, seals, and mating surfaces before installing the new axle shaft to help ensure proper seating and smooth operation.

Quality Assurance

TrakMotive lists BM-8238 as a premium CV axle shaft backed by a limited lifetime warranty. The manufacturer also states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company.
