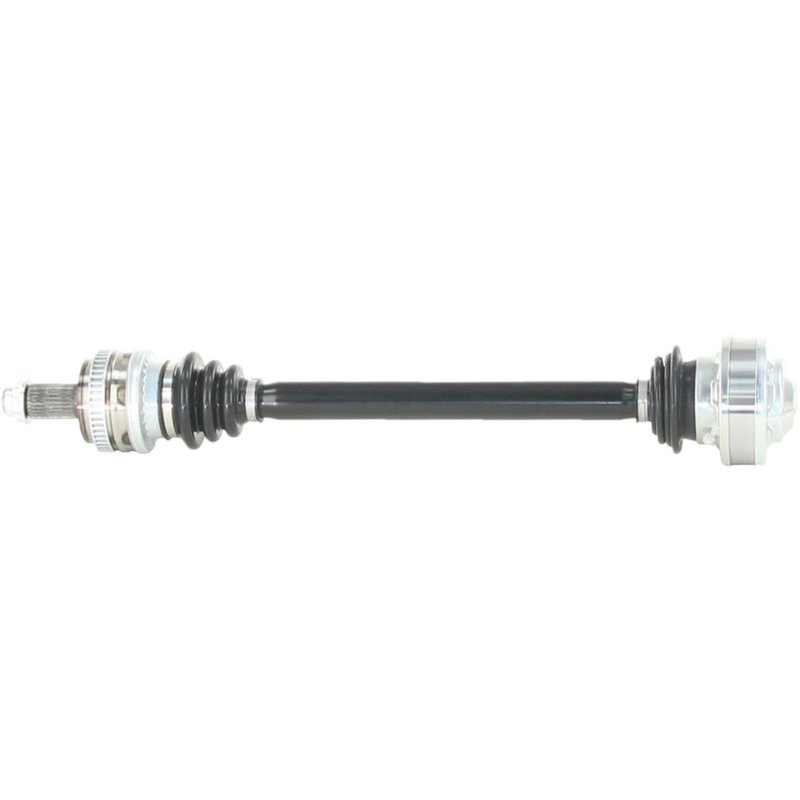

TrakMotive BM-8239 CV Axle Shaft - Rear Left

BMW 325i Rear Left CV Axle Shaft

TrakMotive BM-8239 is a premium CV axle shaft for the rear left position on the 2006 BMW 325i, including vehicles built through 12/05. It is built for driveline service where smooth torque transfer, stable joint movement, and correct ABS signal integration are required.

Compatible with 2006 BMW 325i rear left applications, this TrakMotive CV axle shaft includes a 48-tooth window-style ABS tone ring and a matching axle nut for a direct replacement setup. The BM-8239 part number is also referenced for the same application as OE number 33207559933.

Key Features

• TrakMotive CV Axle Shaft, part number BM-8239
• Fits 2006 BMW 325i, rear left, thru 12/05
• Premium grade driveline replacement
• 48-tooth ABS ring with window-style tone ring included
• Neoprene boot material on both inboard and outboard joints
• Inboard joint type: bolt-on with 6 inboard joint bolt holes
• Outboard joint type: conventional with spline shaft connection
• Axle nut included: M24x1.5 thread, 30 mm hex size, stake locking type
• Overall compressed length: 613 mm (24.11 in); extended length: 674 mm (26.52 in)

Product Details

This CV axle shaft is engineered for the rear left side of the 2006 BMW 325i and uses a bolt-on inboard joint with a conventional outboard joint for the specified driveline layout. The BM-8239 includes the ABS tone ring and axle nut, and its 27 outboard splines and 48-tooth ABS ring support proper fitment and wheel-speed signal operation for the listed vehicle application. TrakMotive BM-8239 cross-references OE part number 33207559933 for the same application.

Common Problems This Part Can Address

• Clicking or popping from a worn CV joint during acceleration or turning
• Vibration or shudder caused by a damaged axle shaft
• ABS warning light concerns related to a failed tone ring or signal input
• Grease leakage from deteriorated axle boots
• Driveline noise from excessive joint wear

Installation Notes and Tips

Verify rear left fitment against the vehicle build date, since this application is listed for 2006 BMW 325i models thru 12/05. Confirm axle nut thread size, hex size, and ABS ring configuration before installation. Inspect mating surfaces, hub condition, and fastener threads during replacement, and torque all hardware to the vehicle manufacturer’s specifications.

Quality Assurance

TrakMotive identifies this CV axle shaft as a premium-grade component and states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certified company standards. The BM-8239 is backed by a limited lifetime warranty.
