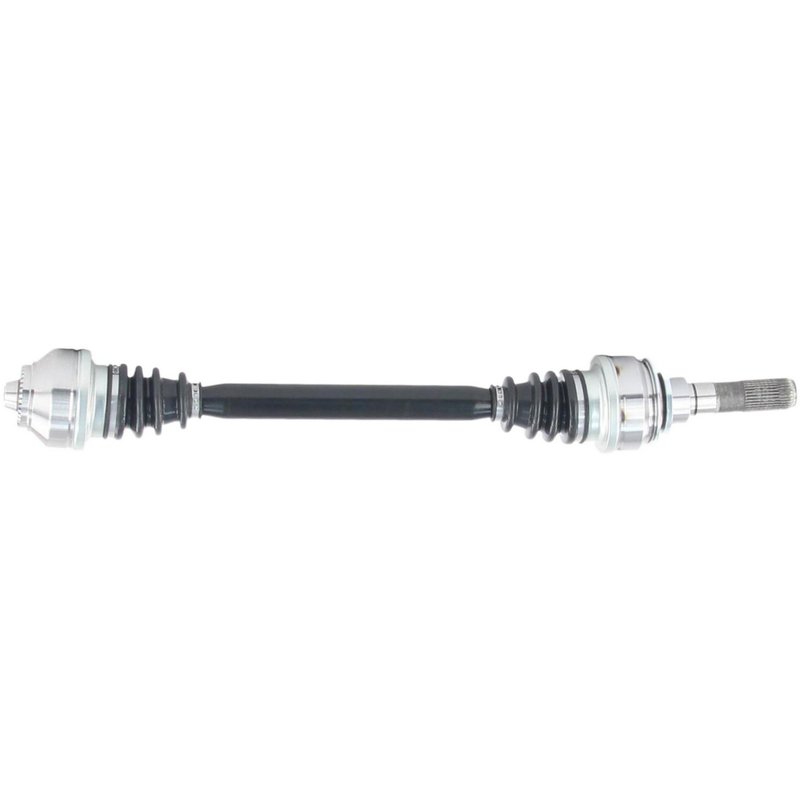

TrakMotive BM-8254 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-8254 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 32 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 37 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.92 |
| Overall Compressed Length (mm) | 760 |
| Overall Extended Length (in) | 33.46 |
| Overall Extended Length (mm) | 850 |
| Product line | CV Axle Shaft |
| Fits | BMW · 12 vehicles |
Premium grade. Built as a premium CV axle shaft for dependable driveline service.
Neoprene boot material. Helps protect the joints with durable, flexible sealing.
Spline connection style. Provides a secure, precise shaft connection.
Cross-references TrakMotive BM-8254, 33212284116 and NCV28002K for the same application. See all 3.
BMW M5/M6 Rear Right CV Axle Shaft
The TrakMotive BM-8254 is a premium CV axle shaft for rear right applications on select BMW M5 and BMW M6 models. It is built for OEM-style fitment to help maintain original ride quality while restoring driveline function.
Compatible with 2012-2016 BMW M5, rear right, and 2012-2018 BMW M6, rear right.
Key Features
- Premium-grade CV axle shaft for driveline and axle service
- OEM-style axle design to retain original ride quality
- 32 inboard splines and 37 outboard splines
- Neoprene boot material on both inboard and outboard joints
- Male inboard joint with spline connection style
- No ABS tone ring included; ABS ring tooth count: 0
- Overall compressed length: 29.92 in. (760 mm); extended length: 33.46 in. (850 mm)
Detailed Description
TrakMotive BM-8254 is a rear right CV axle shaft engineered for BMW M5 and BMW M6 applications that require an OEM-style replacement. The axle uses a male inboard joint, flat spline outboard joint, and neoprene boot materials to support consistent operation in the driveline. This part number, BM-8254, is a direct-fit service option for 2012-2016 BMW M5 and 2012-2018 BMW M6 rear right positions.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built under ISO 9001:2008 and TS 16949:2009 certified manufacturing processes. This part cross-references BMW 33212284116 and NCV28002K for the same application.
What It Helps Address
- Clicking or popping noises from a worn CV axle
- Vibration during acceleration from driveline wear
- Grease leakage from damaged axle boots
- Loss of smooth power transfer to the rear wheel
- Axle replacement needs on BMW M5 and BMW M6 rear right applications
Installation Notes and Tips
Verify rear right fitment by year, model, and axle configuration before installation. This axle does not include an axle nut, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Confirm spline count and compressed length against the original axle before service.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. Manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2018 | BMW | M6 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2017 | BMW | M6 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | BMW | M5 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | BMW | M6 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | BMW | M5 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | BMW | M6 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | BMW | M5 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | BMW | M6 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | M5 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2013 | BMW | M6 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | BMW | M5 | — | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2012 | BMW | M6 | Convertible | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
