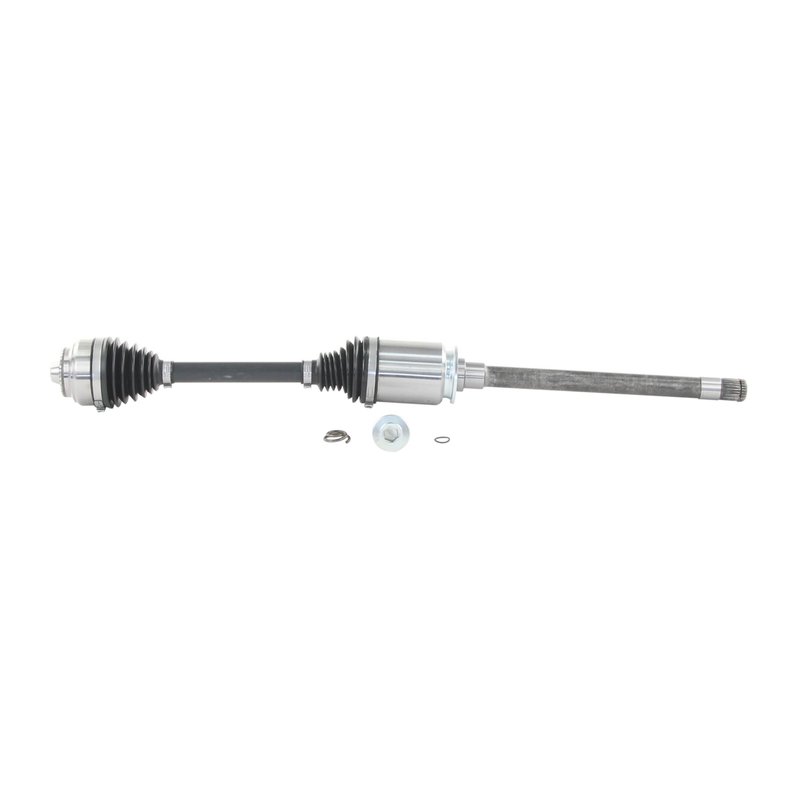

TrakMotive BM-86001 CV Axle Shaft - Front Right

BMW Front Right CV Axle Shaft

TrakMotive BM-86001 is a premium CV axle shaft for select BMW xDrive applications that need OE AAR design replacement on the front right side. It is built for 2010-2017 BMW 550i GT xDrive, 2010-2015 BMW 750i xDrive, and 2010-2015 BMW 750Li xDrive applications.

The TrakMotive AAR CV Axle Shaft line focuses on OE-style fit and application-specific construction. This BM-86001 axle is made for vehicles using a long-male inboard joint, a flat spline outboard joint, 27 inboard splines, and 37 outboard splines, with an overall compressed length of 876 mm and extended length of 943 mm.

Key Features

• Front right CV axle shaft for select BMW xDrive models
• OE AAR design replacement for the listed applications
• Premium grade construction
• Long-male inboard joint type
• Flat spline outboard joint type
• 27 inboard splines and 37 outboard splines
• Overall compressed length: 876 mm (34.5 in)
• Overall extended length: 943 mm (37.13 in)
• ABS tone ring not included; ABS ring tooth count: 0

Detailed Description

TrakMotive BM-86001 is a front right CV axle shaft engineered for BMW driveline service where OE AAR design is required. It is listed for 2010-2017 BMW 550i GT xDrive, 2010-2015 BMW 750i xDrive, and 2010-2015 BMW 750Li xDrive, making it a direct-fit replacement for those specific front right applications. The axle uses an M16x1.5 axle bolt thread, a 17 mm axle bolt hex size, and does not include an axle nut.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application. BM-86001 is part of TrakMotive’s AAR CV Axle Shaft line, backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.

What It Helps Fix

• Clicking or popping noises during turns from a worn CV joint
• Vibration felt through the drivetrain under acceleration
• Grease leakage from a damaged axle boot or joint wear
• Excessive play in the front right axle assembly
• Loss of smooth power transfer in xDrive driveline service

Installation Notes and Tips

Verify the vehicle’s front right application, spline count, and axle length before installation. Confirm whether the vehicle uses the listed OE AAR design and compare the axle bolt thread and hex size to the original part. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive BM-86001 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company. The part is covered by a limited lifetime warranty.
