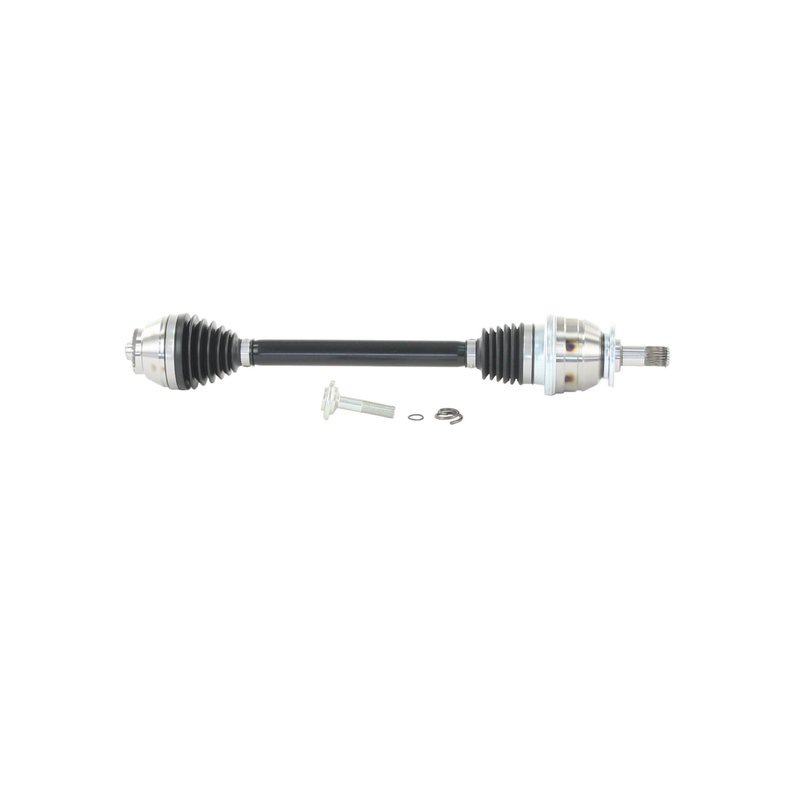

TrakMotive BM-86002 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-86002 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 83 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.5 |
| Overall Compressed Length (mm) | 623 |
| Overall Extended Length (in) | 26.25 |
| Overall Extended Length (mm) | 666 |
| Product line | CV Axle Shaft |
| Fits | BMW · 10 vehicles |
Premium grade. Built with thermoplastic boots for durable CV joint protection.
Spline connection. 22 and 31 spline ends provide a precise axle interface.
ABS-ready design. Configured for non-ABS applications with no tone ring included.
Cross-references TrakMotive BM-86002 for the same application. See all 1.
BMW Front Right CV Axle Shaft
TrakMotive BM-86002 is a premium CV axle shaft for the front right position on select BMW applications. It is built for direct replacement use on BMW 330i, 330e xDrive, i8, and Z4 models with the listed drivetrain configurations.
- Premium-grade CV axle shaft for front right driveline service
- Inboard joint type: male with 22 inboard splines
- Outboard joint type: flat spline with 31 outboard splines
- Thermoplastic boots on both inboard and outboard joints
- Overall compressed length: 24.5 in (623 mm)
- Overall extended length: 26.25 in (666 mm)
- ABS tone ring not included; ABS ring tooth count: 0
- Axle bolt thread size: M16x1.5; hex size: 17 mm; bolt length: 83 mm
Product Details
This TrakMotive CV axle shaft is engineered for BMW driveline applications that require the correct spline count, length, and joint configuration. BM-86002 is listed for 2021 BMW 330e xDrive front right, 2021 BMW 330i front right, 2019-2020 BMW 330i front right without limited slip differential, 2014-2017 BMW i8 front right, 2019 BMW i8 front right, and 2019 BMW Z4 front right with non-locking differential. This part cross-references TrakMotive BM-86002 for the same application.
Common Repair Uses
- Restoring front right axle function after CV joint wear
- Addressing clicking or popping during turns
- Replacing a shaft with torn boots or grease loss
- Correcting vibration from a worn driveline component
- Repairing axle damage from road impact or drivetrain stress
Installation Notes
Verify the vehicle’s differential type, build origin, and axle dimensions before installation. This axle is listed for Germany-built 2021 BMW 330i and 330e xDrive applications, and for specific 330i, i8, and Z4 configurations noted above. Confirm spline counts, bolt thread size, and overall length against the original part before service.
Quality Assurance
TrakMotive identifies this CV axle shaft as a premium-grade replacement and states that its products are backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | BMW | 330e xDrive | Front Right | Germany Built; CV Axle Shaft |
| 2021 | BMW | 330i | Front Right | Germany Built; CV Axle Shaft |
| 2020 | BMW | 330i | Front Right | Without Limited Slip Differential; CV Axle Shaft |
| 2019 | BMW | 330i | Front Right | Without Limited Slip Differential; CV Axle Shaft |
| 2019 | BMW | i8 | Front Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2019 | BMW | Z4 | Front Right | With Non-Locking Differential; CV Axle Shaft |
| 2017 | BMW | i8 | Front Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | BMW | i8 | Front Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | BMW | i8 | Front Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | BMW | i8 | Front Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
