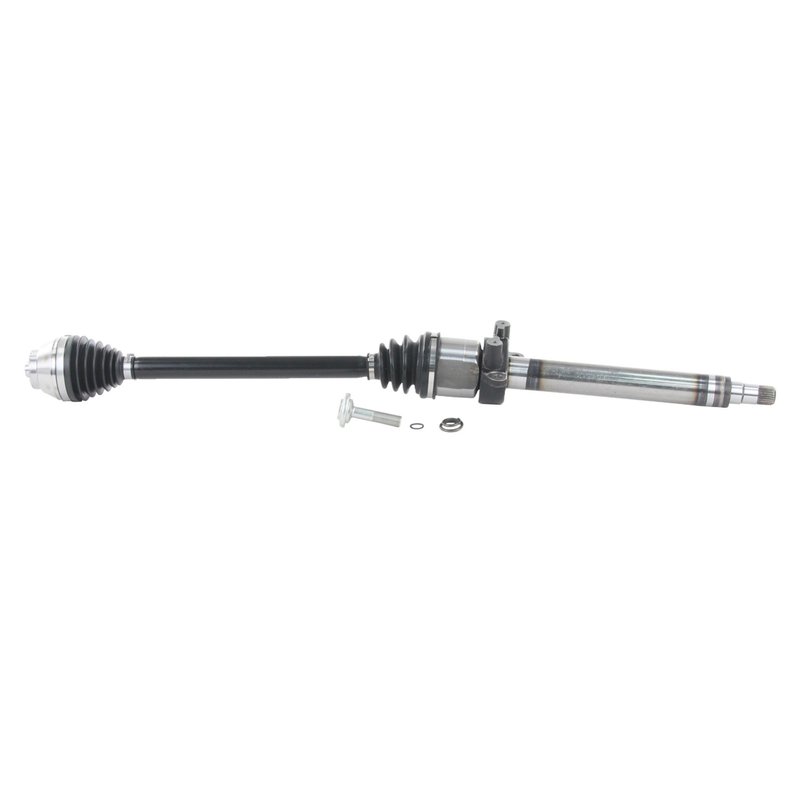

TrakMotive BM-86003 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-86003 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 83 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.375 |
| Overall Compressed Length (mm) | 1000 |
| Overall Extended Length (in) | 41.125 |
| Overall Extended Length (mm) | 1044 |
| Product line | CV Axle Shaft |
| Fits | BMW · 5 vehicles |
Premium grade. Built with neoprene and thermoplastic boots for durable CV joint protection.
Spline connection. 26- and 31-spline ends provide a precise driveline interface.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive BM-86003 for the same application. See all 1.
BMW i8 Rear Right CV Axle Shaft
TrakMotive BM-86003 is a premium CV axle shaft for the rear right position on select BMW i8 models. It is built for OE-style fitment to help maintain original ride quality on the BMW i8 rear axle.
Key Features
- Fits 2014-2017 BMW i8, rear right
- Fits 2019 BMW i8, rear right
- Premium-grade CV axle shaft for driveline service
- 26 inboard splines and 31 outboard splines
- Inboard joint boot material: neoprene
- Outboard joint boot material: thermoplastic
- Overall compressed length: 39.375 in. (1000 mm)
- Overall extended length: 41.125 in. (1044 mm)
- Axle bolt thread size: M16x1.5 with 17 mm hex and 83 mm length
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive BM-86003 is a CV axle shaft for BMW i8 rear right applications, engineered with an OEM-style configuration to match the original driveline layout. The shaft uses a long-male inboard joint with spline connection, a flat spline outboard joint, and the specified spline counts to support proper engagement in the rear driveline assembly. TrakMotive positions this part within its CV Axle Shaft line for direct replacement service on the BMW i8.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restoring rear axle function after CV joint wear
- Replacing a shaft with torn boots or grease loss
- Addressing clicking, vibration, or driveline noise from the rear right side
- Correcting spline or joint wear in the BMW i8 rear axle assembly
- Servicing a damaged axle on 2014-2017 or 2019 BMW i8 models
Installation Notes
Verify rear right fitment before installation and confirm axle bolt thread size, spline count, and compressed length against the original part. This axle does not include an axle nut. ABS axles fit non-ABS applications unless otherwise noted, and this unit is listed with no ABS tone ring included.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled manufacturing and quality processes.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | BMW | i8 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2017 | BMW | i8 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2016 | BMW | i8 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2015 | BMW | i8 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2014 | BMW | i8 | Rear Right | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
