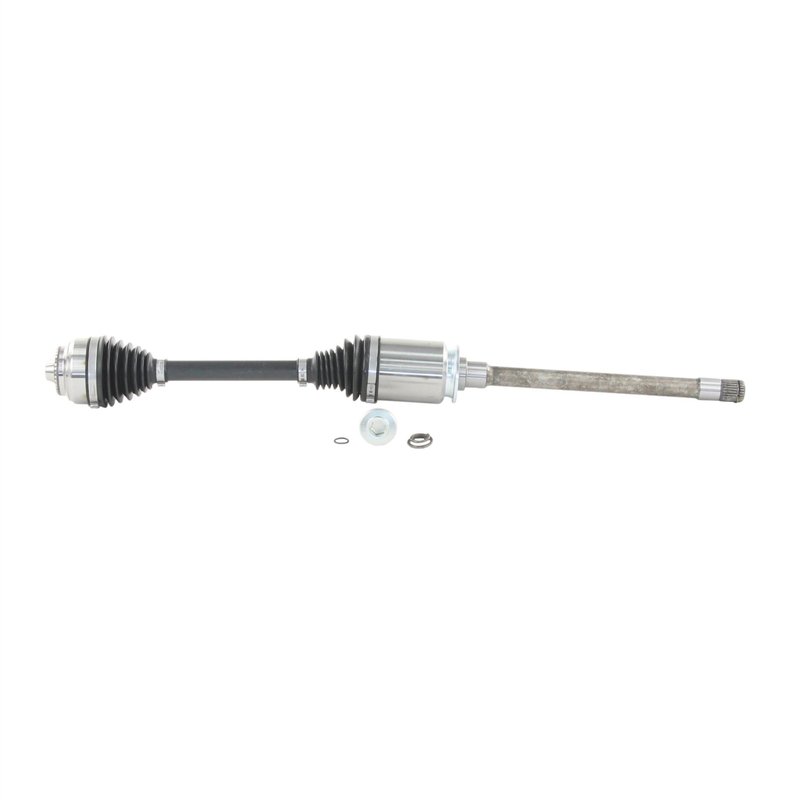

TrakMotive BM-86010 CV Axle Shaft - Front Right

Front Right CV Axle for BMW xDrive

TrakMotive BM-86010 is a premium CV axle shaft for front right applications on select BMW xDrive models. It is built to match OE AAR design requirements and is engineered for smooth driveline operation in 2011-2017 BMW 535i GT xDrive and 2013-2015 BMW 740Li xDrive applications.

Key Features

• Front right CV axle shaft for OE AAR design applications
• Premium-grade driveline replacement from TrakMotive
• 27 inboard splines and 37 outboard splines
• Long-male inboard joint type with flat spline outboard joint type
• Thermoplastic boot material on both inboard and outboard joints
• Overall compressed length: 870 mm (34.75 in)
• ABS tone ring not included; ABS ring tooth count: 0
• Axle bolt specs: 17 mm hex, M16x1.5 thread, 83 mm length

Detailed Description

TrakMotive BM-86010 is a direct-fit CV axle shaft for BMW front right driveline service where OE AAR design is required. It is engineered for 2011-2017 BMW 535i GT xDrive and 2013-2015 BMW 740Li xDrive, making it a focused replacement for BMW xDrive front axle repair. The axle uses thermoplastic boots, a long-male inboard joint, and a flat spline outboard joint to match the specified application. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Repair Symptoms

• Clicking or popping during turns from a worn front axle
• Vibration under acceleration caused by CV joint wear
• Torn boots with grease leakage
• Noise from the front right driveline area
• Excessive play in the axle assembly

Installation Notes and Tips

Verify front right position, spline count, axle bolt dimensions, and OE AAR design before installation. This axle does not include an axle nut. ABS axles fit non-ABS applications unless otherwise noted, and this unit does not include an ABS tone ring. Confirm vehicle-specific torque procedures and inspect related seals, hubs, and mounting points during service.

Quality Assurance

TrakMotive backs this AAR CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing control for BMW 535i GT xDrive and BMW 740Li xDrive front right axle replacement.
