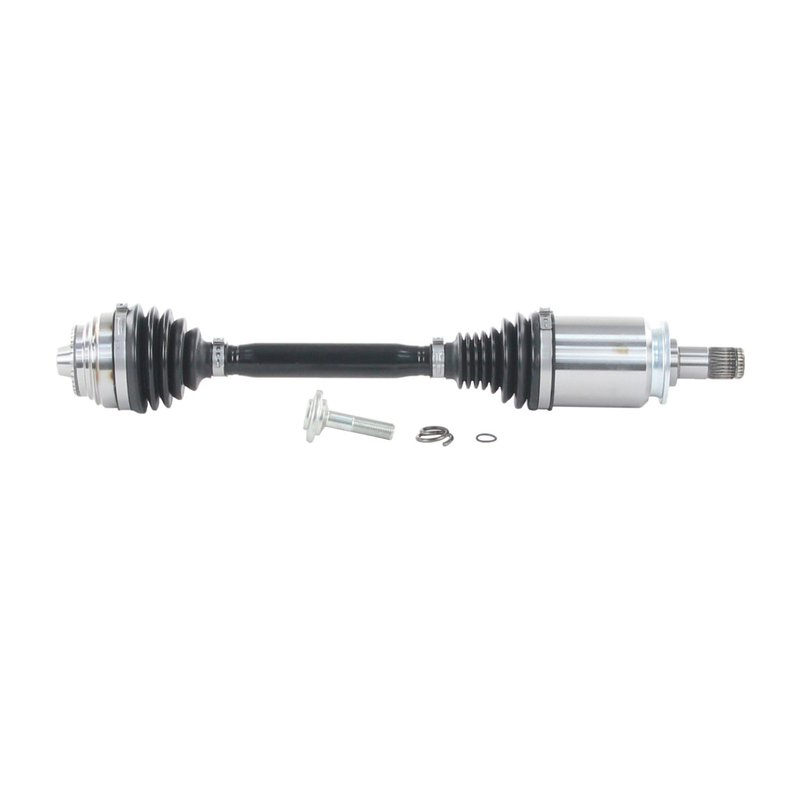

AAR CV Axle ShaftTrakMotive BM-86011 CV Axle Shaft - Front Left
| Brand | TrakMotive BM-86011 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 77 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 37 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Overall Compressed Length (in) | 22.75 |
| Overall Compressed Length (mm) | 578 |
| Product line | AAR CV Axle Shaft |
| Fits | BMW · 5 vehicles |
Cross-references TrakMotive BM-86011 for the same application. See all 1.
$404.20Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
TrakMotive BM-86011 CV Axle Shaft - Front Left
This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | BMW | 640i xDrive Gran Turismo | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | BMW | 740e xDrive | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | BMW | 640i xDrive Gran Turismo | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | BMW | 740e xDrive | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | BMW | 740e xDrive | Front Left | OE AAR design; AAR CV Axle Shaft |
| No rows match your filter. | ||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — BM-86011
