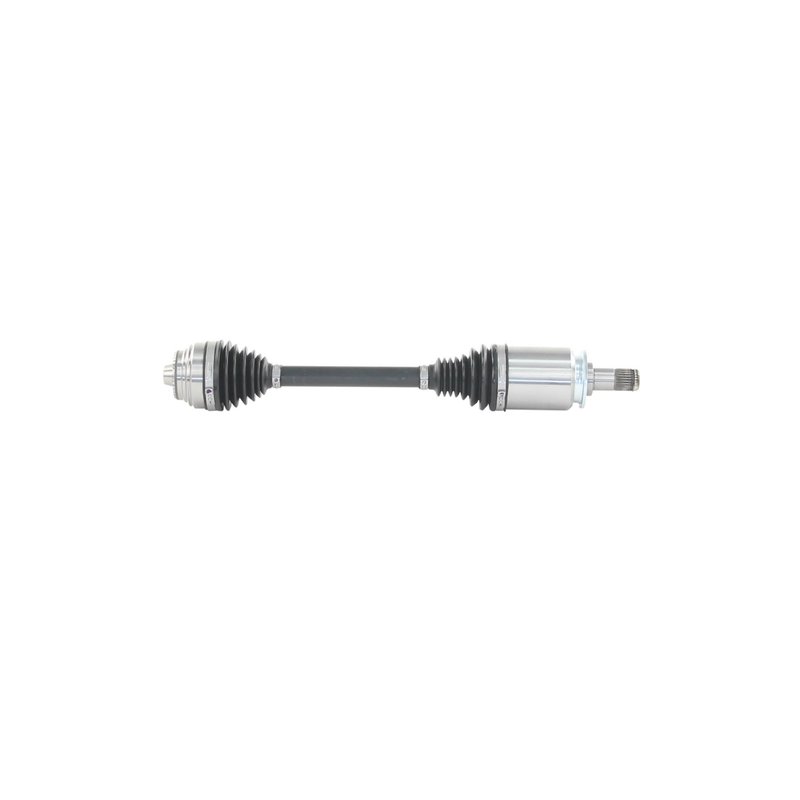

TrakMotive BM-86012 CV Axle Shaft - Front Left
| Brand | TrakMotive BM-86012 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 77 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 37 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Overall Compressed Length (in) | 22.56 |
| Overall Compressed Length (mm) | 574 |
| Product line | AAR CV Axle Shaft |
| Fits | BMW · 6 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
Thermoplastic boots. Help protect the joints from wear and contamination.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive BM-86012 for the same application. See all 1.
Front Left CV Axle Shaft for BMW 530e, 530i, 540i
Restore driveline performance with the TrakMotive AAR CV Axle Shaft, part number BM-86012. This front left axle is built for 2019-2020 BMW 530e, 530i, and 540i applications with OE AAR design requirements.
Key Features
- Front left CV axle shaft for select BMW 5 Series applications
- OE AAR design for direct replacement use
- Premium grade construction
- 27 inboard splines and 37 outboard splines
- Thermoplastic inboard and outboard joint boots
- Male inboard joint with flat spline outboard joint
- Overall compressed length: 22.56 in. (574 mm)
- ABS tone ring not included; ABS ring tooth count: 0
- Axle bolt specs: 17 mm hex, M16x1.5 thread, 77 mm length
Product Details
The TrakMotive BM-86012 is a front left CV axle shaft engineered for 2019-2020 BMW 530e, 530i, and 540i models. It follows an OE AAR design and uses a premium-grade build with thermoplastic boot materials for the inboard and outboard joints. TrakMotive identifies this AAR CV Axle Shaft line as part of its driveline and axle component range for precise replacement needs.
This part cross-references TrakMotive BM-86012 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns
- Vibration felt through the drivetrain under acceleration
- Grease leakage from damaged CV boots
- Worn splines or joint wear at the axle assembly
- Loss of smooth power transfer to the front left wheel
Installation Notes and Tips
Verify front left fitment before installation on 2019-2020 BMW 530e, 530i, or 540i models. Confirm axle bolt thread size, hex size, and compressed length against the original part before assembly. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and product consistency.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | BMW | 530e | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | BMW | 530i | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | BMW | 540i | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | BMW | 530e | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | BMW | 530i | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | BMW | 540i | Front Left | OE AAR design; AAR CV Axle Shaft |
