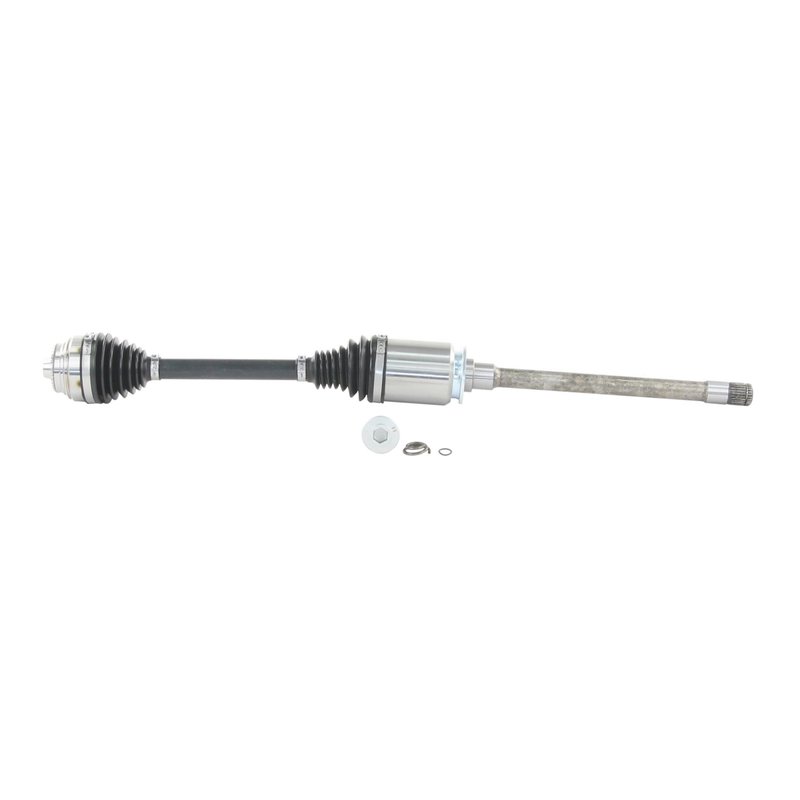

TrakMotive BM-86013 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-86013 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 77 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 37 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Overall Compressed Length (in) | 34.44 |
| Overall Compressed Length (mm) | 874 |
| Product line | AAR CV Axle Shaft |
| Fits | BMW · 6 vehicles |
AAR CV axle shaft. Premium-grade driveline component for dependable power transfer.
Thermoplastic boots. Help protect the joints from dirt and moisture.
ISO certified manufacturing. Built by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive BM-86013 for the same application. See all 1.
Front Right CV Axle Shaft for BMW AAR Applications
TrakMotive BM-86013 is a premium CV axle shaft for the front right position on select 2019-2020 BMW 530e, 530i, and 540i models. It is built for OE AAR design applications and is engineered to match the original driveline layout for a direct replacement.
Key Features
- Front right CV axle shaft for BMW driveline repair
- OE AAR design application for select 2019-2020 BMW 530e, 530i, and 540i
- Premium grade construction
- 27 inboard splines and 37 outboard splines
- Thermoplastic inboard and outboard joint boots
- Long-male inboard joint type with flat spline outboard joint type
- Overall compressed length: 34.44 in. (874 mm)
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive BM-86013 is a front right CV axle shaft for BMW 530e, BMW 530i, and BMW 540i models from 2019-2020. This AAR CV Axle Shaft is built for OE-style fitment in applications that use the AAR design, with a 17 mm axle bolt hex size, M16x1.5 axle bolt thread, and no axle nut included. The shaft measures 34.44 inches compressed and uses thermoplastic boot materials for the inboard and outboard joints. TrakMotive BM-86013 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.
This part cross-references TrakMotive BM-86013 for the same application.
Common Repair Uses
- Restores a worn or noisy front right CV axle on BMW 530e, 530i, or 540i
- Addresses clicking or popping during turns caused by CV joint wear
- Replaces a damaged axle shaft with spline or boot wear
- Helps correct vibration from a failing driveline component
- Supports repair after axle seal or joint contamination
Installation Notes and Tips
Verify the OE AAR design, spline count, compressed length, and axle bolt specifications before installation. Confirm front right placement and compare the original axle to BM-86013 to ensure proper fit on the BMW 530e, 530i, or 540i application. Inspect related seals, hubs, and mounting points during service.
Quality Assurance
TrakMotive BM-86013 is backed by a limited lifetime warranty. The brand notes that ABS axles fit non-ABS applications unless otherwise noted, and the product comes from an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | BMW | 530e | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | BMW | 530i | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | BMW | 540i | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | BMW | 530e | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | BMW | 530i | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | BMW | 540i | Front Right | OE AAR design; AAR CV Axle Shaft |
