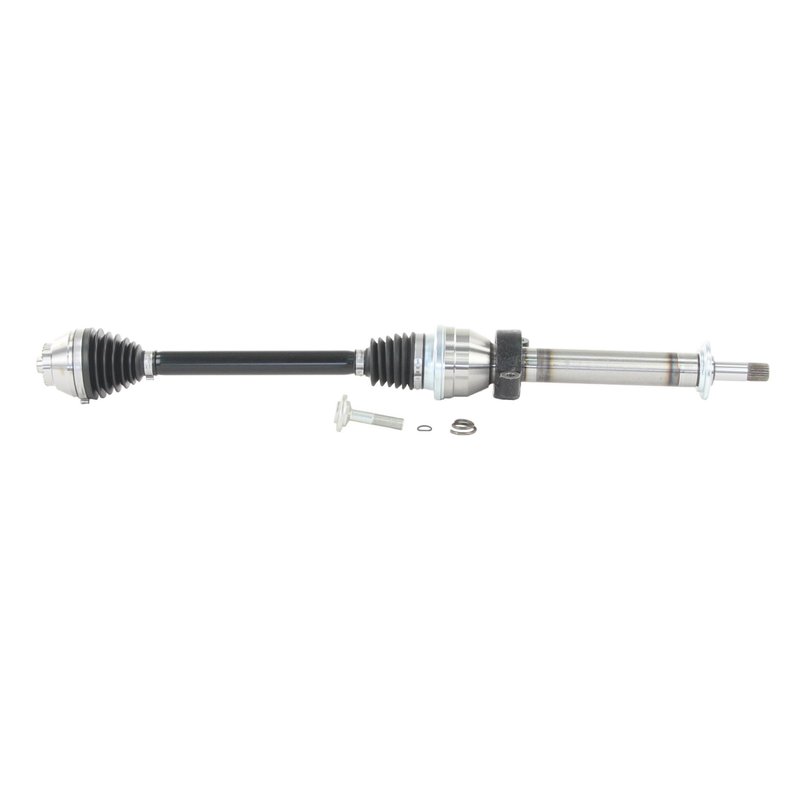

TrakMotive BM-86018 CV Axle Shaft - Front Left

BMW i8 Front Left CV Axle Shaft

TrakMotive BM-86018 is a premium CV axle shaft for the front left position on select BMW i8 models. It is built to match OEM-style fitment and help preserve original ride quality on the applications listed below.

Key Features

• Fits 2014-2017 BMW i8, front left
• Fits 2019 BMW i8, front left
• Premium-grade CV axle shaft for driveline service
• Long-male inboard joint design
• Flat spline outboard joint type
• Thermoplastic boot material on both joints
• 22 inboard splines and 31 outboard splines
• Overall compressed length: 943 mm (35.44 in)
• ABS tone ring not included; ABS ring tooth count: 0

Detailed Description

TrakMotive BM-86018 is a CV axle shaft engineered for the front left side of the BMW i8. The axle uses a long-male inboard joint, a flat spline outboard joint, and thermoplastic boots to support consistent driveline operation in the specified applications. This BMW i8 CV axle shaft is a direct-fit replacement for 2014-2017 and 2019 models listed in the fitment data, and it is intended to maintain the original ride quality associated with OEM-style axle geometry. The BM-86018 part number is also the reference to use when matching this axle for service work on the BMW i8 front left position.

TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with this BM-86018 application built around the exact spline counts, compressed length, and joint configuration needed for the listed BMW i8 fitments. TrakMotive BM-86018 is the part number to verify when ordering for these vehicles.

What It Helps Address

• Clicking or popping from a worn front left CV joint
• Vibration during acceleration from axle wear
• Grease leakage from damaged CV boots
• Axle play caused by worn splines or joint components
• Driveline noise from a failing front axle assembly

Installation Notes and Tips

Confirm front left fitment by year, make, model, and axle configuration before installation. Verify the axle bolt uses a 17 mm hex size, M16x1.5 thread, and 83 mm length where applicable. This axle does not include an axle nut. ABS tone ring is not included, and the axle is listed with no ABS ring tooth count. Compare the original axle’s spline counts, compressed length, and joint style to BM-86018 before final assembly.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing standards.
