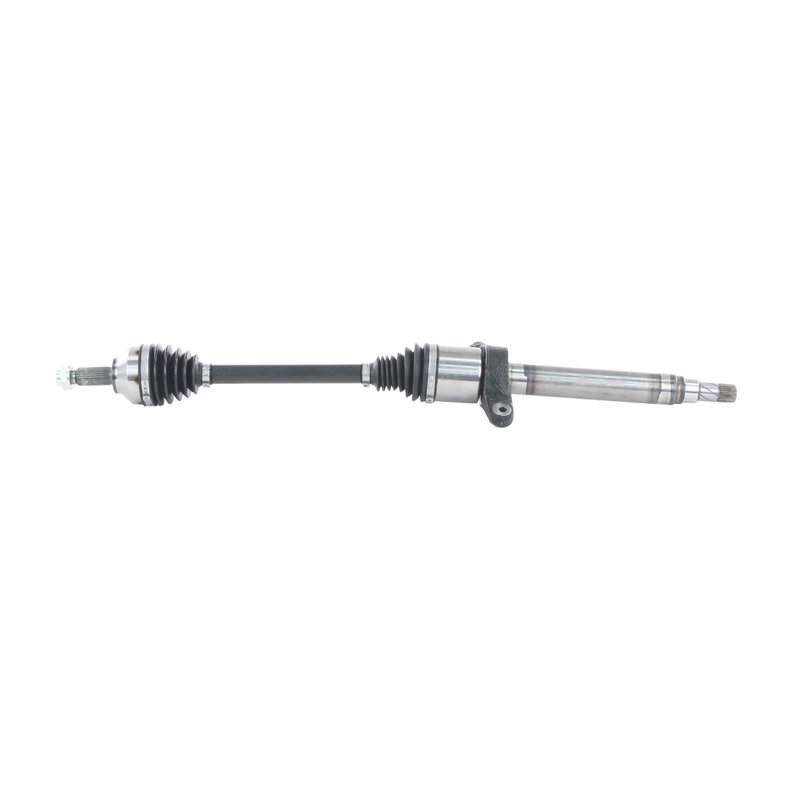

TrakMotive BM-86021 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive BM-86021 CV Axle Shaft - Front Right

Brand TrakMotive BM-86021
Position Front Right
ABS Ring Tooth Count 0
ABS Tone Ring Included No
Axle Nut Height (mm) 20
Axle Nut Hex Size (mm) 32
Axle Nut Included No
Axle Nut Socket Size 32
Axle Nut Thread Size M22x1.5
Grade Type Premium
Inboard Joint Boot Material Thermoplastic
Inboard Joint Type Long-male
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 33
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 26
Outboard Joint Boot Material Thermoplastic
Outboard Joint Type Conventional
Overall Compressed Length (in) 36.31
Overall Compressed Length (mm) 922
Overall Extended Length (in) 38.31
Overall Extended Length (mm) 973
Product line CV Axle Shaft
Fits Mini · 10 vehicles

Premium grade. CV axle shaft built with thermoplastic boots for durable joint protection.

ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.

Certified quality. ISO 9001:2008 and TS 16949:2009 certified manufacturing.

Cross-references TrakMotive BM-86021 and NCV49054 for the same application. See all 2.

$159.85Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $159.85
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Front Right CV Axle Shaft for Mini

TrakMotive BM-86021 is a premium CV axle shaft for front right applications on select Mini models. It is built for 2011-2016 Mini Cooper Countryman and 2013-2016 Mini Cooper Paceman fitments, with OE-style spline counts and dimensions for direct replacement service.

Key Features

  • Fits 2011-2016 Mini Cooper Countryman, front right
  • Fits 2013-2016 Mini Cooper Paceman, front right
  • Premium-grade CV axle shaft from TrakMotive
  • 33 inboard splines and 26 outboard splines
  • Overall compressed length: 922 mm (36.31 in)
  • Overall extended length: 973 mm (38.31 in)
  • Thermoplastic inboard and outboard joint boots
  • Long-male inboard joint type with conventional outboard joint
  • 32 mm axle nut hex size, M22x1.5 thread size
  • No ABS tone ring included; ABS ring tooth count: 0

Product Details

TrakMotive CV Axle Shaft BM-86021 is engineered for front right driveline replacement on the Mini Cooper Countryman and Mini Cooper Paceman applications listed above. The axle uses a 33-spline inboard connection and 26-spline outboard connection, along with measured compressed and extended lengths that support proper fitment in the specified vehicles. TrakMotive identifies this CV axle shaft as a premium replacement and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing processes.

This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Repair Uses

  • Restoring drivetrain operation after a worn or noisy CV joint
  • Replacing a damaged front right axle on a Mini Cooper Countryman
  • Replacing a failed front right axle on a Mini Cooper Paceman
  • Addressing vibration, clicking, or binding during turns
  • Correcting axle wear from torn boots or grease loss

Installation Notes

Verify front right fitment by year, model, spline count, and axle dimensions before installation. This axle does not include an axle nut, and the specified nut thread size is M22x1.5 with a 32 mm hex size. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.

Quality Assurance

TrakMotive BM-86021 is backed by a limited lifetime warranty. It is produced by an ISO 9001:2008 and TS 16949:2009 certified company.

Related reading

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelTransmissionPositionNotes
2016MiniCooper CountrymanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2016MiniCooper PacemanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2015MiniCooper CountrymanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2015MiniCooper PacemanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2014MiniCooper CountrymanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2014MiniCooper PacemanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2013MiniCooper CountrymanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2013MiniCooper PacemanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2012MiniCooper CountrymanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
2011MiniCooper CountrymanBaseManualFront RightStandard Duty Replacement; CV Axle Shaft
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — BM-86021NCV49054
