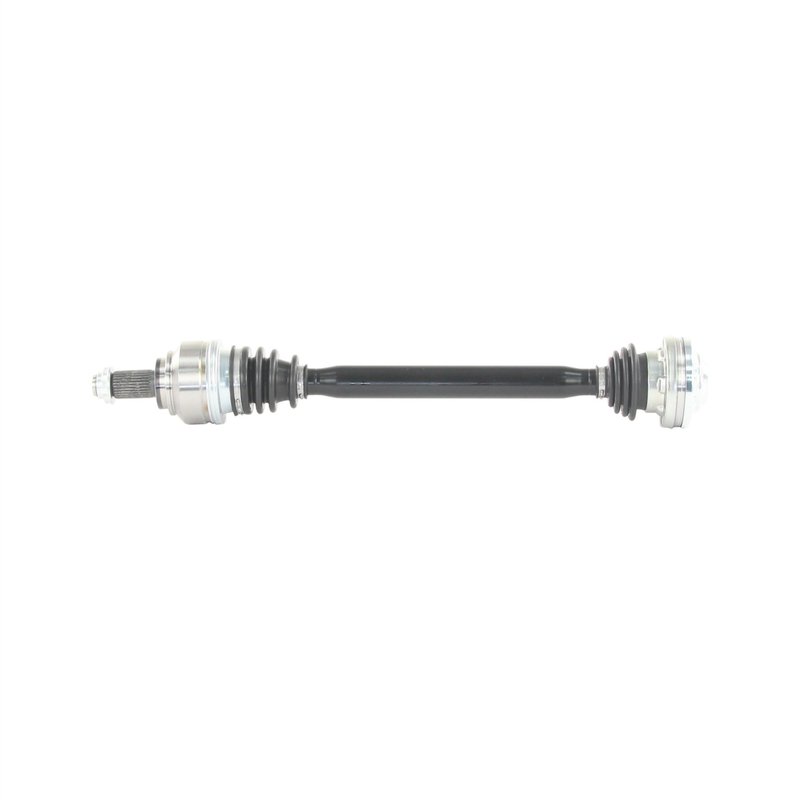

TrakMotive BM-86022 CV Axle Shaft - Rear Right
| Brand | TrakMotive BM-86022 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .63 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1.42 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.06 |
| Overall Compressed Length (mm) | 663 |
| Overall Extended Length (in) | 28.88 |
| Overall Extended Length (mm) | 734 |
| Product line | CV Axle Shaft |
| Fits | BMW · 3 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
Bolt-on inboard joint. Simplifies installation with a 6-bolt connection.
ABS-ready design. Includes no tone ring for non-ABS applications.
Cross-references TrakMotive BM-86022 for the same application. See all 1.
BMW 335i xDrive Rear Right CV Axle Shaft
TrakMotive BM-86022 is a premium CV axle shaft for the rear right position on select 2011-2013 BMW 335i xDrive models with single turbo. It is built for direct driveline service on the BMW 335i xDrive rear right application and follows the fitment and dimensional details needed for a proper replacement.
Key Features
- Fits 2011-2013 BMW 335i xDrive, rear right
- Premium-grade CV axle shaft for driveline repair
- Conventional outboard joint design
- Bolt-on inboard joint with 6 bolt holes
- 30 outboard splines
- Overall compressed length: 26.06 in. (663 mm)
- Overall extended length: 28.88 in. (734 mm)
- 36 mm axle nut hex size with M27x1.5 thread size
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive BM-86022 CV axle shaft is engineered for the rear right side of the 2011-2013 BMW 335i xDrive with single turbo. This BMW 335i xDrive rear right axle shaft uses a bolt-on inboard joint, a conventional outboard joint, and the listed spline and length specifications to match the original driveline layout. TrakMotive positions this CV axle shaft within its CV Axle Shaft line for replacement work where accurate fitment and OE-style dimensions matter. This part number, BM-86022, is the direct reference for ordering and verification.
This part cross-references TrakMotive BM-86022 for the same application.
Common Repair Uses
- Restores a worn or noisy rear right CV axle on a BMW 335i xDrive
- Addresses clicking or vibration during acceleration and turning
- Replaces a damaged axle shaft with incorrect spline or length dimensions
- Helps correct driveline play caused by joint wear
- Supports repair after boot failure or grease loss
Installation Notes and Tips
Verify rear right placement, axle nut thread size, and spline count before installation. Confirm the vehicle is a 2011-2013 BMW 335i xDrive with single turbo and compare the compressed and extended lengths to the removed axle. The axle nut is not included, so reuse or replace hardware according to service requirements and torque specifications.
Quality Assurance
TrakMotive lists this CV axle shaft as a premium part and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Body Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | BMW | 335i xDrive | Coupe | Manual | Rear Right | With Single Turbo; CV Axle Shaft |
| 2012 | BMW | 335i xDrive | — | Manual | Rear Right | With Single Turbo; CV Axle Shaft |
| 2011 | BMW | 335i xDrive | — | Manual | Rear Right | With Single Turbo; CV Axle Shaft |
