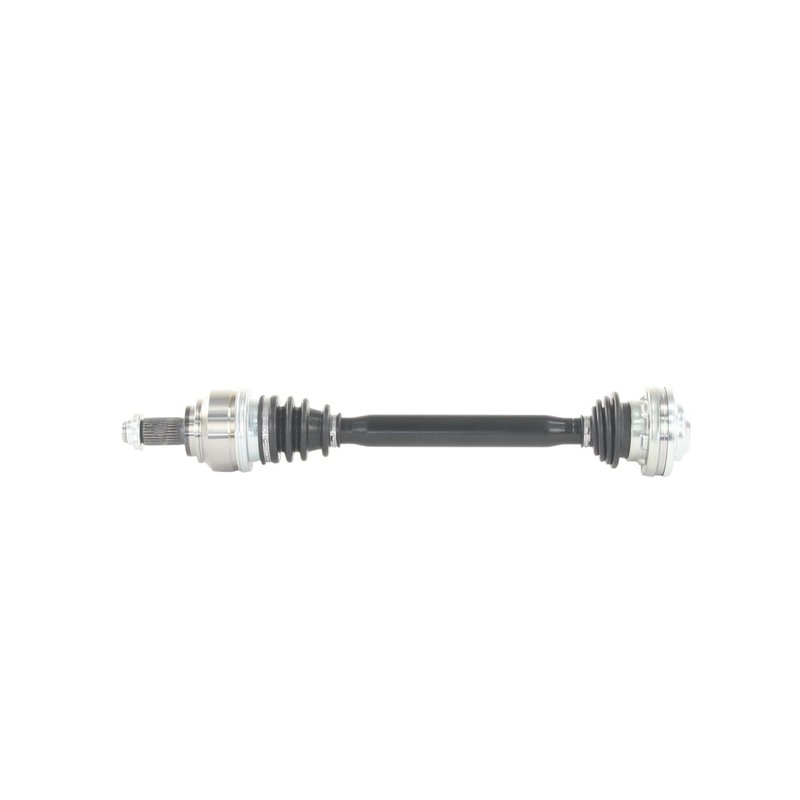

TrakMotive BM-86023 CV Axle Shaft - Rear Left

BMW 335i xDrive Rear Left CV Axle Shaft

TrakMotive BM-86023 is a premium CV axle shaft for the rear left position on 2011-2013 BMW 335i xDrive models. It is built as an OEM-style axle to help maintain original ride quality and driveline feel on the BMW 335i xDrive rear left application.

Key Features

• Fits 2011-2013 BMW 335i xDrive, rear left
• Premium-grade CV axle shaft for driveline service
• Conventional outboard joint design
• Bolt-on inboard joint with 6 bolt holes
• 30 outboard splines
• Overall compressed length: 24.06 in. (611 mm)
• Overall extended length: 26.88 in. (682 mm)
• 36 mm axle nut hex size with M27x1.5 thread size
• No ABS tone ring included; ABS ring tooth count: 0

Detailed Description

TrakMotive BM-86023 is a CV axle shaft engineered for the rear left side of the 2011, 2012, and 2013 BMW 335i xDrive. The axle uses a bolt-on inboard joint and a conventional outboard joint, with dimensions and spline count matched to the listed application. This BMW 335i xDrive rear left CV axle shaft is a direct-fit driveline replacement for restoring axle function and maintaining OEM-style ride quality.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Clicking or popping from a worn CV joint
• Vibration during acceleration or at speed
• Axle shaft play or looseness at the driveline
• Boot or joint wear that affects axle operation
• Loss of smooth power transfer to the rear wheel

Installation Notes and Tips

Verify rear left fitment before ordering. Confirm axle nut thread size, hex size, spline count, and overall length against the original part. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Professional installation is recommended for proper torque and alignment during replacement.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting consistent manufacturing and quality control for driveline components.
