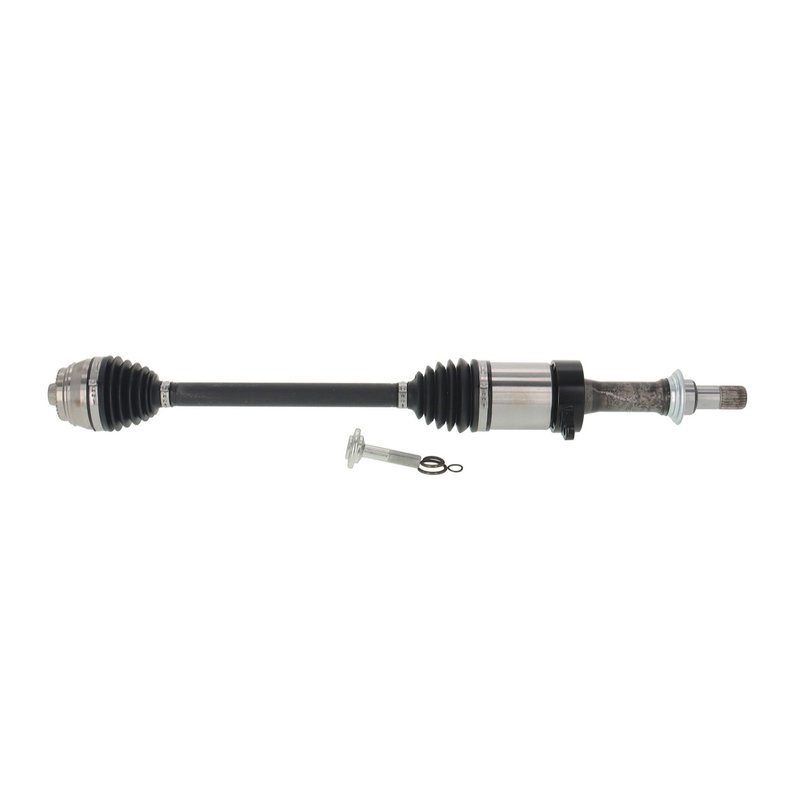

TrakMotive BM-86031 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-86031 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 77 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 37 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32 |
| Overall Compressed Length (mm) | 813 |
| Overall Extended Length (in) | 34.375 |
| Overall Extended Length (mm) | 873 |
| Product line | AAR CV Axle Shaft |
| Fits | BMW · 2 vehicles |
AAR CV axle shaft. Premium replacement for dependable driveline performance.
Thermoplastic boots. Helps protect the joints from dirt and moisture.
ISO certified manufacturing. Built by a company certified to recognized quality standards.
Cross-references TrakMotive BM-86031 for the same application. See all 1.
BMW iX Front Right CV Axle Shaft
TrakMotive BM-86031 is a front right CV axle shaft for 2022-2023 BMW iX applications with OE AAR design. It is built as a premium driveline replacement for the front right position and is listed for the BMW iX in 2022 and 2023.
Key Features
- Fits 2022-2023 BMW iX, front right
- OE AAR design for the listed application
- Premium-grade CV axle shaft construction
- Long-male inboard joint type with spline connection
- Flat spline outboard joint type with spline connection
- Thermoplastic boots on the inboard and outboard joints
- 27 inboard splines and 37 outboard splines
- ABS tone ring not included; ABS ring tooth count is 0
- Overall compressed length: 32 in. (813 mm)
- Overall extended length: 34.375 in. (873 mm)
Product Details
TrakMotive AAR CV Axle Shaft BM-86031 is engineered for the front right side of the BMW iX and follows the OE AAR design specified for this application. The axle uses spline connections at both ends, a long-male inboard joint, and a flat spline outboard joint to match the listed fitment. TrakMotive identifies this part as a premium-grade driveline component, and the company states its products are manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems.
This part cross-references TrakMotive BM-86031 for the same application.
What It Helps Address
- Clicking or popping from a worn front right CV axle
- Vibration during acceleration from driveline wear
- Grease leakage from damaged axle boots
- Axle noise caused by spline or joint wear
- Loss of smooth power transfer to the front wheel
Installation Notes
Verify the vehicle is a 2022-2023 BMW iX and confirm front right placement before ordering. Check spline counts, axle bolt thread size M16x1.5, axle bolt hex size 17 mm, and compressed or extended length against the original part. This axle does not include an axle nut, and the ABS tone ring is not included.
Quality Assurance
TrakMotive backs this AAR CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing quality systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | BMW | iX | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | BMW | iX | Front Right | OE AAR design; AAR CV Axle Shaft |
