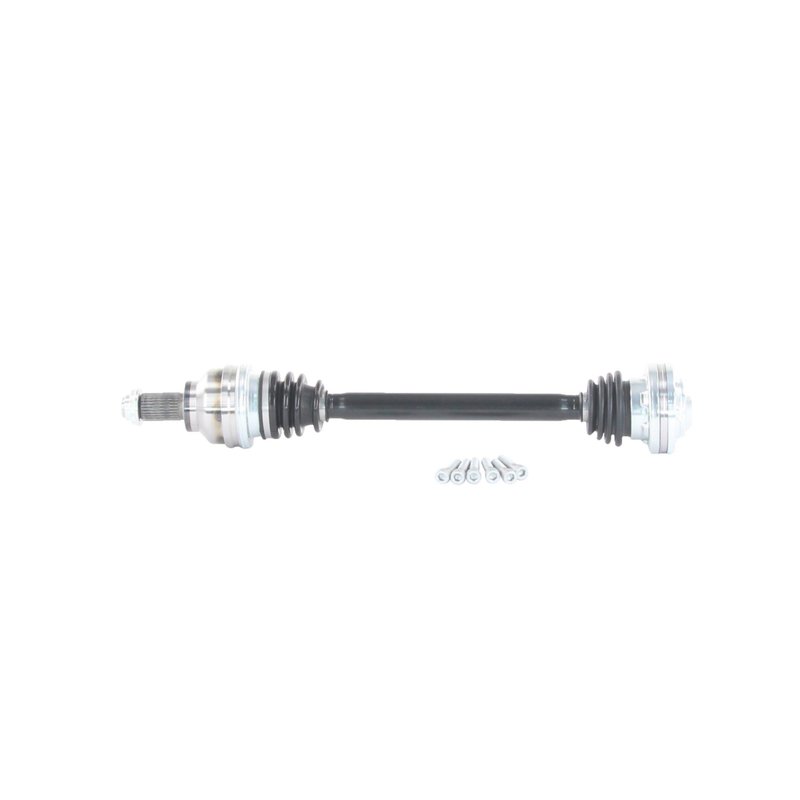

TrakMotive BM-86035 CV Axle Shaft - Rear
| Brand | TrakMotive BM-86035 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .63 |
| Axle Nut Height (mm) | 16 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M27x1.5 |
| Grade Type | Premium |
| Inboard Bolt Head Size (in) | .31 |
| Inboard Bolt Head Size (mm) | 8 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.19 |
| Inboard Bolt Length (mm) | 55 |
| Inboard Bolt Thread Size | M10x1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Product line | CV Axle Shaft |
| Fits | BMW · 7 vehicles |
Bolt-on design. Simplifies installation with a secure, direct-fit connection.
Neoprene boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO and TS certified company.
Cross-references TrakMotive BM-86035 for the same application. See all 1.
BMW Rear CV Axle Shaft BM-86035
TrakMotive BM-86035 is a rear CV axle shaft for select BMW 5 Series applications, built for 1997-2000 BMW 528i and 2001-2003 BMW 525i models. This OEM-style axle is specified to help retain original ride quality while restoring driveline function on the rear axle.
Key Features
- Rear CV axle shaft for BMW 525i and BMW 528i applications
- OEM-style design to retain original ride quality
- Premium grade construction
- Neoprene inboard and outboard joint boots
- 30 outboard splines and bolt-on inboard joint design
- Includes axle nut with M27x1.5 thread, 36 mm hex size, and stake locking type
- Overall compressed length: 24.625 in. (625 mm)
- Overall extended length: 27.06 in. (688 mm)
Detailed Description
TrakMotive BM-86035 is a rear CV axle shaft engineered for BMW 5 Series rear driveline service, including 1997-2000 BMW 528i and 2001-2003 BMW 525i models. The axle uses a bolt-on inboard joint with six inboard shaft bolts and a conventional outboard joint with spline connection, making it a direct-fit style replacement for the listed applications. TrakMotive positions this CV axle shaft as an OEM-style solution for maintaining the factory driving feel on BMW 525i and BMW 528i rear axle service.
The axle features neoprene boot material at both joints, a 30-spline outboard connection, and premium-grade construction. It also includes the axle nut specified for the application. TrakMotive BM-86035 cross-references TrakMotive BM-86035 for the same application.
What It Helps Fix
- Clicking or popping noises from the rear CV joint during turns or acceleration
- Vibration felt through the driveline at speed
- Grease leakage from a torn or worn axle boot
- Excessive play in the rear axle assembly
- Loss of smooth power transfer from the differential to the wheel hub
Installation Notes and Tips
Verify rear fitment by matching the vehicle year, model, and axle connection style before installation. Confirm axle nut thread size, hex size, and locking type against the original hardware and service information. Inspect the mating flanges, seals, and hub components for wear before installing the new axle shaft. For BMW 528i rear and BMW 525i rear applications, proper torque procedures and final fastener staking are important for correct service.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, reflecting documented quality management standards for driveline components.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2003 | BMW | 525i | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2002 | BMW | 525i | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2001 | BMW | 525i | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 2000 | BMW | 528i | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 1999 | BMW | 528i | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 1998 | BMW | 528i | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
| 1997 | BMW | 528i | Manual | Rear | OEM Style Axle to Retain Original Ride Quality; CV Axle Shaft |
