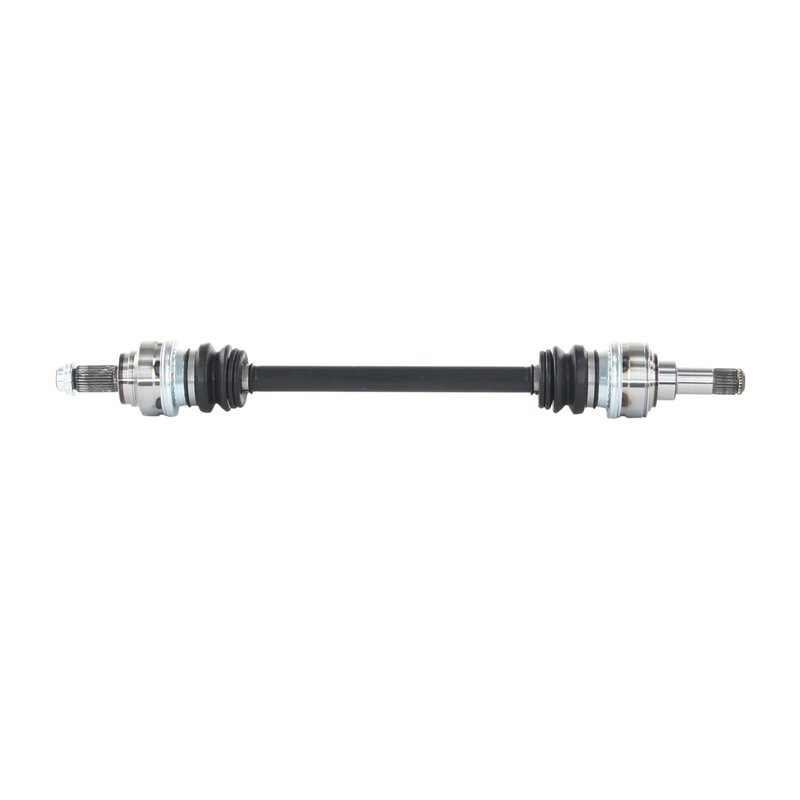

TrakMotive BM-86039 CV Axle Shaft - Rear Left
| Brand | TrakMotive BM-86039 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.69 |
| Axle Nut Height (mm) | 17 |
| Axle Nut Hex Size (in) | 1.19 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.31 |
| Axle Nut Length (mm) | 34 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29.44 |
| Overall Compressed Length (mm) | 748 |
| Overall Extended Length (mm) | 814 |
| Overall Extended Length(In) | 32.06 |
| Product line | CV Axle Shaft |
| Fits | BMW · 11 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Neoprene boots. Durable boot material helps protect the joints from wear.
Premium grade. Built to meet demanding driveline performance needs.
Cross-references TrakMotive BM-86039 for the same application. See all 1.
BMW Rear Left CV Axle Shaft BM-86039
TrakMotive BM-86039 is a premium CV axle shaft for rear left applications on select BMW models. It is built for direct replacement service with the correct spline counts, axle nut specification, and compressed length needed for the listed fitments.
Key Features
- Rear left CV axle shaft for BMW driveline repair
- Premium grade construction
- 27 inboard splines and 28 outboard splines
- Neoprene boots on both joints
- Male inboard joint with spline connection style
- Conventional outboard joint design
- Includes axle nut with M24x1.5 thread, 30 mm hex size, and stake locking type
- Overall compressed length: 29.44 in (748 mm)
- Overall extended length: 32.06 in (814 mm)
- ABS tone ring not included
Product Details
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. BM-86039 follows that approach with application-specific dimensions and spline counts for rear left service on the BMW 228i, 230i, 330e, and ActiveHybrid 3. The axle uses neoprene boot material at both joints for consistent joint protection, and the included axle nut is specified to match the application.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Vehicle Fitment
- Fits 2014-2016 BMW 228i, rear left. Standard Duty Replacement; CV Axle Shaft.
- Fits 2017-2018 BMW 230i, rear left. Standard Duty Replacement; CV Axle Shaft.
- Fits 2016-2018 BMW 330e, rear left. Standard Duty Replacement; CV Axle Shaft.
- Fits 2013-2015 BMW ActiveHybrid 3, rear left. Standard Duty Replacement; CV Axle Shaft.
Installation Notes
Verify rear left placement, spline count, axle nut thread size, and overall length before installation. This axle is listed for non-ABS applications unless otherwise noted, and the ABS tone ring is not included. Confirm the vehicle’s original configuration against the fitment data before assembly.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company states that its manufacturing is certified to ISO 9001:2008 and TS 16949:2009 standards.
| Year | Make | Model | Body Type | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | BMW | 230i | — | RWD | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | BMW | 330e | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | BMW | 230i | — | RWD | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | BMW | 330e | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | BMW | 228i | Coupe | RWD | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | BMW | 330e | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | BMW | 228i | Coupe | RWD | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | BMW | ActiveHybrid 3 | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2014 | BMW | 228i | — | RWD | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2014 | BMW | ActiveHybrid 3 | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2013 | BMW | ActiveHybrid 3 | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
