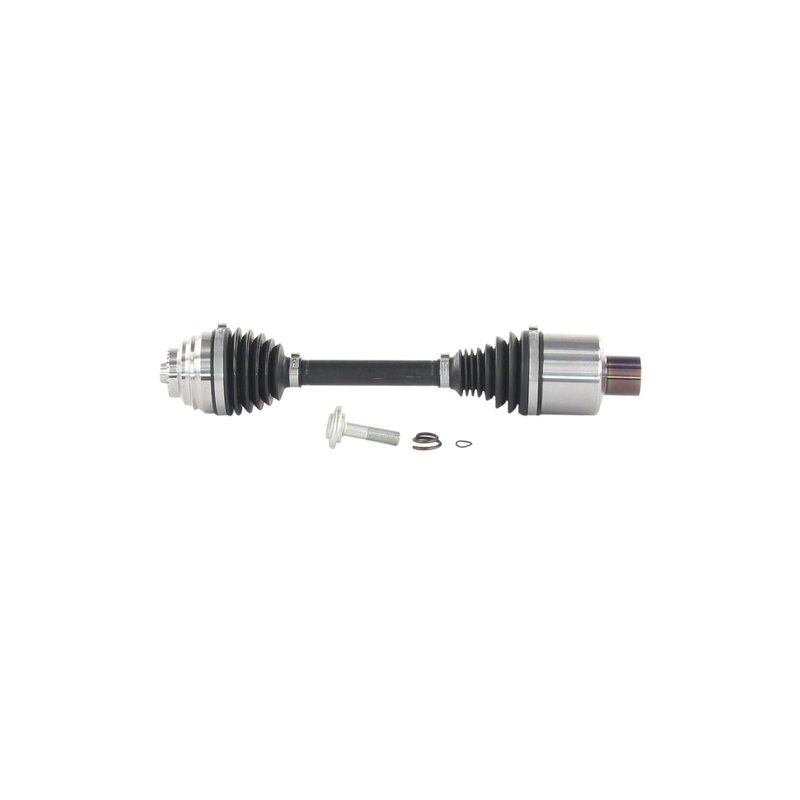

TrakMotive BM-86041 CV Axle Shaft - Front Right
| Brand | TrakMotive BM-86041 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 77 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 35, 1 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 19.625 |
| Overall Compressed Length (mm) | 499 |
| Overall Extended Length (mm) | 547 |
| Overall Extended Length(In) | 21.5 |
| Product line | CV Axle Shaft |
| Fits | BMW and Mini · 16 vehicles |
Premium grade. A quality-built CV axle shaft for dependable driveline service.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Spline connections. Designed with spline-style shaft connections for secure engagement.
Cross-references TrakMotive BM-86041 for the same application. See all 1.
Front Right CV Axle Shaft for BMW and Mini
TrakMotive BM-86041 is a premium CV axle shaft for front right applications on select BMW and Mini models. It is built for standard duty replacement service and is engineered for direct driveline restoration on vehicles such as the BMW X1, BMW X2, BMW 228i xDrive Gran Coupe, BMW M235i xDrive Gran Coupe, and Mini Cooper Countryman.
Key Features
- Front right CV axle shaft for driveline repair
- Premium grade construction
- Inboard joint type: female
- Inboard shaft connection style: spline
- Outboard joint type: flat spline
- Thermoplastic boot material on inboard and outboard joints
- ABS tone ring not included; ABS ring tooth count: 0
- Axle bolt thread size: M16x1.5
- Axle bolt hex size: 17 mm
- Overall compressed length: 499 mm (19.625 in)
- Overall extended length: 547 mm (21.5 in)
Product Details
TrakMotive BM-86041 is a CV axle shaft for front right placement in 2020-2023 BMW 228i xDrive Gran Coupe, 2020-2023 BMW M235i xDrive Gran Coupe, 2020-2023 BMW X2, 2020-2022 BMW X1, and 2020 Mini Cooper Countryman applications. The axle uses a 35-spline inboard connection and a 31-spline outboard connection, with a thermoplastic boot design intended to support consistent joint protection in standard duty replacement service. TrakMotive positions this CV axle shaft line as a direct replacement driveline component for restoring torque transfer and front-wheel drive function on the listed vehicles. This part cross-references TrakMotive BM-86041 for the same application.
Common Repair Applications
- Clicking or popping noises during turns from a worn front right CV axle
- Vibration or shudder during acceleration from driveline wear
- Torn CV boots with grease loss at the axle assembly
- Excessive play in the front right axle shaft
- Restoring driveline operation after axle joint damage
Installation Notes
Verify front right fitment by year, model, and drivetrain before installation. Confirm axle bolt thread size M16x1.5 and 17 mm hex requirements during service, and compare compressed and extended lengths to the original axle before assembly. This axle is listed for non-ABS applications unless otherwise noted, and the ABS tone ring is not included.
Quality Assurance
TrakMotive BM-86041 is backed by a limited lifetime warranty. TrakMotive states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | BMW | 228i xDrive Gran Coupe | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2023 | BMW | M235i xDrive Gran Coupe | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2023 | BMW | X2 | xDrive28i | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | BMW | 228i xDrive Gran Coupe | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | BMW | M235i xDrive Gran Coupe | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | BMW | X1 | — | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | BMW | X2 | xDrive28i | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | BMW | 228i xDrive Gran Coupe | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | BMW | M235i xDrive Gran Coupe | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | BMW | X1 | — | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | BMW | X2 | xDrive28i | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | BMW | 228i xDrive Gran Coupe | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | BMW | M235i xDrive Gran Coupe | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | BMW | X1 | — | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | BMW | X2 | xDrive28i | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Mini | Cooper Countryman | S ALL4 | AWD | Front Right | Standard Duty Replacement; CV Axle Shaft |
