OE Quality
60-Day Returns
TrakMotivePart #: BM-86043

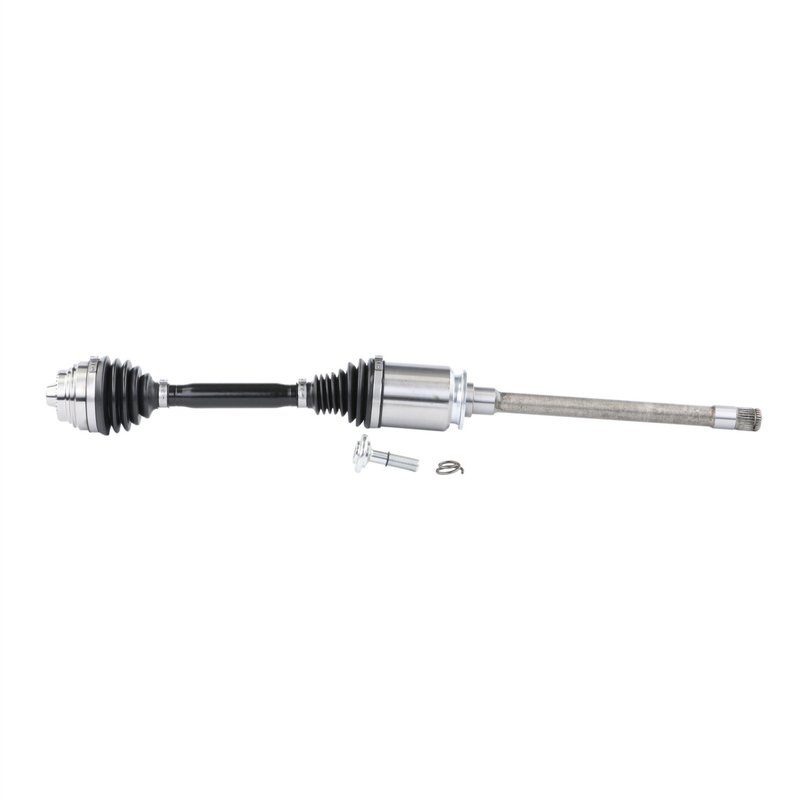

TrakMotive BM-86043 CV Axle Shaft - Front Right
5 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$263.34Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
AAR CV Axle Shaft, Front Right
Fitment: BMW, 330e xDrive, 330i xDrive, and M340i xDrive
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive BM-86043 CV Axle Shaft - Front Right
| Brand | TrakMotive |
|---|---|
| Part Number | BM-86043 |
| Position | AAR CV Axle Shaft, Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 17 |
| Axle Bolt Length (mm) | 77 |
| Axle Bolt Thread Size | M16x1.5 |
| Axle Nut Included | No |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 1 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 37 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Flat spline |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 33.69 |
| Overall Compressed Length (mm) | 855 |
| Overall Extended Length (in) | 36.31 |
| Overall Extended Length (mm) | 923 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2021 | BMW | 330e xDrive | Front Right | Mexico Built; AAR CV Axle Shaft | |
| 2021 | BMW | 330i xDrive | Front Right | Mexico Built; AAR CV Axle Shaft | |
| 2020 | BMW | 330i xDrive | Front Right | OE AAR design; AAR CV Axle Shaft | |
| 2020 | BMW | M340i xDrive | Front Right | OE AAR design; AAR CV Axle Shaft | |
| 2019 | BMW | 330i xDrive | Sedan | Front Right | OE AAR design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
BM-86043NCV27044
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
