TrakMotive BM-86054 CV Axle Shaft - Rear
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

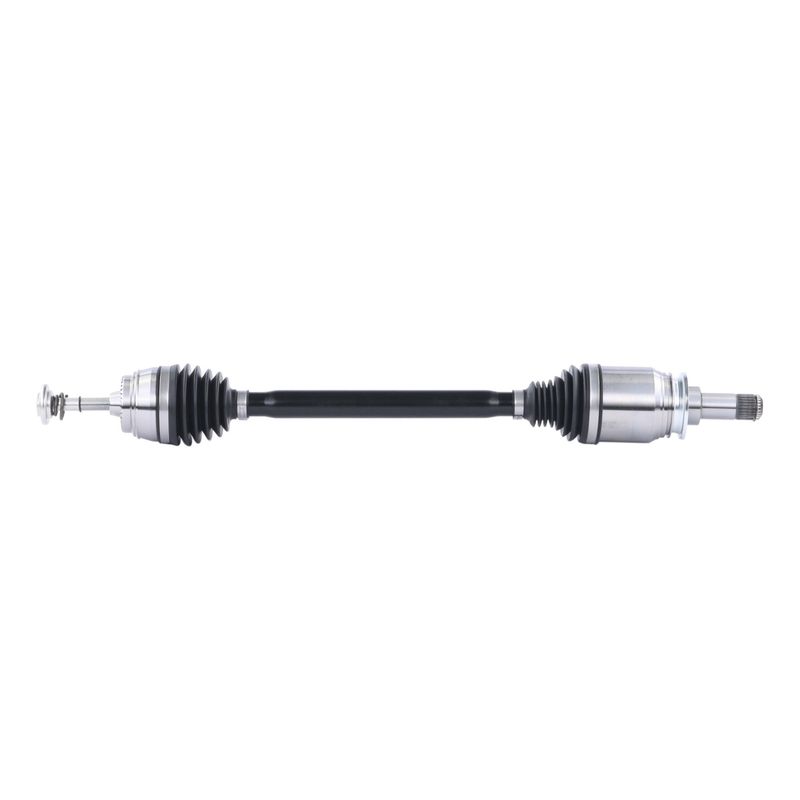

TrakMotive BM-86054 CV Axle Shaft - Rear

Brand TrakMotive BM-86054
Position Rear
ABS Tone Ring Included No
Axle Bolt Hex Size (mm) 17
Axle Bolt Length (mm) 83
Axle Bolt Thread Size M16x1.5
Axle Nut Included No
Inboard Joint Boot Material Thermoplastic
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
Number Of Bolt Holes 1
Number Of Inboard Splines 27
Number Of Outboard Joint Bolt Holes 1
Number Of Outboard Shaft Bolts 1
Number Of Outboard Splines 37
Outboard Joint Boot Material Thermoplastic
Outboard Joint Type Flat spline
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 27.69
Overall Compressed Length (mm) 704
Overall Extended Length (In) 29.81
Overall Extended Length (mm) 758
Product line CV Axle Shaft
Fits BMW · 2 vehicles

OE-style design. Built to preserve original ride quality in the listed application.

Thermoplastic boots. Inboard and outboard joint boots are specified for durability.

Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.

Cross-references TrakMotive BM-86054 for the same application. See all 1.

$309.14Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $309.14
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

CV Axle Shaft for BMW X1

This TrakMotive CV axle shaft is built for rear applications on the BMW X1 and follows an OEM-style layout to preserve original ride quality. Part number BM-86054 is a direct-fit driveline replacement for the listed application.

Key Features

  • Fits 2023-2024 BMW X1, rear.
  • OEM-style axle design for original ride quality.
  • Thermoplastic boots on the inboard and outboard joints.
  • 27 inboard splines and 37 outboard splines for the listed fitment.
  • ABS tone ring not included.
  • Axle bolt uses a 17 mm hex with M16x1.5 thread.

Product Details

TrakMotive BM-86054 is a CV axle shaft for rear installation on the BMW X1, engineered around the listed spline counts, joint styles, and compressed and extended lengths. The male inboard joint, flat spline outboard joint, and spline shaft connections are specified for the exact application shown, helping maintain proper driveline engagement and fitment. If you are replacing a worn BMW X1 rear CV axle, BM-86054 provides the configuration needed for the stated model years.

This part cross-references TrakMotive BM-86054 for the same application.

What It Is Used For

  • Replacing a worn or noisy rear CV axle shaft.
  • Restoring driveline connection in the listed BMW X1 application.
  • Addressing vibration caused by axle wear or joint deterioration.
  • Correcting spline or joint fitment issues on the specified vehicle.

Installation Notes and Quality

Verify axle length, spline count, bolt size, and ABS configuration before installation. This axle is listed for non-ABS applications unless otherwise noted. Part number BM-86054 is backed by a limited lifetime warranty. TrakMotive states that its products are manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.

Related reading

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2024BMWX1AWDRearOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
2023BMWX1AWDRearOEM Style Axle to Retain Original Ride Quality; CV Axle Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — BM-86054
