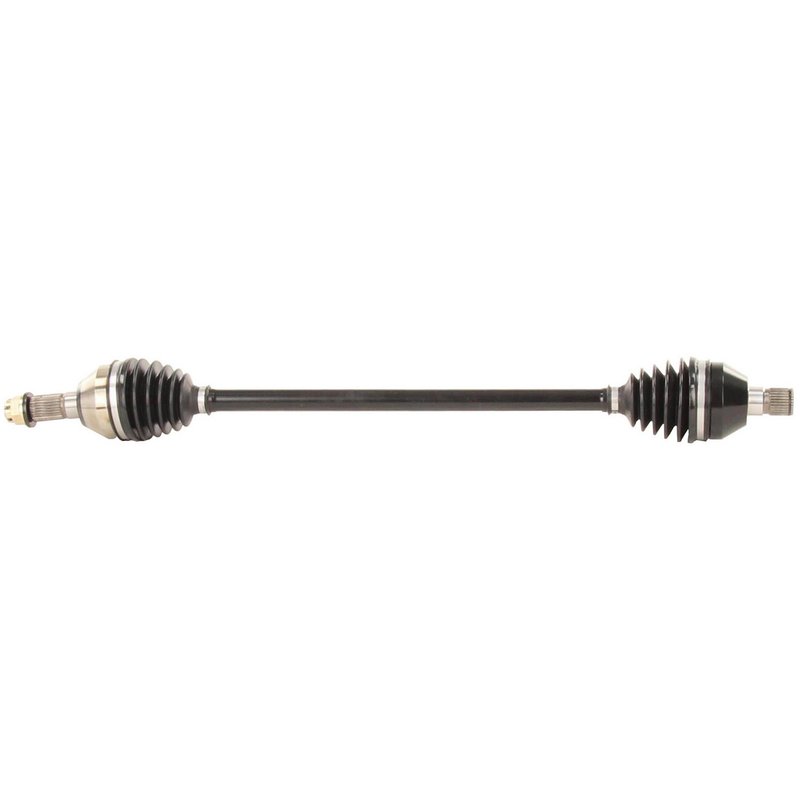

TrakMotive CAN-7057 CV Axle Assembly - Rear, Rear Left or Rear Right
| Brand | TrakMotive CAN-7057 |
|---|---|
| Position | Rear Right, Rear Left, and Rear |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.866141732 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.181102362 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.363859541 |
| Axle Nut Length (mm) | 34.64 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 33.46 |
| Overall Compressed Length (mm) | 850 |
| Product line | ATV CV Axle Assembly |
| Fits | Can-Am · 34 vehicles |
New replacement assembly. Built as a fresh CV axle service part, not remanufactured.
Neoprene boot. Flexible boot material helps protect the joint from contamination.
Limited lifetime warranty. Backed by TrakMotive for added purchase confidence.
Cross-references TrakMotive CAN-7057, 0214-1620 and 8130368 for the same application. See all 5.
Overview
TrakMotive CAN-7057 is a new ATV CV axle assembly for select Can-Am Maverick X3 applications. It is built for rear fitments and uses spline connections, a neoprene boot, and a supplied axle nut for service replacement.
Key Features
- New CV axle assembly for driveline service
- Neoprene boot material for flexible protection
- 30-spline inboard and 29-spline outboard connection design
- Supplied axle nut with M20 x 1.5 thread and cotter pin locking type
- Hex axle nut head with 30 mm hex size
- Limited lifetime warranty from TrakMotive
Detailed Description
TrakMotive CAN-7057 is an ATV CV axle assembly engineered for rear applications on select Can-Am Maverick X3 models. The axle uses a male inboard joint with spline connection, a conventional outboard joint, and an overall compressed length of 33.46 inches to match the listed driveline configuration. CAN-7057 is a new replacement part, not remanufactured, and it is listed with no ABS tone ring included. This part cross-references Monroe Shocks & Struts (e.g., 0214-1620, AX7157) for the same application.
For buyers searching for a Can-Am Maverick X3 rear CV axle assembly, CAN-7057 provides a direct service replacement for multiple 2017-2022 Maverick X3 variants, including standard-duty and Smart-Shox listings where noted. The part number CAN-7057 should be matched to the exact fitment row and notes before installation.
Common Issues This Part Addresses
- Worn or noisy CV joints
- Torn or deteriorated axle boot material
- Vibration during acceleration or load transfer
- Loss of driveline engagement from spline wear
- Axle damage from off-road use or impact
Installation Notes
Verify the vehicle year, model, and rear position against the fitment list before ordering. Some applications are listed with specific notes such as 72-inch width, standard duty, or Smart-Lok/Smart-Shox configurations, so the exact vehicle configuration matters. Confirm axle nut thread size, hex size, and locking style during installation to ensure proper service fitment.
Quality Assurance
TrakMotive lists CAN-7057 with a limited lifetime warranty. The manufacturer also states that its products are produced by an ISO 9001 and TS 16949 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Can-Am | Maverick X3 Max RS Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2022 | Can-Am | Maverick X3 Max X mr Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2022 | Can-Am | Maverick X3 Max X rs Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2022 | Can-Am | Maverick X3 Max X rs Turbo RR Smart-Shox | Rear | 72 In.; ATV CV Axle Assembly |
| 2022 | Can-Am | Maverick X3 X mr Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2022 | Can-Am | Maverick X3 X rc Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2022 | Can-Am | Maverick X3 X rs Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2022 | Can-Am | Maverick X3 X rs Turbo RR Smart-Shox | Rear | 72 In.; ATV CV Axle Assembly |
| 2021 | Can-Am | Maverick X3 Max RS Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2021 | Can-Am | Maverick X3 Max X mr Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2021 | Can-Am | Maverick X3 Max X rs Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2021 | Can-Am | Maverick X3 Max X rs Turbo RR Smart-Shox | Rear | 72 In.; ATV CV Axle Assembly |
| 2021 | Can-Am | Maverick X3 X mr Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2021 | Can-Am | Maverick X3 X rc Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2021 | Can-Am | Maverick X3 X rs Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2021 | Can-Am | Maverick X3 X rs Turbo RR Smart-Shox | Rear | 72 In.; ATV CV Axle Assembly |
| 2020 | Can-Am | Maverick X3 Max RS Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2020 | Can-Am | Maverick X3 Max X mr Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2020 | Can-Am | Maverick X3 Max X rs Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2020 | Can-Am | Maverick X3 X mr Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2020 | Can-Am | Maverick X3 X rc Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2020 | Can-Am | Maverick X3 X rs Turbo RR | Rear | 72 In.; ATV CV Axle Assembly |
| 2019 | Can-Am | Maverick X3 Max X rs Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2019 | Can-Am | Maverick X3 X mr Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2019 | Can-Am | Maverick X3 X rc Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2019 | Can-Am | Maverick X3 X rs Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2018 | Can-Am | Maverick X3 Max X rs Turbo R | Rear Right | Standard Duty; with and without Smart-Lok; ATV CV Axle Assembly |
| 2018 | Can-Am | Maverick X3 Max X rs Turbo R | Rear Left | Standard Duty; with and without Smart-Lok; ATV CV Axle Assembly |
| 2018 | Can-Am | Maverick X3 X mr Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2018 | Can-Am | Maverick X3 X rc Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2018 | Can-Am | Maverick X3 X rs Turbo R | Rear Right | Standard Duty; with and without Smart-Lok; ATV CV Axle Assembly |
| 2018 | Can-Am | Maverick X3 X rs Turbo R | Rear Left | Standard Duty; with and without Smart-Lok; ATV CV Axle Assembly |
| 2017 | Can-Am | Maverick X3 Max X rs Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
| 2017 | Can-Am | Maverick X3 X rs Turbo R | Rear | 72 In.; ATV CV Axle Assembly |
