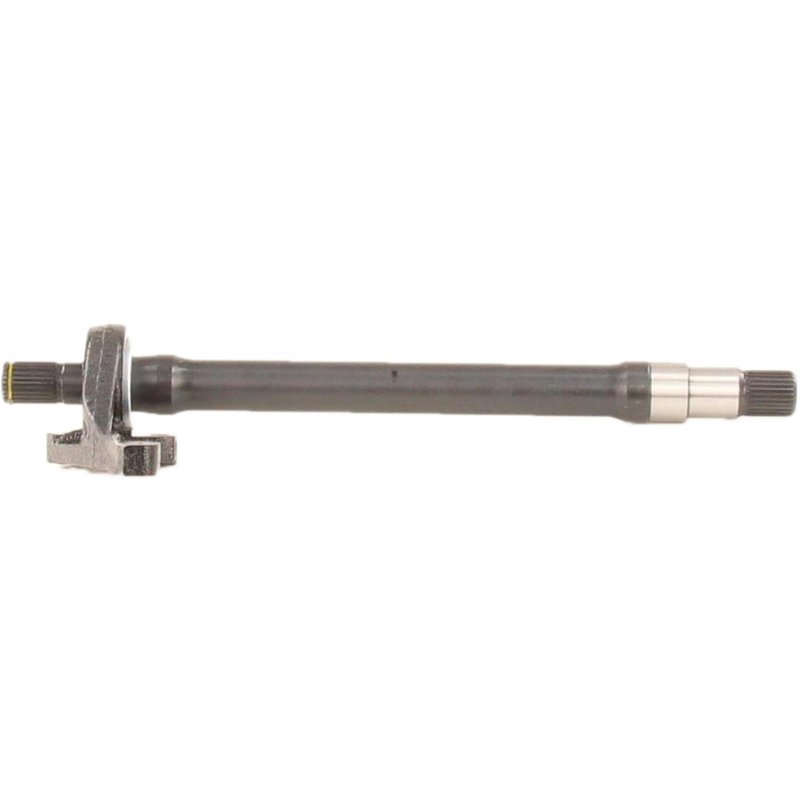

TrakMotive CH-3509 CV Intermediate Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 CV Intermediate Shaft

TrakMotive CH-3509 CV Intermediate Shaft - Front Right

Brand TrakMotive CH-3509
Position Front Right
Boot Material Neoprene
Inboard Joint Type Male
New Or Remanufactured New
Number Of Inboard Splines 27
Number Of Outboard Splines 29
Outboard Joint Type Male
Overall Compressed Length (in) 20.43
Overall Compressed Length (mm) 519
Product line CV Intermediate Shaft
Fits Dodge, Chrysler, and Ram · 39 vehicles

New replacement shaft. Built as a fresh CV intermediate shaft for straightforward service.

Neoprene boot material. Helps resist wear while keeping the joint protected.

ISO certified manufacturing. Produced by a company certified to ISO 9001:2008 and TS 16949:2009.

Cross-references TrakMotive CH-3509 for the same application. See all 1.

$100.24Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $100.24
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Intermediate Shaft options

CV Intermediate Shaft for Front Right Applications

TrakMotive CH-3509 is a new CV intermediate shaft for front right driveline service on select Dodge Grand Caravan, Chrysler Town & Country, and Ram C/V models. It is built with a neoprene boot and male inboard and outboard joint types for direct replacement use in the listed applications.

Key Features

  • New CV intermediate shaft for driveline and axle repair
  • Neoprene boot material for flexible joint protection
  • Male inboard joint type
  • Male outboard joint type
  • 27 inboard splines and 29 outboard splines
  • Overall compressed length: 20.43 in. (519 mm)
  • TrakMotive CH-3509 cross-references to TrakMotive CH-3509 for the same application

Product Details

This TrakMotive CV intermediate shaft is engineered for front right service on 2009 Dodge Grand Caravan, 2011-2017 Dodge Grand Caravan, 2011-2016 Chrysler Town & Country, and 2013-2015 Ram C/V applications. The shaft length, spline counts, and male joint configuration are key identifiers for matching the correct driveline component during replacement. TrakMotive CH-3509 is a direct-fit driveline part for vehicles that use this intermediate shaft layout.

The TrakMotive CV Intermediate Shaft product line focuses on replacement driveline components built for specific vehicle fitments. For buyers searching for a 2011-2016 Chrysler Town & Country front right CV intermediate shaft or a 2011-2017 Dodge Grand Caravan front right intermediate shaft, CH-3509 provides the listed configuration details needed for accurate selection.

Common Problems This Part Can Address

  • Vibration or shudder from a worn intermediate shaft assembly
  • Noise from damaged CV shaft joints or boot failure
  • Driveline looseness caused by spline or joint wear
  • Front right axle support issues on listed minivan applications
  • Replacement needs after corrosion, impact, or high-mileage wear

Installation Notes and Tips

Verify the front right position, spline counts, and compressed length before ordering. Compare the existing shaft to the listed 27 inboard splines, 29 outboard splines, and 20.43-inch overall compressed length to confirm proper application. For best results, inspect related driveline seals, mounts, and adjacent CV components during replacement.

Quality Assurance

TrakMotive states that this part is backed by a limited lifetime warranty and is produced by an ISO 9001:2008 and TS 16949:2009 certified company. Those certifications reflect controlled manufacturing and quality management practices for replacement driveline parts.

Related reading

This part fits 39 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeLitersCylindersPositionNotes
2020DodgeGrand Caravan————Front RightStandard Duty Replacement; CV Intermediate Shaft
2019DodgeGrand Caravan——3.6LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2018DodgeGrand Caravan——3.6LV6Front RightStandard Duty Replacement; CV Intermediate Shaft
2017DodgeGrand CaravanSXT———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2017DodgeGrand CaravanSE———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2016ChryslerTown & Country————Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2016DodgeGrand CaravanSXT———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2016DodgeGrand CaravanSE———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2016DodgeGrand CaravanR/T———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2015ChryslerTown & Country————Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2015DodgeGrand CaravanSXT———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2015DodgeGrand CaravanSE———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2015DodgeGrand CaravanR/T———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2015RamC/V—FWD——Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2014ChryslerTown & Country————Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2014DodgeGrand CaravanSXT———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2014DodgeGrand CaravanSE———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2014DodgeGrand CaravanR/T———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2014DodgeGrand CaravanCrew———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2014RamC/V—FWD——Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2013ChryslerTown & Country————Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2013DodgeGrand CaravanSXT———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2013DodgeGrand CaravanSE———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2013DodgeGrand CaravanR/T———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2013DodgeGrand CaravanCrew———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2013RamC/V—FWD——Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2012ChryslerTown & Country————Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2012DodgeGrand CaravanSXT———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2012DodgeGrand CaravanSE———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2012DodgeGrand CaravanR/T———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2012DodgeGrand CaravanCrew———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2011ChryslerTown & Country————Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2011DodgeGrand CaravanSXT———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2011DodgeGrand CaravanR/T———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2011DodgeGrand CaravanMainstreet———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2011DodgeGrand CaravanExpress———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2011DodgeGrand CaravanCrew———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2011DodgeGrand CaravanC/V———Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
2009DodgeGrand CaravanSEFWD3.3LV6Front RightCompatible with CV Intermediate Shaft.; CV Intermediate Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — CH-3509
