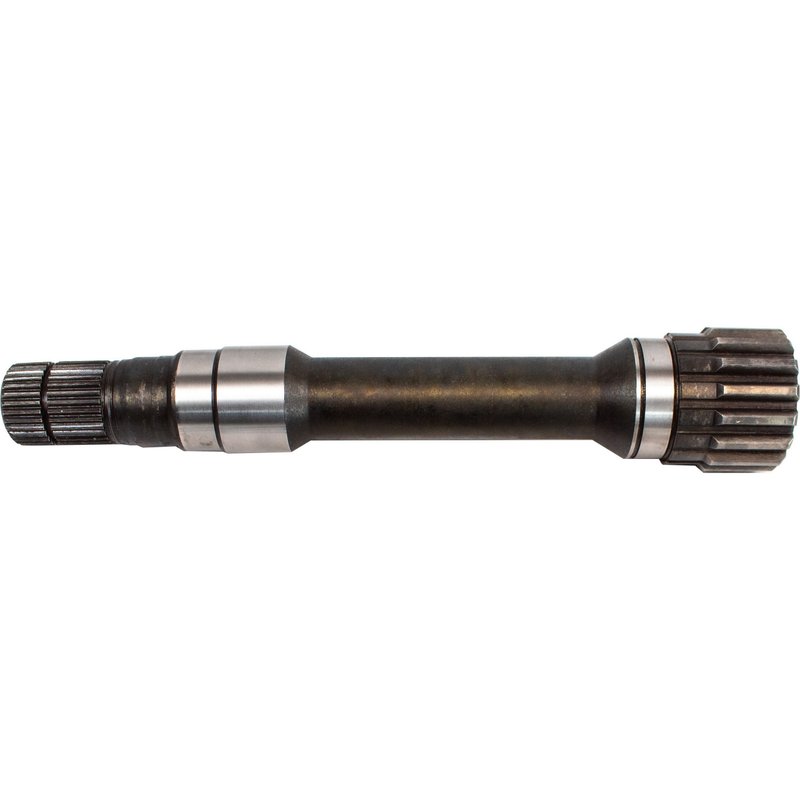

TrakMotive CH-3511RK CV Intermediate Shaft - Front Right
| Brand | TrakMotive CH-3511RK |
|---|---|
| Position | Front Right |
| Axle Nut Included | No |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 16 |
| Overall Compressed Length (in) | 11.44 |
| Overall Compressed Length (mm) | 291 |
| Product line | CV Intermediate Shaft |
| Fits | Ram · 10 vehicles |
Premium-grade design. Built as a CV intermediate shaft for driveline service and replacement.
Spline-matched fit. Uses 29 inboard splines and 16 outboard splines for the listed application.
Quality certified. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references Dorman - OE Solutions 630-446, TrakMotive CH-3511RK and NEX12005 for the same application. See all 3.
Overview
The TrakMotive CH-3511RK CV intermediate shaft is a premium driveline replacement for select Ram 1500 applications. It is built for front right fitment and follows the shaft dimensions and spline counts needed for the listed applications.
Compatible With Ram 1500 models from 2012-2021, including Classic Style 5-lug wheel applications and 2021 vehicles through 03/14/21. The CH-3511RK is a direct-fit driveline component for restoring proper axle shaft operation.
Key Features
- Premium-grade CV intermediate shaft for driveline service
- 11.44 in. overall compressed length for the specified application
- 29 inboard splines and 16 outboard splines
- No axle nut included
- TrakMotive CH-3511RK part number for catalog matching
Detailed Description
The TrakMotive CH-3511RK is a CV intermediate shaft engineered for Ram 1500 front right applications listed in the fitment data. It is specified with 29 inboard splines, 16 outboard splines, and an overall compressed length of 11.44 inches, helping ensure the shaft matches the required driveline geometry for the vehicle configuration.
This part cross-references Dorman - OE Solutions 630-446 for the same application. The CH-3511RK is a practical replacement choice when servicing a worn or damaged CV intermediate shaft on Ram 1500 models, including 2012-2018 trucks that require front differential disassembly and 2019-2020 Classic Style 5-lug wheel applications.
What It Is Used For
- Replacing a worn CV intermediate shaft
- Addressing driveline vibration or noise related to shaft wear
- Restoring proper spline engagement in the driveline assembly
- Servicing front right axle shaft applications on the listed Ram 1500 models
Installation Notes
Fits 2012-2018 Ram 1500, front right; professional installation is recommended and front differential disassembly is required. Fits 2019-2020 Ram 1500, front right; Classic Style 5-lug wheel applications. Fits 2021 Ram 1500, front right; through 03/14/21. Verify spline count, compressed length, and vehicle configuration before installation.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this part. The company is ISO 9001:2008 and TS 16949:2009 certified, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2021 | Ram | 1500 | — | Front Right | Thru 03/14/21; CV Intermediate Shaft |
| 2020 | Ram | 1500 | — | Front Right | Classic Style (5 Lug Wheel); CV Intermediate Shaft |
| 2019 | Ram | 1500 | — | Front Right | Classic Style (5 Lug Wheel); CV Intermediate Shaft |
| 2018 | Ram | 1500 | 4WD | Front Right | Professional Installation Recommended, Requires Disassembly of Front Differential; CV Intermediate Shaft |
| 2017 | Ram | 1500 | 4WD | Front Right | Professional Installation Recommended, Requires Disassembly of Front Differential; CV Intermediate Shaft |
| 2016 | Ram | 1500 | 4WD | Front Right | Professional Installation Recommended, Requires Disassembly of Front Differential; CV Intermediate Shaft |
| 2015 | Ram | 1500 | 4WD | Front Right | Professional Installation Recommended, Requires Disassembly of Front Differential; CV Intermediate Shaft |
| 2014 | Ram | 1500 | 4WD | Front Right | Professional Installation Recommended, Requires Disassembly of Front Differential; CV Intermediate Shaft |
| 2013 | Ram | 1500 | 4WD | Front Right | Professional Installation Recommended, Requires Disassembly of Front Differential; CV Intermediate Shaft |
| 2012 | Ram | 1500 | 4WD | Front Right | Professional Installation Recommended, Requires Disassembly of Front Differential; CV Intermediate Shaft |
