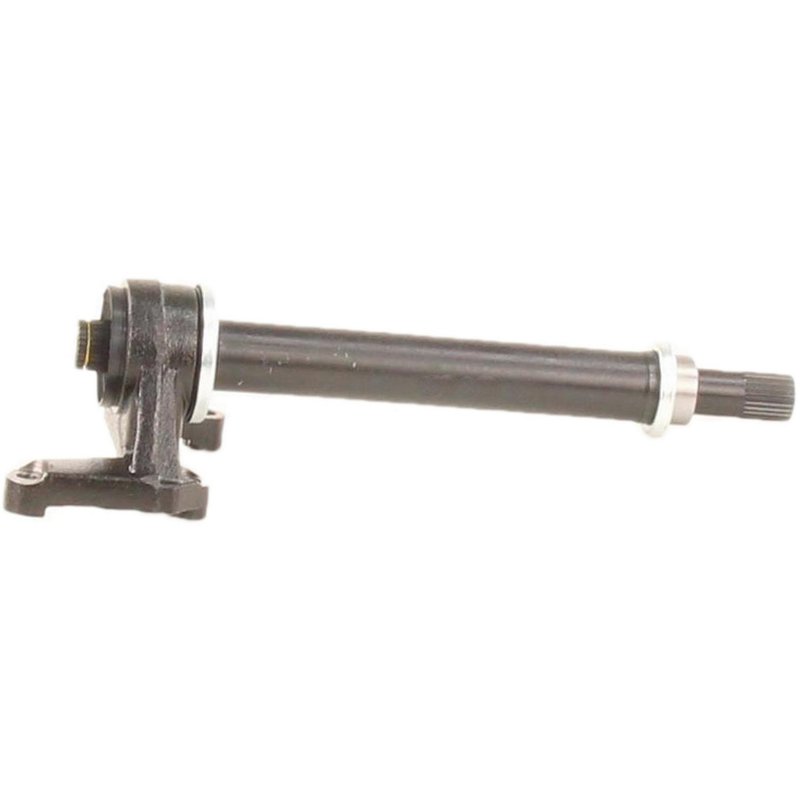

TrakMotive CH-3512 CV Intermediate Shaft - Front Right

Overview of the TrakMotive CV Intermediate Shaft CH-3512

The TrakMotive CV Intermediate Shaft CH-3512 is designed for reliable driveline performance in select Dodge and Jeep vehicles. Engineered as a new replacement part, it ensures proper fit and function for models like the Dodge Caliber, Jeep Compass, and Jeep Patriot.

• Brand: TrakMotive
• Brand Line: CV Intermediate Shaft
• Part Number: CH-3512
• Compatible Makes: Dodge, Jeep
• Compatible Models: Caliber, Compass, Patriot
• Overall Compressed Length: 34.65 inches (404 mm)
• Inboard Shaft Connection Style: Spline with 28 splines
• Outboard Shaft Connection Style: Spline with 27 splines
• Abs Tone Ring Included: No
• Axle Nut Included: No
• Condition: New

About the CV Intermediate Shaft Product Line

The TrakMotive CV Intermediate Shaft product line focuses on delivering precise driveline components that maintain the integrity of constant velocity joints and axle assemblies. This CV Intermediate Shaft is engineered to meet OEM specifications, providing a direct replacement that supports smooth power transfer and vehicle stability for compatible Dodge and Jeep models.

Detailed Product Description

This CV Intermediate Shaft (part number CH-3512) features a spline connection style on both the inboard and outboard shafts, with 28 and 27 splines respectively. The overall compressed length measures 34.65 inches (404 mm), ensuring proper alignment and fit within the driveline assembly. It does not include an ABS tone ring or axle nut, so these components must be sourced separately if required. Manufactured new, this shaft is designed to restore driveline function and reduce vibrations or noise caused by worn or damaged intermediate shafts.

Common Applications and Issues Addressed

• Replacement for worn or damaged CV intermediate shafts in Dodge Caliber, Jeep Compass, and Jeep Patriot
• Eliminates driveline vibrations and noise caused by shaft wear
• Restores proper spline engagement for smooth power transfer
• Addresses axle shaft misalignment issues
• Prevents premature wear of CV joints and related components

Installation Notes and Tips

• Verify spline counts (28 inboard, 27 outboard) to ensure compatibility
• Check overall compressed length (34.65 inches) against the original shaft
• ABS tone ring and axle nut are not included; reuse existing parts or purchase separately
• Properly torque axle nut to manufacturer specifications during installation
• Inspect surrounding CV joints and boots for wear during replacement

Quality Assurance and Warranty

The TrakMotive CV Intermediate Shaft CH-3512 is manufactured to meet or exceed OEM standards for durability and fitment. As a new component, it undergoes quality control inspections to ensure reliable performance. Warranty coverage details should be confirmed with the parts provider or manufacturer.
