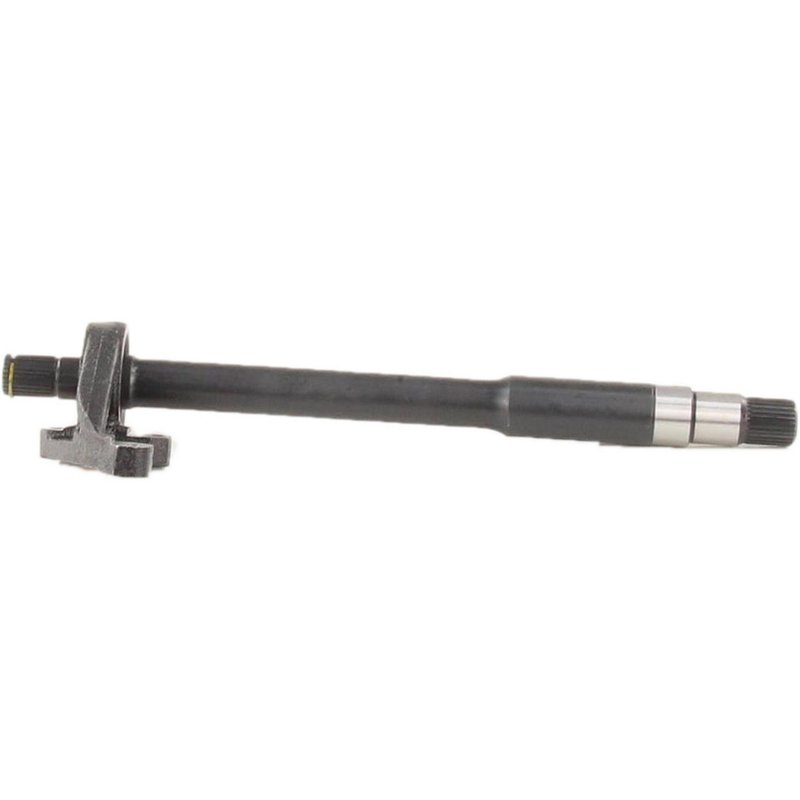

TrakMotive CH-3513 CV Intermediate Shaft - Front Right

Overview of TrakMotive CV Intermediate Shaft CH-3513

The TrakMotive CV Intermediate Shaft CH-3513 is a new replacement part designed for select Chrysler, Dodge, and Ram vehicles. Engineered to meet precise specifications, this CV intermediate shaft ensures reliable driveline performance for models like the Avenger, Journey, and ProMaster series.

• New CV Intermediate Shaft from TrakMotive
• 29 inboard splines and 28 outboard splines for secure fitment
• Overall compressed length of 20.33 inches (516.5 mm)
• Compatible with Chrysler, Dodge, and Ram vehicles including Avenger, Journey, ProMaster 1500, 2500, and 3500
• Part number CH-3513 for accurate identification

TrakMotive CV Intermediate Shaft Product Line Details

The TrakMotive CV Intermediate Shaft product line focuses on delivering precise driveline components that maintain factory specifications. This line includes shafts designed to provide proper spline engagement and length to ensure smooth power transfer and reduce driveline vibrations. The CH-3513 model is part of this line, offering a direct replacement solution for vehicles requiring a 29 inboard spline and 28 outboard spline configuration with a compressed length of 20.33 inches.

Technical Specifications and Features

The CH-3513 CV Intermediate Shaft features 29 inboard splines and 28 outboard splines, which are critical for proper engagement with the transmission and axle components. Its overall compressed length measures 20.33 inches (516.5 mm), ensuring compatibility with the driveline geometry of the specified vehicles. This shaft is manufactured new, providing a reliable alternative to remanufactured parts.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV intermediate shafts in Chrysler Avenger and Dodge Journey models
• Restores driveline stability in Ram ProMaster 1500, 2500, and 3500 vehicles
• Eliminates vibrations caused by spline wear or shaft length inconsistencies
• Resolves clicking or clunking noises during acceleration or turns
• Prevents driveline binding and uneven power transfer

Installation Notes and Tips

• Verify spline counts (29 inboard, 28 outboard) before installation to ensure compatibility
• Measure compressed length to confirm fit with existing driveline components
• Use proper torque specifications when securing the shaft to avoid premature wear
• Inspect related CV joints and seals during installation for comprehensive driveline maintenance

Quality Assurance and Warranty

The TrakMotive CV Intermediate Shaft CH-3513 is manufactured to meet OEM standards for fit and function. As a new part, it offers consistent quality and durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Chrysler, Dodge, and Ram vehicles.
