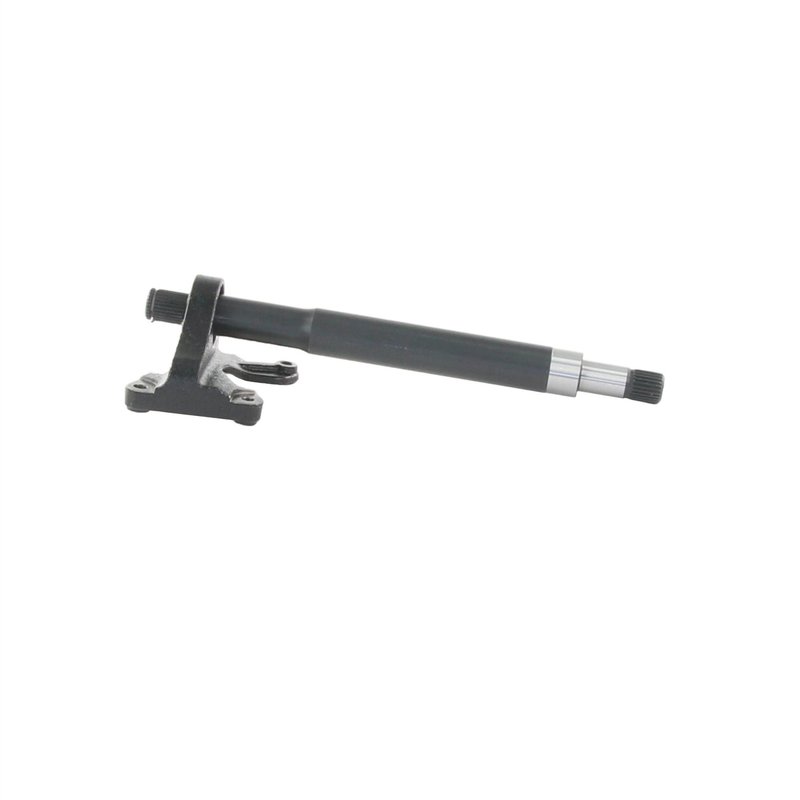

TrakMotive CH-3519 CV Intermediate Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 CV Intermediate Shaft

TrakMotive CH-3519 CV Intermediate Shaft - Front Right

Brand TrakMotive CH-3519
Position Front Right
Axle Nut Included No
Grade Type Premium
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 25
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 28
Overall Compressed Length (in) 17.69
Overall Compressed Length (mm) 449
Product line CV Intermediate Shaft
Fits Dodge · 11 vehicles

Premium grade. Built as a CV intermediate shaft for dependable driveline service.

25 and 28 splines. Precise spline counts help ensure a secure, accurate fit.

ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.

Cross-references TrakMotive CH-3519 for the same application. See all 1.

$94.52Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $94.52
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Intermediate Shaft options

CV Intermediate Shaft for Dodge Journey

TrakMotive CH-3519 is a premium CV intermediate shaft for the front right position on select 2009-2019 Dodge Journey models. Built for driveline service work, it supports smooth power transfer in standard duty replacement applications.

Key Features

  • Premium-grade CV intermediate shaft for front right installation
  • 25 inboard splines and 28 outboard splines for the specified application
  • Overall compressed length: 17.69 in. (449 mm)
  • Axle nut not included
  • Fits non-ABS applications unless otherwise noted by the vehicle application
  • ISO 9001:2008 and TS 16949:2009 certified manufacturing

Product Details

TrakMotive CH-3519 is part of the CV Intermediate Shaft line, a driveline-focused product line built for replacement use in CV component service. This shaft is engineered for the front right side of the Dodge Journey and matches the listed spline count and compressed length for proper fitment. If you are replacing a worn Dodge Journey CV intermediate shaft, CH-3519 provides a direct-match service part for the confirmed application.

This part cross-references TrakMotive CH-3519 for the same application.

Common Problems It Can Help Solve

  • Clicking, vibration, or driveline noise from a worn intermediate shaft
  • Excessive play caused by spline wear
  • Uneven power delivery to the front right driveline
  • Service replacement for a damaged or corroded CV intermediate shaft
  • Fitment correction after removal of a failed original shaft

Installation Notes and Tips

  • Fits 2009-2019 Dodge Journey, front right.
  • Verify spline count, compressed length, and position before installation.
  • Confirm whether the vehicle is equipped for a non-ABS application when matching the shaft.
  • Inspect related seals, bearings, and mating components during service.

Quality Assurance

TrakMotive manufactures this CV intermediate shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. The part is backed by a limited lifetime warranty.

Related reading

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
2019DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2018DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2017DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2016DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2015DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2014DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2013DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2012DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2011DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2010DodgeJourney—2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
2009DodgeJourneyFWD2.4LL4Front RightStandard Duty Replacement; CV Intermediate Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — CH-3519
