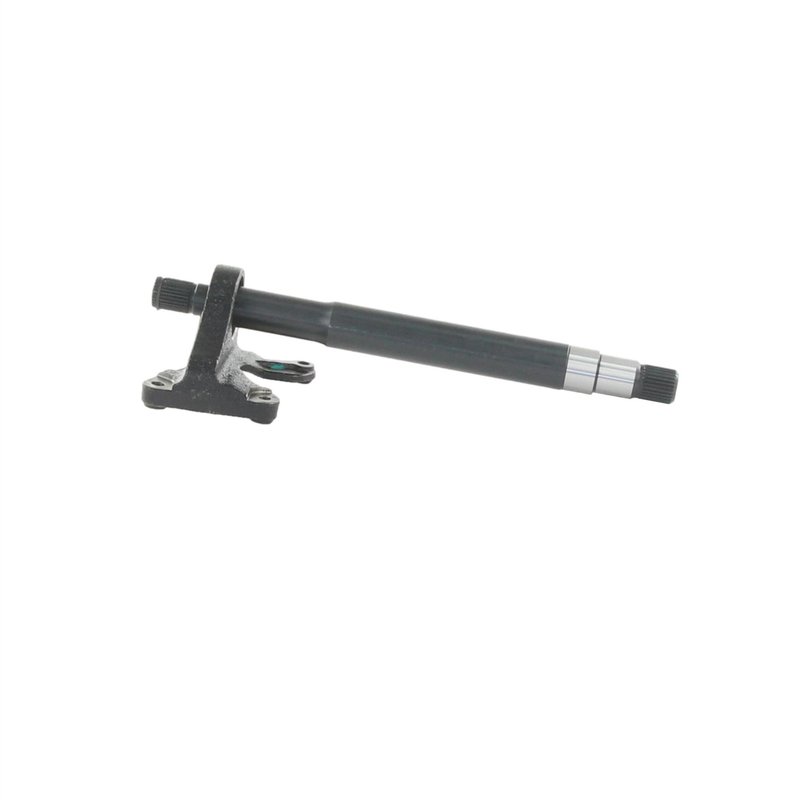

TrakMotive CH-3520 CV Intermediate Shaft - Front Right
| Brand | TrakMotive CH-3520 |
|---|---|
| Position | Front Right |
| Axle Nut Included | No |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Overall Compressed Length (in) | 18.06 |
| Overall Compressed Length (mm) | 460 |
| Product line | CV Intermediate Shaft |
| Fits | Chrysler and Dodge · 8 vehicles |
Premium grade. A CV intermediate shaft built for dependable driveline service.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Limited lifetime warranty. Backed by long-term coverage from TrakMotive.
Cross-references TrakMotive CH-3520 for the same application. See all 1.
CV Intermediate Shaft for Chrysler and Dodge
TrakMotive CH-3520 is a premium CV intermediate shaft for front right applications on select Chrysler and Dodge vehicles. It is built for 2011-2014 Chrysler 200 and 2011-2014 Dodge Avenger models, with fitment focused on standard duty replacement needs.
Key Features
- Premium-grade CV intermediate shaft for driveline service
- Front right position application
- 29 inboard splines and 28 outboard splines
- Overall compressed length: 18.06 in. (460 mm)
- No axle nut included
- TrakMotive CH-3520 direct replacement part number
Product Details
The TrakMotive CV Intermediate Shaft, part number CH-3520, is engineered for driveline repair where the intermediate shaft must transfer power smoothly between the transaxle and the front right side of the vehicle. This premium replacement is listed for 2011-2014 Chrysler 200, front right, and 2011-2014 Dodge Avenger, front right. The shaft measures 18.06 inches compressed and uses 29 inboard splines and 28 outboard splines for application-specific fitment.
TrakMotive positions this CV intermediate shaft within its CV Intermediate Shaft product line for driveline and axle service. The brand notes ISO 9001:2008 and TS 16949:2009 certification, and this part is backed by a limited lifetime warranty.
This part cross-references TrakMotive CH-3520 for the same application.
Common Problems This Part Can Address
- Vibration or shudder from a worn intermediate shaft
- Noise during acceleration from driveline wear
- Uneven power transfer to the front right side
- Excessive play caused by spline or shaft wear
- Replacement needs after CV driveline damage
Installation Notes and Tips
Verify spline count, compressed length, and front right position before installation. Confirm vehicle application by year, make, and model for Chrysler 200 or Dodge Avenger. Inspect related driveline components, seals, and mounting points during service to help ensure proper operation after replacement.
Quality Assurance
TrakMotive manufactures this CV intermediate shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. The CH-3520 includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Chrysler | 200 | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2014 | Dodge | Avenger | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2013 | Chrysler | 200 | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2013 | Dodge | Avenger | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2012 | Chrysler | 200 | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2012 | Dodge | Avenger | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2011 | Chrysler | 200 | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
| 2011 | Dodge | Avenger | 2.4L | L4 | Front Right | Standard Duty Replacement; CV Intermediate Shaft |
