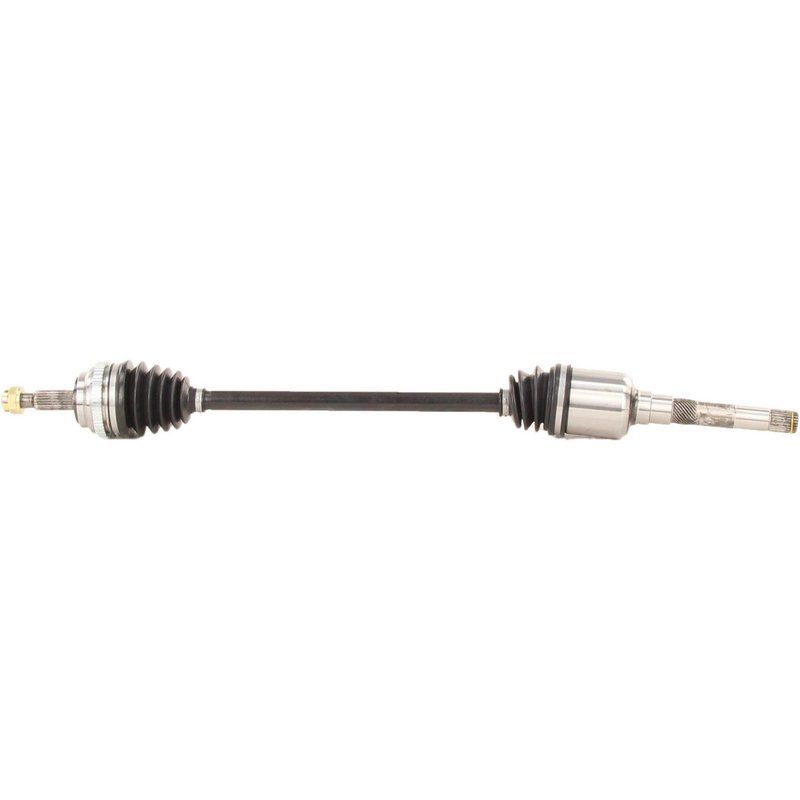

TrakMotive CH-8015 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8015

The TrakMotive CV Axle Shaft CH-8015 is engineered for reliable driveline performance in Dodge and Plymouth Neon vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Dodge and Plymouth Neon models
• Includes ABS tone ring with 56 toothed ring teeth
• Neoprene boot material for enhanced joint protection
• Comes with a hex head axle nut featuring cotter pin locking
• Overall compressed length of 37.05 inches (941 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This CV Axle Shaft line includes features such as ABS tone rings and durable neoprene boots to maintain proper wheel speed sensor function and protect the joint from contaminants. The CH-8015 model exemplifies this line’s commitment to fitment accuracy and component integrity.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 25 splines and a conventional outboard joint with 23 splines, ensuring secure shaft connections. The included ABS tone ring has 56 teeth and a toothed design to interface with the vehicle’s ABS system. The axle nut is a hex head type measuring 30 mm across flats, 22 mm in height, and 34.6 mm in length, with an M20x1.5 thread size and cotter pin locking for secure installation. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Dodge Neon and Plymouth Neon
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8015, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the sensor to maintain accurate wheel speed readings. Inspect the neoprene boots for any damage during installation to ensure joint protection. This part is designed for direct replacement on compatible Dodge and Plymouth Neon models.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8015 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment.
