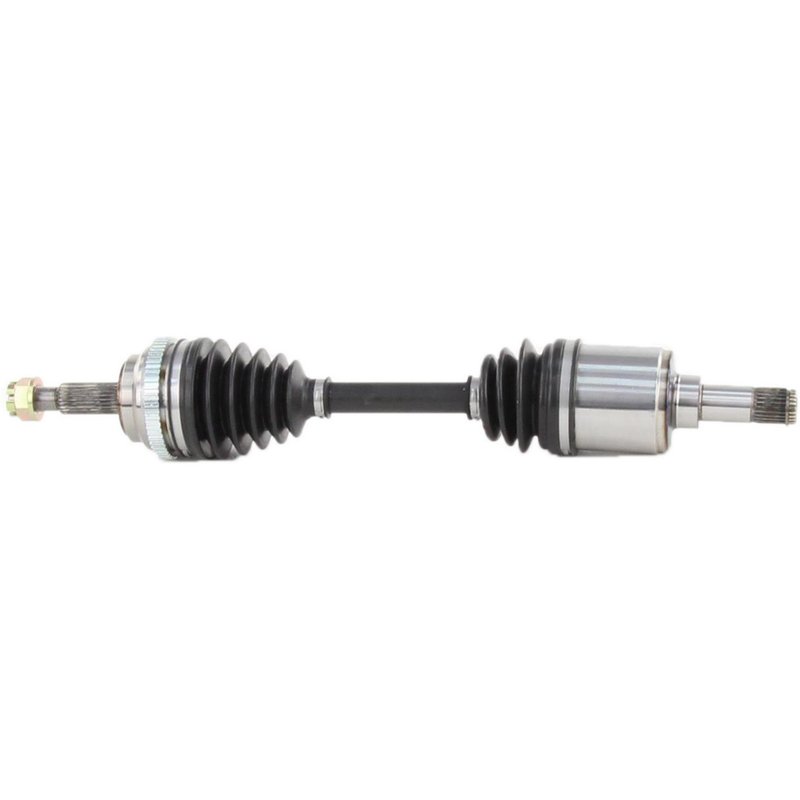

TrakMotive CH-8016 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft CH-8016

The TrakMotive CV Axle Shaft CH-8016 is engineered for reliable driveline performance in Dodge and Plymouth Neon vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Dodge and Plymouth Neon models
• Includes a neoprene boot for enhanced joint protection
• Equipped with a 56-tooth ABS ring and included tone ring
• Features a hex head axle nut with cotter pin locking
• Overall compressed length of 23.07 inches (586 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components designed to meet OEM specifications. This line emphasizes durability and precise engineering, including features such as ABS tone rings and secure axle nut designs. The CH-8016 model exemplifies these standards with its robust construction and compatibility with specific vehicle applications.

Technical Specifications and Features

This CV axle shaft includes a 56-tooth toothed ABS ring with an included tone ring, which supports accurate wheel speed sensor readings for ABS systems. The axle nut is a hex head type measuring 30 mm (1 1/6 inch) across flats, with a height of 22 mm (6/7 inch) and a length of 34.6 mm (1 1/3 inch). It uses an M20 x 1.5 thread size and secures with a cotter pin locking mechanism to prevent loosening during operation. The neoprene boot material provides resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint features a male connection style with 25 splines, while the outboard joint is conventional with 23 splines. The overall compressed length of the shaft is 23.07 inches (586 mm), ensuring proper fitment in compatible vehicles.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Dodge and Plymouth Neon
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with cotter pin locked axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8016, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to maintain locking integrity. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boot for any damage during installation to prevent premature failure. This part is designed for direct replacement on compatible Dodge and Plymouth Neon models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8016 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes an ABS tone ring and a secure locking axle nut to ensure reliable operation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support long-term driveline performance.
