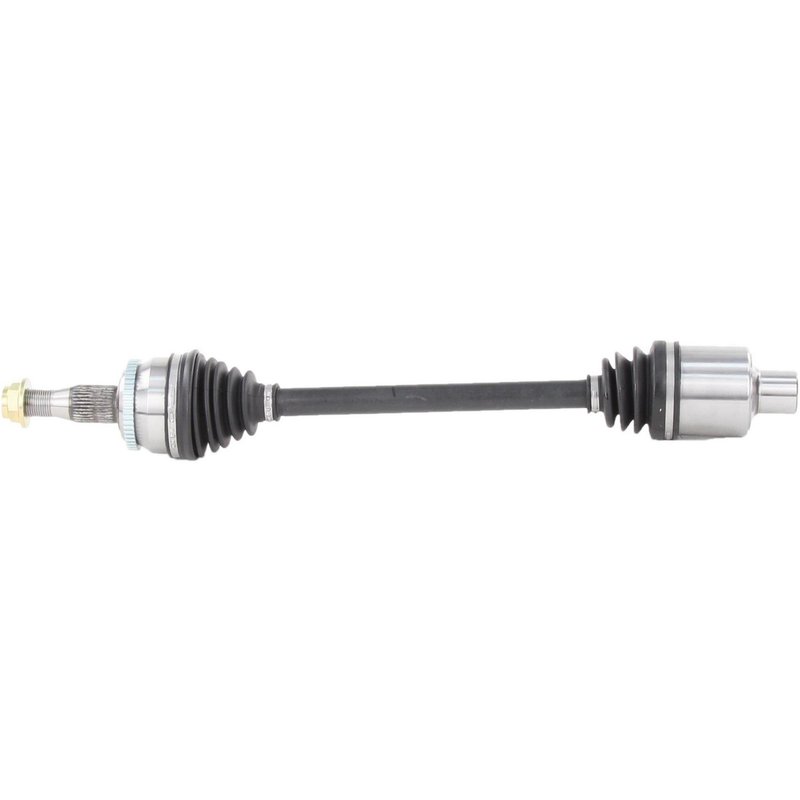

TrakMotive CH-8018 CV Axle Shaft - Front Left

Overview of the TrakMotive CV Axle Shaft CH-8018

The TrakMotive CV Axle Shaft CH-8018 is engineered for reliable driveline performance in select Chrysler and Dodge vehicles. Designed specifically for models like the 300M, Concorde, Intrepid, and LHS, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Chrysler 300M, Concorde, Intrepid, and LHS
• Includes a self-locking hex axle nut (M27*2 thread size)
• Neoprene boot material for enhanced joint protection
• ABS tone ring included with 50 toothed ring count
• Overall compressed length of 27.24 inches (692 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to meet OEM specifications. This line emphasizes precise engineering, including features like female inboard joint connections and conventional outboard joints, to ensure compatibility and performance in driveline systems. The CH-8018 model exemplifies these standards with its robust construction and included hardware.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 27 splines and a conventional outboard joint with 33 splines, providing secure shaft connections. The included ABS tone ring has 50 teeth and a toothed design, which supports accurate wheel speed sensor readings. The axle nut is a self-locking hex type, measuring 1 2/7 inches (32.8 mm) across the flats, with a height of 6/7 inches (22 mm) and a length of 1 1/2 inches (37.9 mm). The neoprene boot material offers resistance to wear and environmental factors, helping to maintain joint integrity over time.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chrysler 300M, Concorde, Intrepid, and LHS
• Addresses issues with axle vibration or clicking noises during turns
• Resolves ABS sensor errors related to damaged or missing tone rings
• Fixes grease leaks caused by torn or degraded CV boots
• Improves driveline stability and smoothness in affected vehicles

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the axle nut thread size (M27*2) matches the vehicle specifications. Use the included self-locking hex axle nut and torque it to manufacturer-recommended specifications. Inspect the ABS tone ring and sensor alignment during installation to maintain proper ABS function. It is recommended to replace axle components in pairs to maintain balanced driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8018 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment accuracy.
