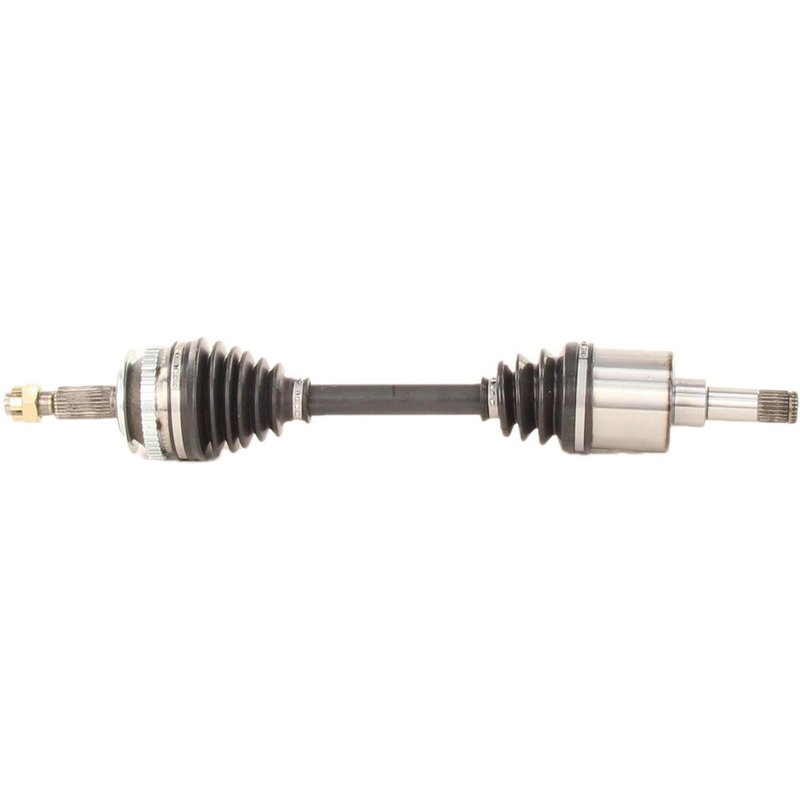

TrakMotive CH-8019 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-8019 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.43 |
| Overall Compressed Length (mm) | 620.5 |
| Product line | CV Axle Shaft |
| Fits | Chrysler, Dodge, and Plymouth · 52 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service replacement.
Neoprene boot. Helps resist wear while keeping the joint protected and flexible.
ABS tone ring included. Toothed ring is included for applications that use ABS sensing.
Cross-references BBB Industries 8247, Cardone New 66-3234 and Cardone Reman 60-3234 for the same application. See all 25.
CV Axle Shaft for Chrysler and Dodge Front Left
TrakMotive CH-8019 is a new CV axle shaft for front left applications on select Chrysler, Dodge, and Plymouth vehicles. It is built with a neoprene boot, a toothed ABS ring with 46 teeth, and includes the axle nut for the specified application.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8019
- New axle shaft for front left driveline service
- Neoprene boot material for CV joint protection
- ABS tone ring included with 46-tooth toothed ring
- Male inboard shaft connection and conventional outboard connection
- Overall compressed length: 24.43 in. (620.5 mm)
- Axle nut included: M22 x 1.5 thread, 32 mm hex, cotter pin locking type
- ISO 9001:1007 and TS 16949:2009 certified manufacturing
Detailed Description
TrakMotive CH-8019 is a front left CV axle shaft engineered for select Chrysler Cirrus, Chrysler Sebring, Dodge Stratus, Plymouth Breeze, and Dodge Colt applications. This axle shaft is specified with 25 inboard splines, 26 outboard splines, a male inboard joint, and a conventional outboard joint, making it a direct-fit driveline replacement for the listed vehicles. The included ABS tone ring and toothed ring design support ABS-equipped applications, while the axle nut specification helps match the original service requirements. This part cross-references Cardone New 66-3234 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged CV boot
- ABS warning concerns related to a failed tone ring or axle sensor interface
- Excessive drivetrain play from a worn front left axle shaft
Installation Notes and Tips
Verify spline count, axle length, and ABS configuration before installation. This axle is listed for front left positions and includes fitment for 1998-2006 Chrysler Cirrus, 1999-2005 Chrysler Sebring, 1998-2005 Dodge Stratus, 1998-2000 Plymouth Breeze, and 1984 Dodge Colt. Fits 1998-2006 Chrysler Cirrus, front left. Fits 1999-2005 Chrysler Sebring, front left. Fits 1998-2005 Dodge Stratus, front left. Fits 1998-2000 Plymouth Breeze, front left. Fits 1984 Dodge Colt, front left. Use the correct axle nut torque and follow vehicle service procedures for hub and suspension components.
Quality Assurance
TrakMotive identifies this axle shaft as a new part backed by a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certified company standards.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2006 | Chrysler | Cirrus | LXi | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2006 | Dodge | Stratus | — | Sedan | — | — | 2.7L | V6 | Front Left | CV Axle Shaft |
| 2006 | Dodge | Stratus | — | Sedan | — | — | 2.4L | L4 | Front Left | CV Axle Shaft |
| 2006 | Dodge | Stratus | — | Sedan | — | — | 2.0L | L4 | Front Left | CV Axle Shaft |
| 2005 | Chrysler | Cirrus | LXi | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2005 | Chrysler | Sebring | — | Sedan | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2005 | Chrysler | Sebring | — | Convertible | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2005 | Chrysler | Sebring | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2005 | Chrysler | Sebring | — | Convertible | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2005 | Dodge | Stratus | — | Sedan | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2005 | Dodge | Stratus | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2005 | Dodge | Stratus | — | Sedan | — | — | 2.0L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2004 | Chrysler | Cirrus | LXi | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2004 | Chrysler | Sebring | — | Sedan | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2004 | Chrysler | Sebring | — | Convertible | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2004 | Chrysler | Sebring | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2004 | Dodge | Stratus | — | Sedan | — | Automatic | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2004 | Dodge | Stratus | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2004 | Dodge | Stratus | — | Sedan | — | — | 2.0L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2003 | Chrysler | Cirrus | LXi | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2003 | Chrysler | Sebring | — | Sedan | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2003 | Chrysler | Sebring | — | Convertible | — | Automatic | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2003 | Chrysler | Sebring | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2003 | Dodge | Stratus | — | Sedan | — | Automatic | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2003 | Dodge | Stratus | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2002 | Chrysler | Cirrus | LXi | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2002 | Chrysler | Sebring | — | Sedan | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2002 | Chrysler | Sebring | — | Convertible | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2002 | Chrysler | Sebring | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2002 | Chrysler | Sebring | — | Convertible | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2002 | Dodge | Stratus | — | Sedan | — | Automatic | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2002 | Dodge | Stratus | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2001 | Chrysler | Cirrus | LXi | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2001 | Chrysler | Sebring | — | Sedan | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2001 | Chrysler | Sebring | — | Convertible | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2001 | Chrysler | Sebring | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2001 | Chrysler | Sebring | — | Convertible | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2001 | Dodge | Stratus | — | Sedan | — | — | 2.7L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 2001 | Dodge | Stratus | — | Sedan | — | — | 2.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 2000 | Chrysler | Cirrus | — | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2000 | Chrysler | Sebring | — | Convertible | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2000 | Dodge | Stratus | — | Sedan | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 2000 | Plymouth | Breeze | — | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 1999 | Chrysler | Cirrus | — | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 1999 | Chrysler | Sebring | JXi | Convertible | — | — | 2.5L | V6 | Front Left | w/ ABS; CV Axle Shaft |
| 1999 | Dodge | Stratus | — | Sedan | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 1999 | Plymouth | Breeze | — | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 1998 | Chrysler | Cirrus | — | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 1998 | Dodge | Stratus | — | Sedan | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 1998 | Plymouth | Breeze | — | — | — | — | — | — | Front Left | w/ ABS; CV Axle Shaft |
| 1984 | Dodge | Colt | DL | Hatchback | FWD | Manual | 1.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
| 1984 | Dodge | Colt | DL | Hatchback | FWD | — | 1.4L | L4 | Front Left | w/ ABS; CV Axle Shaft |
