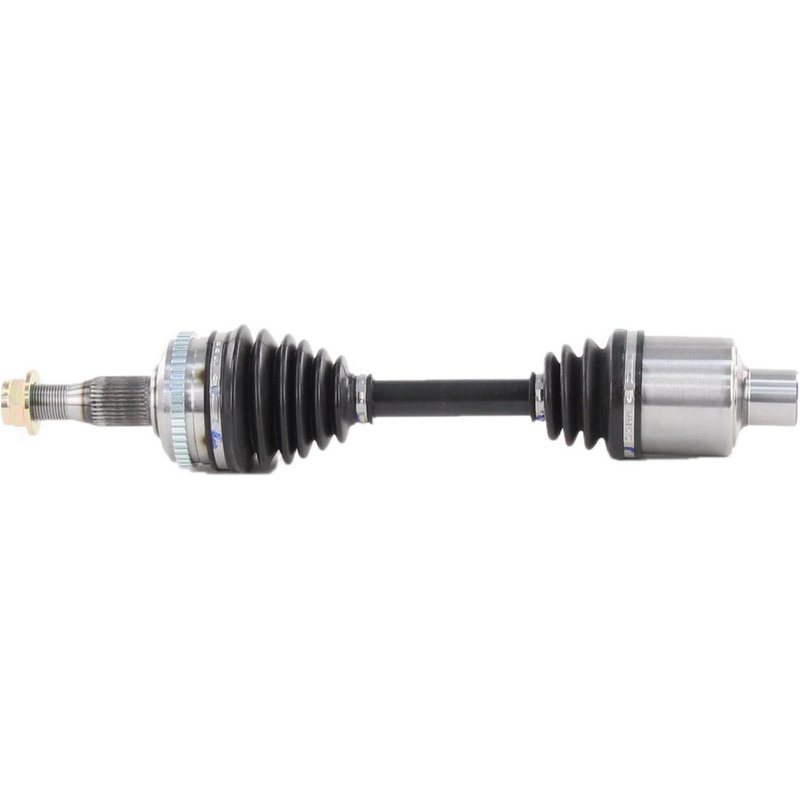

TrakMotive CH-8020 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8020 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 50 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.14 |
| Overall Compressed Length (mm) | 537 |
| Product line | CV Axle Shaft |
| Fits | Chrysler, Dodge, and Eagle · 11 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references Anchor 8714, Cardone New 66-3188 and Cardone Reman 60-3188 for the same application. See all 23.
CV Axle Shaft for Chrysler and Dodge Front Right
TrakMotive CH-8020 is a new CV axle shaft for front right applications on select Chrysler and Dodge vehicles. It is built with a neoprene boot, a 27-spline inboard connection, a 33-spline outboard connection, and an included axle nut for the specified fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8020
- New axle shaft for front right driveline service
- Inboard joint type: female
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 50-tooth toothed ring
- Axle nut included, M27 x 2 thread, self-locking
- Overall compressed length: 21.14 in. (537 mm)
Product Details
This TrakMotive CV axle shaft is engineered for front right replacement on 1994-2001 Chrysler LHS, Chrysler Concorde, Chrysler Intrepid, Dodge Intrepid, and Chrysler New Yorker applications listed below. The CH-8020 uses a female inboard connection and a conventional outboard joint, with 27 inboard splines and 33 outboard splines for the specified driveline setup. TrakMotive identifies this axle as an ABS-equipped design that can be used in non-ABS applications unless otherwise noted.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. For shoppers searching for a front right CV axle shaft for Chrysler LHS or a Chrysler Intrepid CV axle replacement, CH-8020 provides the fitment and dimensional details needed for a confident match.
This part cross-references Cardone New 66-3188 and National 410102 for the same application.
What This Part Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or imbalanced axle shaft
- Grease leakage from a deteriorated axle boot
- ABS warning concerns related to a worn tone ring assembly
- Driveline noise from excessive axle play or spline wear
Installation Notes and Tips
- Verify front right position, spline count, and compressed length before installation.
- Confirm axle nut thread size and hex size match the vehicle specification.
- Inspect hub, bearing, and seal surfaces before installing the new axle shaft.
- Use the included axle nut only when it matches the vehicle application.
- Check ABS sensor and tone ring alignment after installation on ABS-equipped vehicles.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
- Fits 2001 Chrysler LHS, front right
- Fits 1996-1997 Chrysler LHS, front right
- Fits 1996-1997 Chrysler Concorde, front right
- Fits 1996-1997 Chrysler Intrepid, front right
- Fits 1996-1997 Dodge Intrepid, front right
- Fits 1996 Chrysler New Yorker, front right
- Fits 1994 Chrysler New Yorker, front right
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Chrysler | LHS | Front Right | CV Axle Shaft |
| 1997 | Chrysler | Concorde | Front Right | CV Axle Shaft |
| 1997 | Chrysler | Intrepid | Front Right | CV Axle Shaft |
| 1997 | Chrysler | LHS | Front Right | CV Axle Shaft |
| 1997 | Dodge | Intrepid | Front Right | CV Axle Shaft |
| 1996 | Chrysler | Concorde | Front Right | CV Axle Shaft |
| 1996 | Chrysler | Intrepid | Front Right | CV Axle Shaft |
| 1996 | Chrysler | LHS | Front Right | CV Axle Shaft |
| 1996 | Chrysler | New Yorker | Front Right | CV Axle Shaft |
| 1996 | Dodge | Intrepid | Front Right | CV Axle Shaft |
| 1994 | Chrysler | New Yorker | Front Right | CV Axle Shaft |
