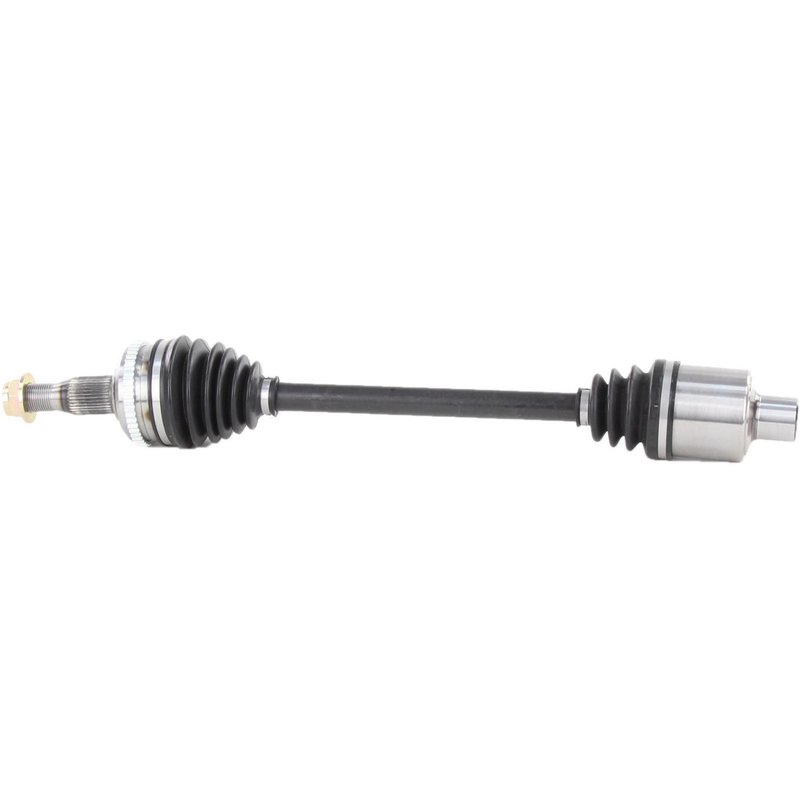

TrakMotive CH-8021 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft CH-8021

The TrakMotive CV Axle Shaft CH-8021 is engineered for reliable driveline performance in select Chrysler and Dodge vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and durability for models like the Chrysler Concorde, Dodge Intrepid, LHS, and New Yorker.

• Compatible with Chrysler Concorde, Dodge Intrepid, LHS, and New Yorker
• Includes ABS tone ring with 50 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a self-locking hex axle nut (M27*2 thread size) included for secure installation
• Overall compressed length of 27.24 inches (692 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to restore driveline integrity. This line emphasizes compatibility with factory specifications, including proper spline counts and joint types, to ensure smooth rotational movement and long service life. The CH-8021 model incorporates a female inboard joint and a conventional outboard joint, aligning with the original equipment design for the specified Chrysler and Dodge vehicles.

Technical Specifications and Features

This CV axle shaft features a 50-tooth ABS ring with a toothed design, which is included to maintain accurate ABS sensor readings. The neoprene boot material provides resistance to wear and environmental factors, protecting the internal joints. The inboard joint uses a female connection style with 27 splines, while the outboard joint is conventional with 33 splines, matching the factory setup. The included axle nut is a 32.8 mm (1 2/7 inch) hex head, 22 mm (6/7 inch) in height, with a self-locking mechanism and M27*2 thread size, ensuring secure fastening during installation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts causing vibration or noise
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates grease leaks by replacing torn or degraded neoprene boots
• Addresses driveline binding or clicking during turns due to joint wear
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8021, verify compatibility with your vehicle’s make and model, specifically Chrysler Concorde, Dodge Intrepid, LHS, or New Yorker. Use the included self-locking hex axle nut to secure the shaft, tightening to manufacturer torque specifications. Inspect the ABS tone ring alignment to ensure proper sensor operation. It is recommended to replace axle nuts and boots as a set to maintain driveline integrity and prevent premature failure.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8021 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes rigorous quality control to ensure durability and fitment accuracy. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
