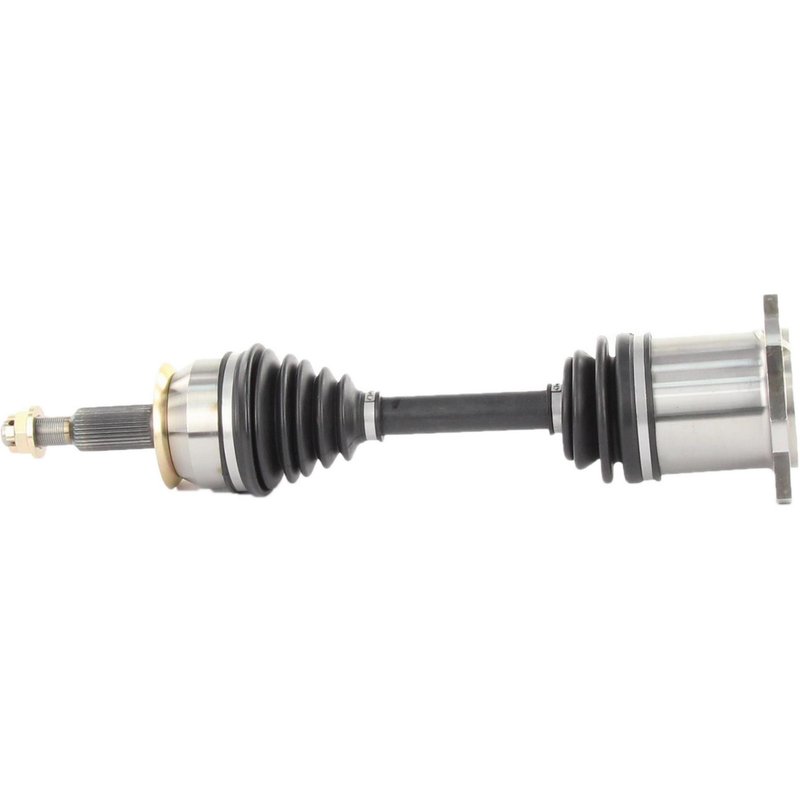

TrakMotive CH-8022 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft CH-8022

The TrakMotive CV Axle Shaft CH-8022 is designed specifically for Dodge Dakota and Durango models, providing reliable driveline performance. This new axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Dodge Dakota and Durango
• Includes axle nut with cotter pin locking type
• Neoprene boot material for enhanced joint protection
• 31 outboard splines with conventional joint type
• Overall compressed length of 20.35 inches (517 mm)
• Hex head axle nut, 30 mm hex size, 21 mm height
• Inboard joint flange connection style

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fit and function. This line emphasizes durable materials such as neoprene boots and includes necessary hardware like axle nuts with cotter pin locking to ensure secure installation. The CH-8022 model exemplifies these standards, tailored for specific Dodge models to maintain driveline integrity.

Technical Specifications and Features

The CH-8022 axle shaft features a neoprene boot that offers resistance to wear and environmental factors, protecting the CV joints from contaminants. The inboard joint uses a flange connection style, while the outboard joint is conventional, providing reliable power transfer. The included axle nut is a hex head type with a 30 mm hex size and a height of 21 mm, secured by a cotter pin locking mechanism to prevent loosening during operation. The axle shaft has 31 outboard splines and an overall compressed length of 20.35 inches (517 mm), ensuring compatibility with the specified Dodge Dakota and Durango models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Dodge Dakota and Durango
• Eliminates clicking or popping noises during turns caused by failing CV joints
• Resolves vibration or shuddering issues related to axle shaft wear
• Addresses grease leakage from torn or damaged CV boots
• Restores driveline stability and smooth power delivery

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8022, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Inspect the axle shaft splines and joint connections for proper engagement. The neoprene boot should be checked for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Dodge Dakota and Durango models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8022 is a new, not remanufactured, component built to meet OEM standards. It includes the axle nut and features durable materials such as neoprene boots for extended service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment.
