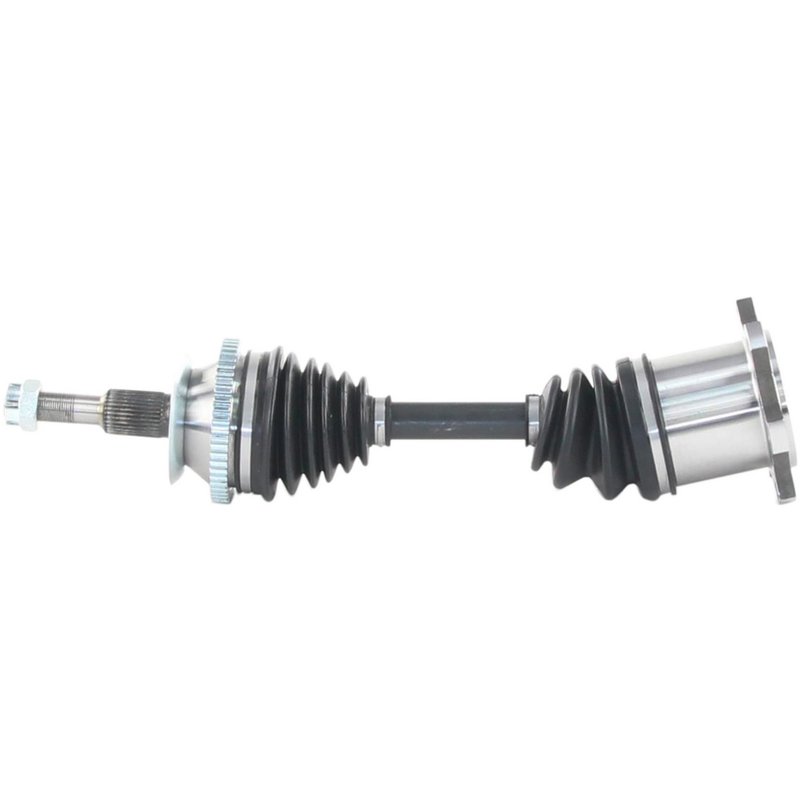

TrakMotive CH-8028 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft CH-8028 for Dodge Dakota

The TrakMotive CV Axle Shaft CH-8028 is engineered specifically for Dodge Dakota models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Dodge Dakota vehicles
• Includes ABS tone ring with 56 toothed abs ring teeth
• Neoprene boot material for enhanced durability and protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 18.8 inches (477.6 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features new CV axle shafts built with precision flange and conventional joint types to ensure smooth power transfer and long service life. The CH-8028 model includes a flange-style inboard joint and a conventional outboard joint, making it suitable for specific Dodge Dakota applications.

Technical Specifications and Features

The CH-8028 CV axle shaft includes a 56-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The included ABS tone ring supports anti-lock braking system functionality. The axle nut is a hex head type measuring 1 1/6 inches (30 mm) across flats, with a height of 21 mm (5/6 inch) and a length of 34.6 mm (1 1/3 inch). It features an M22x1.5 thread size and uses a cotter pin locking type for secure installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joint from contaminants. The inboard shaft connects via a flange style, while the outboard shaft uses a conventional connection with 31 splines.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Dodge Dakota
• Restores proper ABS sensor function with included tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boots
• Ensures secure wheel attachment with included hex axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CH-8028 CV axle shaft, ensure the ABS tone ring is properly aligned with the wheel speed sensor for accurate ABS operation. Use the included hex axle nut and cotter pin to secure the axle shaft firmly. Verify that the flange and conventional joint connections are seated correctly to avoid driveline vibrations. It is recommended to inspect related suspension and steering components during installation for overall system integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive products undergo rigorous quality control to ensure durability and performance. Please refer to the manufacturer’s warranty documentation for specific coverage details.
