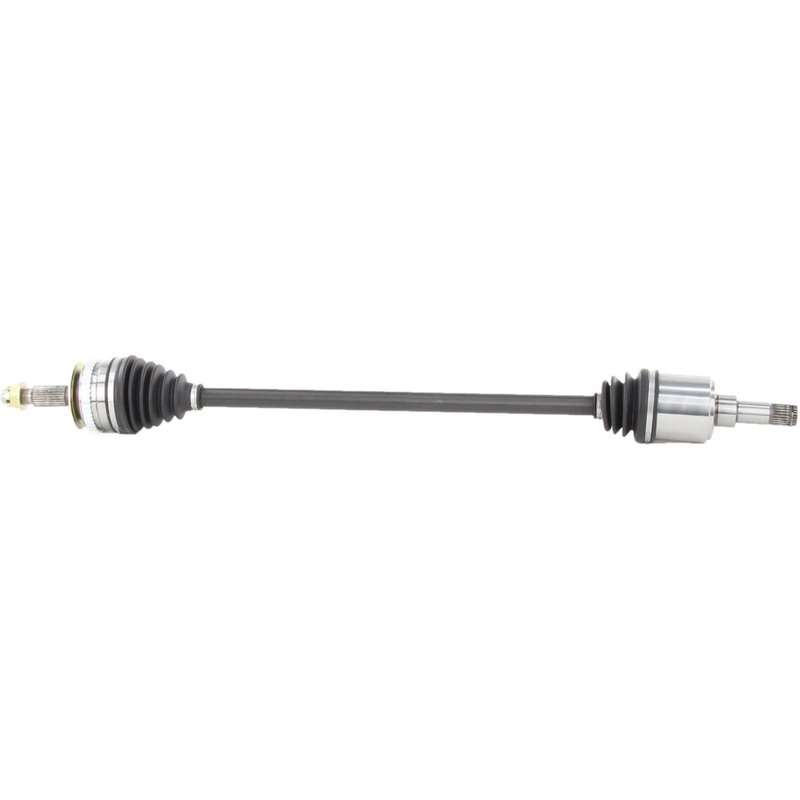

TrakMotive CH-8029 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8029

The TrakMotive CV Axle Shaft CH-8029 is designed for reliable driveline performance in Chrysler, Dodge, and Plymouth vehicles. This new CV axle shaft is engineered to meet the specific requirements of models like the Breeze, Cirrus, Sebring, and Stratus, ensuring proper fit and function.

• Compatible with Chrysler, Dodge, and Plymouth Breeze, Cirrus, Sebring, and Stratus
• Includes a neoprene boot for durability and protection
• Equipped with a 46-tooth ABS ring and toothed ABS tone ring included
• Axle nut with hex head, cotter pin locking type, and M22*1.5 thread size included
• Overall compressed length of 38.8 inches (985.6 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored for specific vehicle applications. The CH-8029 model features a male inboard joint and conventional outboard joint, designed to maintain smooth power transfer and reduce vibration. This product line emphasizes compatibility and durability, with components like neoprene boots and ABS tone rings integrated to support vehicle safety and performance.

Technical Specifications and Features

The CH-8029 CV axle shaft includes a 46-tooth ABS ring with a toothed design, which works in conjunction with the included ABS tone ring to provide accurate wheel speed data for ABS systems. The axle nut is a hex head type measuring 1 1/6 inches (30 mm) across flats, with a height of 21 mm (5/6 inch) and a length of 34.6 mm (1 1/3 inch). It features a cotter pin locking mechanism and an M22*1.5 thread size to ensure secure installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a male connection style with 25 splines, while the outboard joint is conventional with 26 splines, providing a precise fit for the specified vehicle models.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chrysler Breeze, Dodge Cirrus, Plymouth Sebring, and Dodge Stratus
• Addresses issues such as axle vibration, clicking noises during turns, and grease leakage from torn boots
• Restores proper ABS sensor function with included ABS tone ring
• Prevents axle nut loosening with cotter pin locking design
• Improves driveline reliability and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8029, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Inspect the neoprene boot for any damage before installation to maintain joint protection. Verify spline counts and joint types match the vehicle’s original equipment to ensure proper fitment. It is recommended to replace axle nuts and cotter pins with new components during installation for safety and reliability.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8029 is a new, remanufactured-quality component designed to meet OEM standards for fit and function. It includes all necessary hardware such as the axle nut and ABS tone ring to facilitate a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in compatible Chrysler, Dodge, and Plymouth vehicles.
