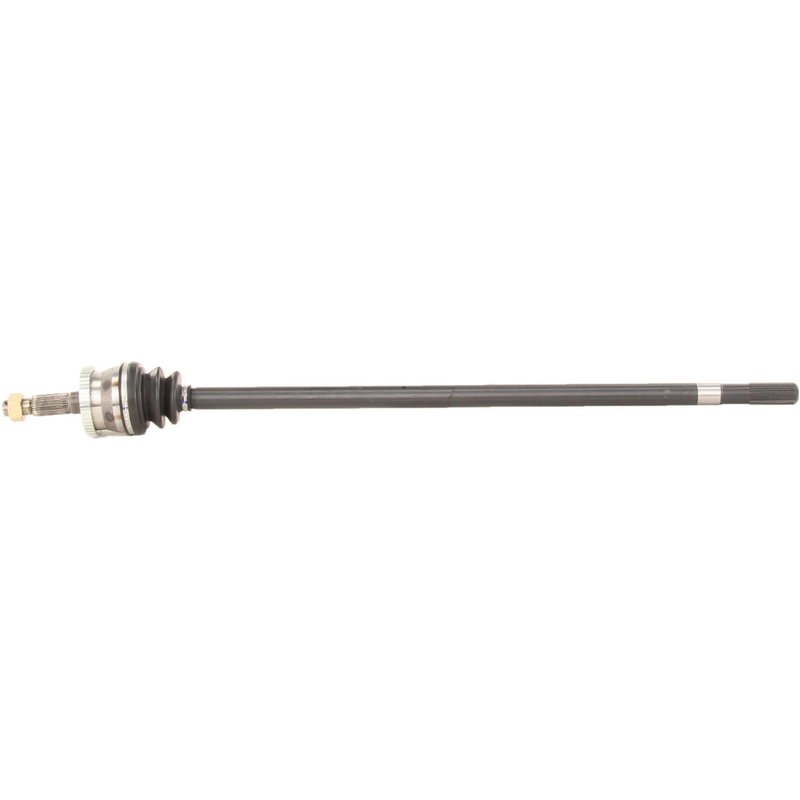

TrakMotive CH-8032 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8032 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 41.1 |
| Overall Compressed Length (mm) | 1044 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 11 vehicles |
New part. Built as a fresh replacement CV axle shaft.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Uses a toothed ring with 48 teeth for ABS applications.
Cross-references AMS Automotive 4910, Anchor 9116 and Cardone New 66-3301 for the same application. See all 24.
Front Right CV Axle Shaft for Grand Cherokee
TrakMotive CH-8032 is a new CV axle shaft for the front right position on 1999-2004 Jeep Grand Cherokee models with Quadra-Drive (Full Time, Vari-Lok). It is built for direct driveline replacement where a worn axle can cause vibration, clicking, or loss of smooth power transfer.
Key Features
- Fits 1999-2004 Jeep Grand Cherokee, front right
- New CV axle shaft from TrakMotive
- 27 inboard splines and 27 outboard splines
- Conventional outboard joint and shaft connection style
- Neoprene boot material for axle boot durability
- Includes ABS tone ring with 48-tooth toothed ring
- Axle nut included with M24 x 1.5 thread size
- Overall compressed length: 41.1 in. (1044 mm)
Product Details
The TrakMotive CV Axle Shaft brand line focuses on driveline replacement parts built for direct-fit service. Part number CH-8032 is engineered for the front right side of the Jeep Grand Cherokee and matches the listed spline count, ABS tone ring configuration, and axle nut specifications for the application. This makes it a practical replacement for a worn or damaged axle in Quadra-Drive-equipped vehicles.
This part cross-references Cardone New 66-3301 and Anchor 9116 for the same application. Search terms such as Jeep Grand Cherokee front right CV axle shaft, 1999-2004 Grand Cherokee axle replacement, and TrakMotive CH-8032 help identify the correct driveline component for this vehicle.
Common Problems This Part Can Address
- Clicking or popping noises during turns
- Vibration from a worn or unbalanced axle assembly
- Grease leakage from a damaged CV boot
- Driveline play caused by worn CV joints
- ABS warning concerns related to a damaged tone ring assembly
Installation Notes and Tips
Verify front right fitment, spline count, axle nut thread size, and ABS tone ring configuration before installation. Confirm that the vehicle is equipped with Quadra-Drive (Full Time, Vari-Lok) as listed for this application. Inspect the hub, seals, and mating components for wear before installing the new axle shaft.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for this replacement part.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | AWD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2003 | Jeep | Grand Cherokee | AWD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2003 | Jeep | Grand Cherokee | 4WD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2002 | Jeep | Grand Cherokee | AWD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2002 | Jeep | Grand Cherokee | 4WD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2001 | Jeep | Grand Cherokee | AWD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2001 | Jeep | Grand Cherokee | 4WD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2000 | Jeep | Grand Cherokee | AWD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2000 | Jeep | Grand Cherokee | 4WD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 1999 | Jeep | Grand Cherokee | AWD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 1999 | Jeep | Grand Cherokee | 4WD | Front Right | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
