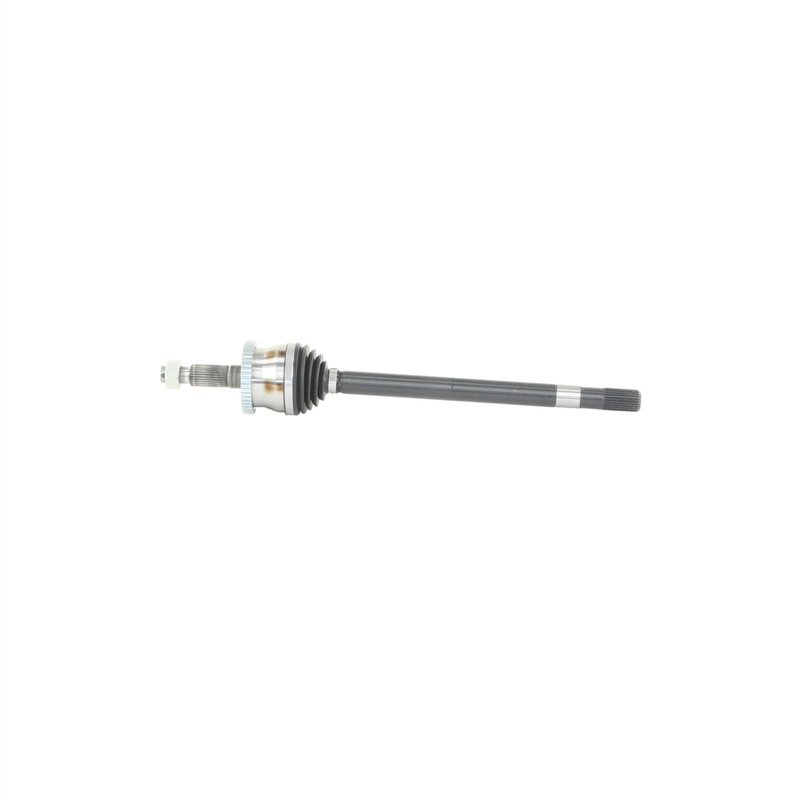

TrakMotive CH-8033HDX CV Axle Shaft - Front Left
| Brand | TrakMotive CH-8033HDX |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.375 |
| Overall Compressed Length (mm) | 619 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Extreme climate design. Premium 7023B grease and TPE boots help maintain OE performance in hot or cold conditions.
OE performance. Built to maintain original-equipment operation with premium materials and construction.
Complete axle shaft. Includes the axle nut and ABS tone ring for a more complete replacement.
Cross-references GSP NCV82010 and TrakMotive CH-8033HDX for the same application. See all 2.
Extreme Climate CV Axle for Grand Cherokee
TrakMotive CH-8033HDX is a front left CV axle shaft for 1999-2004 Jeep Grand Cherokee applications. It is built for OE-style driveline service and uses premium 7023B grease with TPE boots to help maintain performance across extreme temperature swings.
The TrakMotive Extreme Climate CV Axle Shaft line is engineered for demanding weather conditions, with materials selected to stay consistent at temperatures as low as -50°C and as high as +50°C. For Jeep Grand Cherokee front axle service, CH-8033HDX provides the fitment and component details needed for a direct replacement.
- Fits 1999-2004 Jeep Grand Cherokee, front left
- TrakMotive Extreme Climate CV Axle Shaft line
- Premium 7023B grease for temperature-stable lubrication
- TPE boots engineered for extreme hot and cold conditions
- 27 inboard splines and 27 outboard splines
- 48-tooth ABS ring with included tone ring
- Overall compressed length: 24.375 in. (619 mm)
- Includes axle nut with M24x1.5 thread, 35 mm hex size
CH-8033HDX is a front left CV axle shaft for the 1999-2004 Jeep Grand Cherokee, with a conventional outboard joint and spline-style shaft connection. The axle includes a toothed ABS ring and tone ring, making it a practical replacement when servicing ABS-equipped driveline systems. This part cross-references GSP NCV82010 for the same application.
- Front-end vibration caused by a worn or damaged CV axle
- Clicking or popping during turns from joint wear
- ABS warning concerns related to a damaged tone ring or sensor interface
- Boot cracking or grease loss from temperature-related deterioration
- Driveline noise after axle spline or joint wear
Installation notes: verify front left position, spline count, ABS ring count, and overall compressed length before installation. Confirm axle nut thread size, hex size, and vehicle configuration match the original part. Not for use with lifted or modified suspensions.
Quality assurance: TrakMotive’s Extreme Climate CV Axles use premium grease and thermoplastic boot materials selected to maintain OE performance across severe temperature ranges.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2003 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2002 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2001 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2000 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 1999 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
